条件に該当する製品147件
-

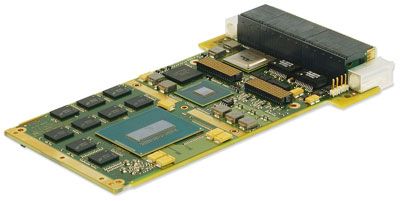

SBC326
Abaco Systems （旧GE Intelligent Platforms） Intel OpenVPX 防衛・3U OpenVPX SBC ・4th Generation Intel Core i7 processor @ up to 2.4 GHz ・Mobile Intel Express Chipset ・Up to 16 GB of DDR3 SDRAM w/ECC and up to 32 GB NAND Flash ・Rear IO: ・Up to 3 Gigabit Ethernet Ports ・1x DVI / HDMI as standard (plus an additional DVI/HDMI port on some variants) ・1x SATA 6 Gb/s port as standard (plus additional two SATA 6 Gb/s ports on some variants) ・2x COM ports ・2x USB 2.0 ports (plus an additional USB 3.0 port on some variants) ・Audio (available on some variants) ・Up to 6x GPIO ・XMC site (x8 PCIe Gen 3 capable) ・Air and Conduction cooled versions ・AXIS and Comprehensive Deployed Test Software and OS support ・Download our Ruggedization Levels guide (also available from the Downloads tab)
-
SBC325
Abaco Systems （旧GE Intelligent Platforms） Intel OpenVPX 防衛・3U OpenVPX SBC ・Intel 3rd Generation Core i7 processor @ up to 2.1 GHz ・Mobile Intel Express Chipset ・Up to 8 GB of DDR3 SDRAM w/ECC ・Up to 32 GB NAND Flash ・On-board XMC with IO expansion site ・Air and Conduction cooled versions ・Comprehensive Deployed Test Software ・Comprehensive OS support
-
SBC324
Abaco Systems （旧GE Intelligent Platforms） Intel OpenVPX 防衛・3U OpenVPX SBC ・Intel 2nd Generation Core i7 processor @ up to 2.5 GHz ・Mobile Intel QM67 Express Chipset ・Up to 8 GB of DDR3 SDRAM w/ECC ・Up to 32 GB NAND Flash ・On-board XMC with IO expansion site ・Air and Conduction cooled versions ・Comprehensive Deployed Test Software ・Comprehensive OS support
-
SBC312
Abaco Systems （旧GE Intelligent Platforms） CPUボード OpenVPX 防衛・Dual-channel DDR3 (up to 4 GB) ・Up to 512 MB NOR Flash ・Up to 4 GB NAND Flash ・512 kB MRAM (non-volatile storage) ・Two x4 PCIe Gen2 links from VPX P1 (option for one link to be configured for 10GigE) ・1x PMC/XMC Site ・2x 10/100/1000BaseT ・2x RS-232 / 422 COM ports ・2x SATA ・2x USB 2.0 ・8x Single-Ended GPIO (5V tolerant) ・BMM (Board Management Microcontroller) ・VITA65 OpenVPX Compatible
-
CHAMP-WB-DRFM Digital RF Memory Card Set
Curtiss-Wright FPGA OpenVPX 防衛・OpenVPX™ (VITA 65) profile MOD6-PAY-4F-10..3.1-x; MOD6-PER-1Q-10.3.5-2, VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs (X690T), with ・8 GB DDR3L SDRAM in two banks ・Four 4-lane serial data plane links to the backplane (support up to 10.3 Gbps data rates) ・Gen2 SRIO, Aurora or alternate fabrics with different FPGA cores ・One 4-lane Gen3 PCIe connection to a Gen3 PCIe switch ・One additional x4 10.3 Gbps link to the backplane ・16 LVDS pairs to the backplane ・Onboard PCIe Gen3 switch - Two 8-lane expansion plane fabric ports to the backplane with configurable NTB support ・12 GS/s 8-bit ADC and 12 GS/s 10-bit DAC from Tektronix ・Thermal sensors for monitoring board power consumption ・Support for ChipScope Pro and JTAG processor debug interfaces ・Backplane clock/sync paths to mezzanines sites and FPGA ・FXTools BSP and FPGA design kit with highly-optimized IP Blocks, development environment, reference designs, scriptable simulation test benches and software libraries VxWorks and Linux variants available ・VITA 48 1” pitch format ・Ruggedization levels ・Air-cooled Level 0 (commercial) ・Conduction-cooled Level 200 (future) ・Path to variant with Processor (contact factory)
-
OpenVPX NVIDIA Fermi GPGPU 6U Quick Start Kit
Curtiss-Wright GPGPU OpenVPX 防衛・VPX6-1956 Intel 2nd Generation Core i7 SBC ・2.1 GHz quad-core i7 CPU with AVX ・16 GB DDR3 ・32 GB SSD ・VPX6-490 Dual NVIDIA® Fermi™ GP-GPU board ・Dual 240-core Fermi class GPUs ・2 GB of GDDR5 per GPU ・6-slot 6U 1” pitch OpenVPX™ Desktop Chassis ・5-slot full mesh, one uncommitted slot ・1900 W power supply, 110V/220V input ・Backplane wiring and connectors ・Dual 8-lane connections and single 16-lane connection ・Ethernet, SATA and USB connections
-
MFC700 sRIO VPX 32GB
Curtiss-Wright FPGA OpenVPX 防衛・Up to 32GB DDR2 SDRAM with ECC ・Four x4 high-speed Serial RapidIO® links ・On-board 8 port Serial RapidIO switch ・Supports OpenVPX centralized and distributed switch backplanes ・Dual Xilinx® Virtex®-5 FPGA memory controllers ・Local DMA controllers for system offload ・Additional RocketIO connections between FPGAs and the backplane ・Air and conduction cooled options
-
IBX400
Abaco Systems （旧GE Intelligent Platforms） スイッチ OpenVPX 防衛・6U OpenVPX VITA65 Switch Profile - SLT6-SWH-16U20F-10.4.2 - MOD6-SWH-16U20F-12.4.2-10 ・DDR InfiniBand Data Plane - 20 x Fat Pipes - High throughput, low latency - In-band subnet management ・Gigabit Ethernet Control Plane - 16 x Ultra Thin Pipes - Fully managed layer 2/3 - Ethernet Switch Fabric ・Management Plane - I2C /BMM Controller ・OpenWare Control Plane Switch Management - Layer 2 and layer 3 packet switching - QoS Priority (IEEE802.1D) - IPv6 & IPv4 Switching ・End to end RDMA solutions - 6U OpenVPX SBCs, Multiprocessors, GPGPU blades and I/O ・Application Ready Platforms - Fully integrated & tested Linux clusters for radar, image, signal & data processing
-
GRA112
Abaco Systems （旧GE Intelligent Platforms） NVIDIA OpenVPX 防衛・NVIDIA® EXK107 GPU ・NVIDIA Kepler architecture ・384 processor cores ・128-bit memory bus ・2 Gbytes GDDR5 SDRAM ・As used on NVIDIA GT 650M ・PCI Express ・16-lane PCIe Gen 3 capable (x16/x8/x4/x1) ・Support ・NVIDIA CUDA™ (compute capability 3.0) ・OpenCL™ ・OpenGL ・GPUBoost ・NVIDIA H.264 video encoding (NVENC) ・NVIDIA PureVideo® Technology (PUHD) ・NVIDIA PhysX™ -ready ・Microsoft® DirectX (Compute) ・Air- and conduction-cooled variants ・3U VPX form factor ・Available as 2LM VPX-REDI
-
GRA111
Abaco Systems （旧GE Intelligent Platforms） NVIDIA OpenVPX 防衛・OpenVPX-compatible 3U VPX NVIDIA GT 240 based Graphics Processing Unit (GPU) ・96 Processor Cores ・540 MHz graphics clock ・1302 MHz processor clock ・Feature support: NVIDIA CUDA technology, OpenCL, OpenGL, NVIDIA PureVideo Technology (PUHD), NVIDIA PhysX-ready, Microsoft DirectX ・1 GByte DDR3 SDRAM ・Two independent output channels ・VESA output resolutions to 2048x1536 ・HDMI ・DVI 1.0 digital video output (single or dual link) ・Air and conduction cooled variants ・VPX REDI
