条件に該当する製品295件
-
GAZL PCIe NODE CARD
OCTAGON PCIE PCI Express 防衛PCIE5565APIORC-2001-02
・特徴
RAM 256MB SDRAM
データ転送速度
非冗長転送速度：
43MByte/s（シングルロングワードアクセス）～170MByte/s（64バイトバースト）
冗長転送速度：
20MByte/s（シングルロングワードアクセス）～87MByte/s（64バイトバースト）
PCI / PCIE 転送速度
132MByte/s（33MHz/32ビットバス）
264MByte/s（33MHz/64ビットバスまたは66MHz/32ビットバス）
528MByte/s（66MHz/64ビットバス）
PCI Express 転送速度：4レーン、2.5Gbit/s
オプション：PCI Express Gen 3.0 転送速度：4レーン、8Gbit/s
ケーブル接続：マルチモード・シンプレックス/ デュプレックスケーブル（最長 1,640 フィート (500 m)）
OS サポート Linux、Windows 10、Windows 11、VxWorks、Windows Server 2022
電源要件 +12 VDC (±5%)、0.4A (通常)、0.7A (最大)
ネットワーク 取り外し可能な SFP トランシーバー
熱管理
要件 300LFM
機械的仕様 寸法 (L x W x D): 188mm x 69mm x 18mm
重量: 111g (小型ブラケット)、117g (大型ブラケット)
MTBF 1,571,709 時間
環境仕様
動作温度: 0°C ～ +65°C (強制空冷)
保管温度: -40°C ～ +85°C
湿度: 20% ～ 80% RH結露しないこと
コンプライアンス：RoHS、CE、FCC、ANSIに準拠 -
Software Defined Radio and Electronic Warfare System
Curtiss-Wright 無線/RADIO VPX 防衛Intel® Core™ i7 or Xeon® Processor • 28VDC Power input per MIL-STD-704 • FPGA-based ADCs and DACs • Data rates to 4 Gsps • Phase coherency across all channels • Auxiliary I/O options (1553, ARINC etc.) • Qualified to MIL-STD-810 and MIL STD-461 Products included in the system: • VPX3-1257, VPX3-1258 or VPX3-1259 SBC • VPX3-530 FPGA-based ADC/DAC • XCLK1 Clock Synch • PSU3-THOR Power Supply • RMC SSD
-
FibreXtreme PCIe and XMCMulti-channel Serial FPDP Data Links
Curtiss-Wright リフレクティブメモリ PCI Express 防衛 生産中止品(EOL)1, 2 or 4 full speed channels • PCIe and XMC x 8 form factors • Compatible with x 16 and x 32 PCIe slots • 4 x independent data streams to host • 256 Mbytes of on-board DDR2 SDRAM • Supports 1.0625 Gb/s, 2.5 Gb/s and 5.0 Gb/s serial data rates • ANSI/VITA 17.1-2003 sFPDP protocol • Support for front and rear I/O options • Up to 494 MB/s sustained data rate simultaneously on each channel • Extends FPDP connections up to 50 km • Various levels of error detection and status reporting
-
MIL-STD-1553 Multiplex BusSwitch
Curtiss-Wright 1553/ARINC BOX 防衛Up to 16 transformer-coupled LRU ports Up to 16 MIL-STD-1553 bus connections Control and Status via EIA-232 port Front-panel LCD indicates switch status Configuration stored in non-volatile memory - previous configuration is restored at power-up with no user-intervention required Supports both MIL-STD-1553A and MIL-STD-1553B Multiple switches can be connected to provide additional LRU inputs or bus outputs Passive Switching Matrix - does not impact latency
-
SCRAMNet GT200
Curtiss-Wright リフレクティブメモリ PCI 防衛 生産中止品(EOL)210+ MB/s data throughput for large data transfers Sub microsecond system latency ensures on-time performance 128 MB memory for robust host platforms Optional transceiver provides redundant capability Boards are available with shortwave, multi-mode transceivers for connections up to 250 meters and longwave, single mode transceivers for connections up to 10 kilometers. SCRAMNet GT200 is currently available in PCI and PMC form factors. Rugged versions, including a conduction-cooled PMC card are also available. Operating system support includes Linux®, Windows®, VxWorks®, Solaris™, RTX®, IRIX®, MATLAB® and LabVIEW®
-
VPX3-611Multi-protocol I/O Module
Curtiss-Wright 1553/ARINC VPX 防衛Advanced I/O options, including MIL-STD-1553B and ARINC 429 • Flexible I/O configurations • VxWorks® 6.9 SMP drivers + Contact factory for additional OS support Applications • Military and civil aerospace applications • SWaP-constrained applications requiring advanced I/O options
-
XMC-603Quad-Channel MIL-STD-1553 Module
Curtiss-Wright 1553/ARINC PMC/XMC 防衛Up to four independent MIL-STD-1553 interfaces • Support for MIL-STD-1553A, MIL-STD 1553B Notice 2, and STANAG 3838 • MIL-STD-1553 interface implemented with the DDC Total-ACE MIL-STD-1553 controller + Supports 64K bytes dual port RAM with parity • Both transformer-coupled and direct coupled interfaces supported • BC, RT, MT modes independently selectable for each channel • Backplane I/O • Linux®, VxWorks® and Windows® XP-E drivers available • x1 PCI Express® (PCIe) Gen 1 interface • Requires 5 V or 12 V, and 3.3 V from the carrier card • Available in three ruggedization levels: + Air-cooled: Level 0 and 100 + Conduction-cooled: Level 200
-
XMC-E01Quad-Channel 10Gb Fiber-Optic Ethernet XMC
Curtiss-Wright Fibre Channel PMC/XMC 防衛Four channels 10 GbE • IEEE 1588 PTP support • 10 GBASE-SR (850 nm, multi-mode) • XMC (VITA 42) form factor • Fiber-egress – no modification to conduction-cooled carrier • Rugged air and conduction cooled • Operating temperature: -40°C to +85°C • Linux and Windows drivers available Applications • High bandwidth data ingest • Backbone connectivity
-

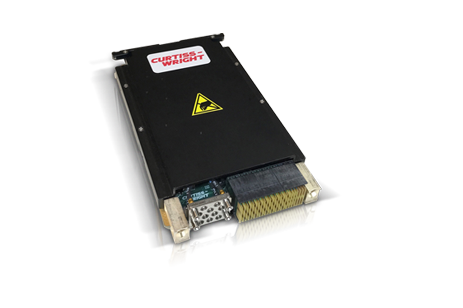

VPX3-E320 Ruggedized Universal Software-Defined RadioDeveloped in Alignment with the SOSA™ Technical Standard
Curtiss-Wright 無線/RADIO OpenVPX 防衛Design based on the Ettus Research USRP E320 • Alignment to the SOSATM and CMOSS Technical Standards • Planned alignment with VICTORY & MORA • Support for development with USRP tool f lows (UHD, RFNoC) • Support for C, C++, and Python • Support for industry standard SDR development tools, such as GNU Radio & REDHAWK • Optional FPGA programming with Xilinx Vivado • RF: 2x2 MIMO (2 Rx, 2 Tx) • Frequency range: 70 MHz to 6 GHz (<30MHz planned) • Bandwidth: up to 56 MHz • Synchronization: 100 MHz and 1 PPS backplane sources • FPGA: Xilinx Zynq 7045 • Dual-core Arm Cortex A9 • 1 Gb and 10 Gb Ethernet I/O • Conduction-cooled, rugged 3U VPX form factor
-

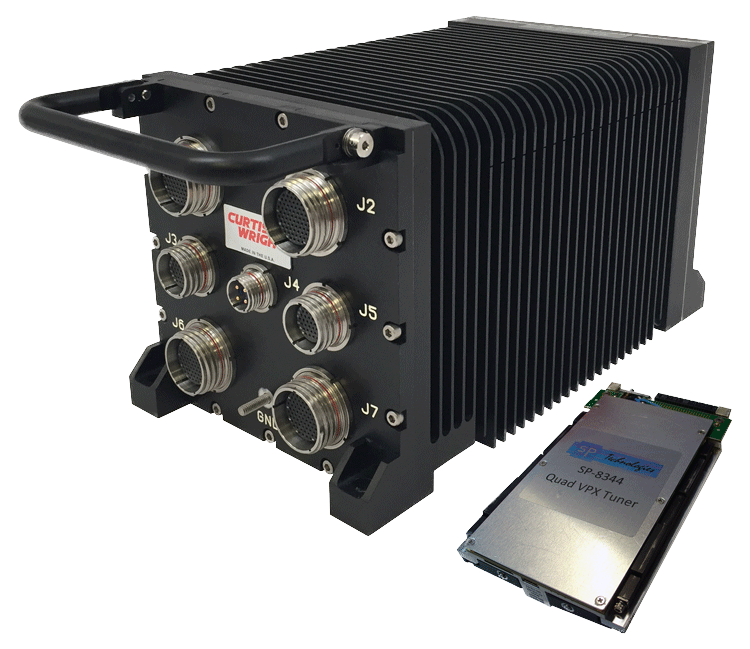

Electronic Warfare System 3U VPX Compact Multi-Channel Tuner System
Curtiss-Wright 無線/RADIO VPX 防衛SWaP-optimized signal processor • 4 High-performance tuner channels + 20 MHz to 6 GHz + 40 MHz IF passband • Intel Xeon D Octal Core DSP + 410 GFLOPs with AVX2 • Xilinx Kintex-7 410T FPGA processor + User Programmable - PCIe/GTP • High bandwidth I/O options + 1 and 10 Gigabit Ethernet, USB • MIL-STD-810/MIL-STD-461 qualified Applications • Signal Intelligence • Electronic Warfare • Electronic Support Products included in the system: • MPMC-9323 Chassis Enclosure • SP-8344 Multi-Channel Tuner • VPX3-482 CHAMP-XD1 DSP • XF07-523 Xilinx Kintex-7 FPGA • PSU3-THOR Power Supply • XMC-651 Ethernet Switch (opti
