Flexible OpenVPX profiles for both legacy compatibility and new designs Variants available aligned with the SOSA Technical Standard as a 3U Data/Control Plane Ethernet Switch Fabric100™ Ecosystem Support for 100G Ethernet Low Power Ethernet switch offers non blocking line-rate performance– Flexible support for 1G, 10G, 25G, 40G, 50G, and 100G Ethernet Multi-layer L2 switching and L3 routing

Developed in alignment with the SOSA Technical Standard as a 3U Data/Control Plane (6F) Ethernet Switch • Fabric100TM Ecosystem Support for 100G Ethernet in a SOSA-aligned form factor • Independent Data Plane and Control Plane switches for dual domain security separation + Data Plane support for 10G, 25G, 40G, 50G, and 100G Ethernet + Control Plane support for 1G and 10G Ethernet ports • Optional front-panel optical ports for both Data and Control Planes • Multi-layer L2 switching and L3 routing • TSN support on Control Plane

Ethernet connectivity for OpenVPX and CMOSS/SOSA-Aligned systems • Fully-managed multi-layer L2 switching and L3 routing services, including multicast, QoS, IPv4 and IPv6, and security features • Configurable for multiple OpenVPX switch module profiles, including 2F24U, 8F, 6F8U, 4F16U and a SOSA-aligned 6F1U7U variant • Low-latency, high-throughput line-rate forwarding up to 320 Gbps • Support for Gigabit, 10 Gbps and 40 Gbps backplane Ethernet standards + Up to 32x 10 GbE or 8x 40GbE interfaces in a single VPX 3U slot • IEEE-1588 PTP transparent clock for high-precision system-level time synchronization

24 ports of IEEE 802.3 1000BASE-T Gigabit Ethernet • Fully managed multi-layer switching with CLI, SNMP and web-based interfaces • Extensive networking feature set for segmentation, filtering, QoS and traffic management • Optional optical interfaces • Supports services XMC for routing, security or network services • Available in standard air-cooled and conduction-cooled rugged form factors Applications • Pin-compatible replacement for VPX6-684 Ethernet Switches • Standards-based connectivity for VPX embedded computing systems • Robust and secure Ethernet for in vehicle networks

Hybrid PCIe and 10G Ethernet Switch + 6F6U and 6F8U profile options for OpenVPX systems and systems aligned with the SOSA™ Technical Standard • PCIe 3.1 data or expansion plane switch with 24 lanes to the VPX backplane • Flexible PCIe configuration supporting x8, x4, and x2 links + Up to six separate root partitions for multi-host applications + Non-transparent bridging (NTB) available for any ports supporting host-to-host communications • 10G Ethernet control plane switch + Up to 8 ports of 10GBASE-KR + Up to 2 ports 1000BASE-T + 2 ports SFP+ on front panel of air-cooled modules • XMC site for hosting PCIe-connected mezzanine + Ideal for expansion using storage, GPU, or FPGA co-processors without I/O requirements + Can also support an Ethernet routing, network services, or security mezzanine

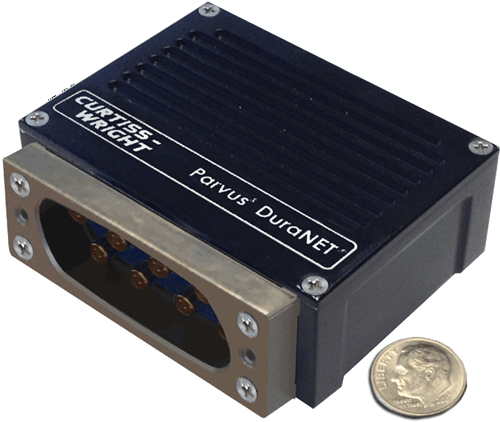

Rugged 6-port 10/100 Ethernet switch • High-performance, rugged Quadrax connector for superior signal integrity • Layer 2+ carrier Ethernet software management Ultra-miniature SWaP-optimized design: Size: ~10 in3 Weight: ~0.55 lb (~0.25 kg) Power: <5W • IEEE-1588v2 Precision Timing Protocol support • Designed to MIL-810G, MIL-461F, MIL-704F compliant

Rugged 20-port Gigabit Ethernet switch • Layer 2+ carrier Ethernet software management • Size, weight and power (SWaP) optimized: + Size: 112 in3 + Weight: 4 lb + Power: < 20W • Low-power, Energy Efficient Ethernet compliant • IEEE-1588v2 Precision Timing Protocol • Qual tested to extreme environment and EMI conditions per DO-160, MIL-810G and MIL-461F • Vehicle and aircraft compatible power supply (per DO-160, MIL-704F and MIL-1275D) • IP67 dust and waterproof aluminum chassis • Circular MIL-DTL-38999 connectors

Rugged 8-port GbE switch • High performance, rugged MIL-circular connectors Overview CURTISSWRIGHTDS.COM The Parvus® DuraNET® 20-11 is an ultra-small form factor (SFF) rugged Commercial Off the Shelf (COTS) 8-port Gigabit Ethernet (GbE) switch optimized for extremely demanding size, weight and power (SWaP) constrained vehicle and aircraft platforms exposed to harsh environmental and noisy electrical conditions (e.g. high altitude, extreme shock and vibration, extended temperatures, humidity, dust and water exposure, noisy EMI, and/or dirty power). The unit boasts an ultra-miniature “pocket-sized” design with a physical size of roughly 10 in3 in volume, 0.50 lb in weight, and 5W typical power consumption. Bringing out Ethernet, power, console, and zeroize signals over micro miniature MIL circular connectors, the unit is well suited for low size and weight applications with demanding electromagnetic compatibility (EMC) requirements. Validated for military and civil aircraft use as well as ground vehicle installations, the 20-11 features integrated EMI and power filtering for the input voltages, spikes, surges, transients, and EMI/EMC compatibility requirements of MIL-STD-704F, MIL-STD 1275D, MIL-STD-461F, and RTCA/DO-160. • Layer 2+ carrier Ethernet software management • Ultra-miniature SWaP optimized design: + Size: 10 in3 (fits in hand) + Weight: 0.50 lb (~0.23 kg) + Power: 5W • PTP (IEEE-1588v2) precision time stamping • Fully validated to MIL-STD-810G/461F/ 704F/1275D and DO-160

Ruggedized Cisco ESS 2020 IOS- managed switch Overview CURTISSWRIGHTDS.COM The Parvus® DuraNET® 30-2020 is an ultra-rugged 19-port Cisco IOS-managed Layer 2+ network switch integrating Cisco’s ESS 2020 Embedded Services Switch technology with an isolated MIL-1275/MIL 704/DO-160 power supply in an IP67 (dust/water proof) sealed aluminum chassis with MIL-DTL-38999 connectors. Designed for size, weight and power (SWaP) sensitive harsh military and civil environments (i.e. aircraft, vehicle, mining, industrial), the unit provides reliable local area network (LAN) switching capabilities with the ease of use, secure access, and manageability expected from Cisco-based technology. Two levels of Cisco IOS® software (LAN Lite or LAN Base) are available to support access layer connectivity and needs for data, security, voice, and video traffic at the network edge for stationary or mobile network nodes. Validating its robust Information Assurance (IA) and network interoperability, the DuraNET 30 2020 has been US DoD Unified Capabilities Approved Product List (UC APL) certified. • 19 ports (2x GigE uplinks, 17x Fast Ethernet) • Cisco IOS Layer 2+ LAN-Base/LAN-Lite software • SWaP-optimized subsystem: + Size: <2U height - 3.0” (7.6cm) + Weight: 4.2 lb (1.9 kg) + Power: < 10 W • Migration path for Catalyst 2955T-12 systems • Qual-tested to MIL-STD-810G, MIL-STD-461F, and RTCA/DO-160G • IP67 ingress protection, MIL-DTL-38999 connectors • Vehicle and aircraft compatible power supply (per DO-160G, MIL-STD-704F and MIL-STD-1275D

Ultra-rugged Cisco ESR-6300-based secure network router/switch 6 x GbE ports (2 x WAN, 4 x LAN) Cisco IOS-XE Network Essentials or Network Advantage software SWaP optimized: – Small size: ~55 in³ in volume– Lightweight: ~ 2 lb (0.91 kg) – Low-power: < 25 watts (est) Waterproof IP67 chassis with circular MIL-performance connectors MIL-1275/704/DO-160 power supply for aicraft and ground vehicles MIL-STD-810G, MIL-STD-461F and DO-160 qualifications Supports Layer 3 CNSA / IPSEC encryption, VPN, Firewall, NAT, QoS, MANET, RAR
