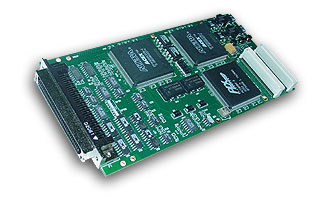

64 Precision Analog Output Channels 16-Bit Resolution Update Rates from 3KSPS per Channel for 64 Channels, to 50KSPS for 2 Channels Software-Selectable Output Ranges of ±10V, ±5V, ±2.5V or ±1.25V 66MHz and 33MHz PCI Bus Support Output-Disconnect Feature Supports Multiple Redundancy Applications Output Disconnect Resistance: 1-Megohm (5-Ohms Connected) Direct Register Access to Individual Output Channels Double-Buffered Output Data Allows New Frame to Load Before Overwriting Outputs Bandwidths (-3dB) from 500Hz for 64 Active Channels, to 15kHz for 1 or 2 Channels Settling Times (0.01%) from 200uS for 1 or 2 Channels to 3ms for 64 Channels Active Channels Assignable from 2 to 64 Channels in Increments of 2 Channels Inactive Channels Driven to Midrange (Zero level) High Accuracy Ensured by Continuous Background Autocalibration Universal Signaling Supports Both 3.3V and 5V PCI Logic Levels Dual-Conversion Internal Supply Requires Only +5V Power from PCI bus Available on Adapters for Alternate Form Factors: PCI, cPCI, PC104-

The 12-channel ADADIO analog I/O board provides high-resolution 16-bit analog input, analog output and digital I/ O. Eight analog input channels are sampled simultaneously. The inputs can be sampled continuously or can be burst-sampled (up to 200,000 samples per channel for an aggregate rate of 1,600,000 samples per second). The inputs are converted and stored in a 32,000-sample FIFO buffer. The four analog output channels are accessed through independent registers, and can be updated either synchronously or asynchronously. Inputs and outputs have a factory-configured range of ±10V, ±5V or ±2.5V. A digital port provides eight bi-directional data lines and two control lines.

64 Analog Inputs with Dedicated 500KSPS 18-Bit SAR ADC per Channel Simultaneous Sampling of all Inputs; Minimum Data Skew Sampling Rates to 500 KSPS per Channel (32 MSPS Aggregate Rate) D32; 66MHz, 33MHz PCI compatibility, with universal 5V/3.3V Signaling Continuous, Burst and Single-Sample Clocking Modes Software and I/O pinout compatibility with the 16AI64SSA/C Selectable Differential Processing Simulates Differential Operation of Channel Pairs Input Ranges: ±10V, ±5V, 0/+5V, 0/+10V; Software-Selectable Hardware Sync I/O for Multiboard Operation 1 MByte FIFO Data Buffer provides 256K-Sample data capacity 2-Channel DMA Engine Sampling Controlled by Internal Rate Generator, by Direct software control, or Externally On-Demand Internal Autocalibration of all Channels Completely Software-Configurable; No Field Jumpers Auxiliary PXI Triggering Port Available through P1, P2.

The 16-Bit PMC-16AI64SSA analog input board samples and digitizes 64 input channels simultaneously at rates up to 200,000 samples per second for each channel. The resulting 16-bit sampled data is available to the PCI bus through a 256K-Sample FIFO buffer. Each input channel contains a dedicated 16-Bit sampling ADC. All operational parameters are software configurable. Inputs can be sampled in groups of 2, 4, 8, 16, 32 or 64 channels; or any single channel can be sampled continuously. The sample clock can be generated from an internal rate generator, or by software or external hardware. Input ranges are software-selectable as ±10V, ±5V or ±2.5V. The inputs can be clocked either continuously or in triggered bursts. An on-demand autocalibration feature determines offset and gain correction values for each input channel.

The PMC-16AO2MFS D/A board provides 400KHz-per-channel precision high speed 16-bit analog outputs, and supports arbitrary waveform generation. Two analog output channels are updated independently from an internal buffer, either at software-determined rates, or by an externally supplied clock. Flexible operating modes include continuous, periodic and triggered burst functions, as well as the seamless, dynamic concatenation of waveforms in real-time. Output ranges are supplied as ±10V, ±5V or ±2.5V. Internal auto calibration networks permit periodic calibration to be performed without removing the board or host from the system. This feature produces the optimum calibration situation, in which the board is calibrated in its actual operating environment.

16 Mutually Isolated 16-Bit simultaneously-clocked analog output channels. Output clocking rates from zero to 200 kHz per second per channel. ±10V or Zero to +10V output ranges at ±10mA, or 600-Ohm load at 12V. Output Configuration: Floating, 2-wire. Output impedance: 2 Ohms maximum. Overvotage-protected to ±30V. Sustains shorts to channel-ground indefinitely. Isolation; Channel-to-Channel: Sustained 1000VRMS. Isolation; Channel-to-Bus: Sustained 1000VRMS. Accuracy: ±0.04% of fullscale. Calibration: On-demand internal offset and gain autocalibration of all channels. cPCI 6U form factor. Conformal coating ensures long-term insulation integrity. 256 K-Sample FIFO output data buffer. Front-panel system I/O connections (Rear-Panel version available), 66MHz 64-bit PCI support, with universal 5V/3.3V signaling and DMA support. PCI burst rates to 400MB/sec.

Input sample rates from zero to 200 Kilosamples per second per channel. ±10V, ±1V, ±100mV or ±10mV input ranges, software-selectable. Input Configuration: Differential or floating. Input impedance: 10 Megohms. Common Mode Voltage: Equal to or greater than ±200V, Channel-to-Bus. Antialiasing Filter; 5th order Chebyshev; Factory-configured from 5kHz to 100kHz. 50Hz rejection filter; 30dB. Common Mode Rejection: 120dB minimum on all ranges.

16 Mutually Isolated 16-Bit simultaneously-sampled analog input channels. Input sample rates from zero to 200 Kilosamples per second per channel. ±10V, ±1V, ±100mV or ±10mV input ranges; software-selectable. Input Configuration: Differential or floating. Input impedance: 10 Megohms. Isolation; Channel-to-Channel: Sustained 1000VRMS Isolation; Channel-to-Bus: Sustained 1000VRMS Common Mode Voltage: Equal to or greater than ±200V, Channel-to-Bus. Antialiasing Filter; 5th order Chebyshev; Factory-configured from 5kHz to 100kHz. Common Mode Rejection: 120dB minimum on all ranges. Accuracy: ±0.04% of fullscale. Calibration: On-demand internal offset and gain autocalibration of all channels. 50Hz rejection filter; 30dB. cPCI 6U form factor. Conformal coating ensures long-term insulation integrity. Front-Panel system I/O connections (Rear-Panel version available), 66MHz 64-bit PCI support, with universal 5V/3.3V signaling and DMA support. PCI burst rates to 400MB/sec.

The PMC-OPTO32A board has 32 optically-coupled digital I/O channels consisting of 8 outputs and 24 inputs. Each channel is electrically isolated (1000 Volts) from the host processor board. Change-of-State Interrupts allow for an interrupt to the PMC host to be generated from any level change on any input. Built-in-self-test, selectable debounce times, input pulse counter, and I/O voltages to 50 Volts makes for a versatile digital interface board.

The PCI-OPTO32B board has 32 optically-coupled digital I/O channels consisting of 8 outputs and 24 inputs. Each channel is electrically isolated (1000 Volts) from the PMC host processor board. Change-of-State Interrupts allow for an interrupt to the PCI host to be generated from any level change on any input. Built-in-self-test, selectable debounce times, input pulse counter, and I/ O voltages to 50 Volts makes for a versatile digital interface board.
