The SI04BXR-SYNC board is a four channel serial interface card which provides a simple synchronous serial interface capability for PMC applications. The SIO4BXR-SYNC combines a flexible parallel/serial converter and 8 external FIFOs to provide four fully independent synchronous serial channels. These features, along with a high performance PCI interface engine, give the SIO4BX-SYNC unsurpassed performance in a serial interface card. The SIO4BX-SYNC features software configurable cable tranceivers (RS422, RS232 and others).

The PMC66-SI04BXR board is a four channel serial interface card which provides high speed, full-duplex, multi-protocol serial capability for PMC applications with Rear I/O . The SIO4BXR combines two multi-protocol Dual Universal Serial Controllers (USC®), 8 external FIFOs, and multi-protocol transceivers to provide four fully independent asynchronous or synchronous serial channels. Multiprotocol Transceivers support RS422 (V.11)/RS485, RS423 (V.10), RS232 (V.28), RS530, as well as other Mixed Protocol modes. These features, along with a high performance PCI interface engine, give the PMC-SIO4BXR unsurpassed performance in a serial interface card.

Four Lane PCI Express (PCIe4) Eight Independent Synchronous Serial Channels Serial Data Rates up to 10 Mbits/sec Independent Transmit and Receive FIFO Buffers for each Serial Channel � 32kb Deep Multi-protocol Transceivers support RS485 and RS232, selectable per channel Fast RS422/RS485 Differential Cable Transceivers Provide Data Rate up to 10Mbps Software Selectable 120? Termination Resistors for RS485 RS232 Cable Transceivers Provide Data Rate up to 250kbps Programmable Transmit Bit Counts allow for various transmit word lengths Programmable Transmit Gap Bit Counts allow for variable gap between words Programmable Oscillators provide increased flexibility for exact Baud Rate Clock generation, selectable per channel Two Signal (Clock/Data) or Three Signal modes (Clock/Data/Data Valid) Fully Programmable Polarity on all signals Unused Serial Channels can be programmed to provide General Purpose IO capability Low Force Helix (LFH) type 160 pin front edge I/O Connector with optional cable adapter to eight DB25 connectors Dual PCI DMA Engine to speed transfers and minimize host I/O overhead A variety of device drivers are available, including VxWorks, Windows, WinCE, Linux, and Labview

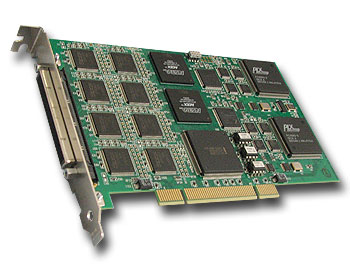

Eight Channel Synchronous Serial To Parallel Controller with Software Configurable Cable Tranceivers (RS422, RS232 and others). Request a Quote! The PCI-SI08BXS-SYNC board is an eight channel serial interface card which provides a simple synchronous serial interface capability for PCI applications. The PCI-SIO8BXS-SYNC combines a flexible parallel/serial converter and 16 external FIFOs to provide eight fully independent synchronous serial channels. These features, along with a high performance PCI interface engine, give the PCI-SIO8BXS-SYNC unsurpassed performance in a serial interface card. The PCI-SIO8BXS-SYNC features software configurable cable transceivers (RS422, RS232 and others). The PCI-SIO8BXS-SYNC is based on the four channel SIO4BX product line from General Standards Corporation. In order to maintain software compatibility, the PCI-SIO8BXS-SYNC is implemented as two independent four channel SIO4BX-SYNC cards. What is the difference between the SIO8BXS and the SIO8BXS-SYNC?

Eight Channel High Performance Serial I/O PCI CARD Featuring Multi-Protocol Serial I/O with Software Configurable Cable Transceivers and 32k byte FIFO Buffers (512k byte total) Four Lane PCI Express (PCIe4) Interface Eight Independent Multiprotocol Serial Channels Serial Mode Protocols include Asynchronous, Monosync, Bisync, SDLC, HDLC, Nine-Bit, and IEEE 802.3 Synchronous Serial Data Rates up to 10 Mbits/sec Asynchronous Serial Data Rates up to 1 Mbit/sec Independent Transmit and Receive FIFOs for each Serial Channel 32k byte each Multi-protocol Transceivers support RS422 (V.11)/RS485, RS232 (V.28) Parity and CRC detection capability Programmable Oscillators provide increased flexibility for exact Baud Rate Clocks Utilizes two 68-pin VHDCI front edge I/O Connectors Eight Independent RS422/RS485/RS232 Serial Channels Eight signals per channel, configurable as either DTE or DCE: 3 Serial Clocks (TxC,RxC,AuxC), 2 Serial Data signals (TxD,RxD), CTS, RTS, and DCD. Unused signals may be reconfigured as general purpose IO. Fast RS422/RS485 Differential Cable Transceivers Provide Data Rate up to 10Mbps RS423 and RS232 Cable Transceivers Provide Data Rate up to 230kbps Industry Standard Zilog Z16C30 Multi-Protocol Universal Serial Controllers (USC®) Optional cable adapter to eight DB25 connectors A variety of device drivers are available, including VxWorks, Windows, WinCE, Linux, and Labview Industrial Temperature Option Available

8 High-Level or Low-Level Analog Input Channels Input Channels Share a Common Isolated Ground 16-Bit, 200KSPS ADC and Active Lowpass Filter per Channel Isolation-Side Signal Conditioning and A/D Conversion Exceptional 0.01 Percent Accuracy Across The Isolation Barrier Simultaneous Sampling of All Channels 240 VAC Isolation from the PCI bus Active Lowpass Filter Cutoff Frequency Selectable as 2 kHz or 75 kHz Post-Conversion Digital Filter Cutoff Frequency Adjustable Down to 1.0 Hz 32 K-Sample FIFO Buffer Selectable Input Ranges: �10V, �5V, �2.5V, �1.0V, �100mV, �50mV, �25mV 66 MHz PCI Support

4 Bus-Isolated Analog Output Channels 16-Bit DAC per Channel Isolation-Side D/A Conversion * Exceptional 0.01 Percent Accuracy Across The Isolation Barrier Clocking Rates to 400 KSPS per Channel Supports Continuous, Periodic and One-Shot Function Generation 240 VAC Galvanic Isolation from the PCI Bus 32 K-Sample FIFO Buffer Selectable Output Ranges: �10V, �5V, �2.5V 66 MHz PCI Support

16 Simultaneously-Sampled 14-Bit High-Speed Analog Input Channels Sampling Rates from Zero to 2.8 MSPS per Channel; Aggregate Rates to 45 MSPS Input Range; Factory-Configured: Widerange: ±10V, ±5V, ±2.5V, 0/+10V, or 0/+5V. Wideband: ±3V, ±1.5V, or ±0.75V (Software-controlled ranging available, with 3x increased input settling time) 16 Single-Ended or 8 Differential Input Channels; Software-Selected 1-MByte FIFO Data Buffer; 512-Ksample Capacity, with DMA Support 66MHz PCI Compatibility and Local Data Packing provide Maximum Throughput Pretriggering and Trigger-on-Level 40ns Input Rise and Fall times; 150ns Settling to 0.1% (90ns Input Rise and Fall times; 350ns Settling to 0.1% with software-controlled ranging) Mask-Selection of active Channels; No unnecessary Data Accumulation Sample Clocking from Internal Rate Generator or External Source Dual 24-Bit Timers Hardware Clock and Sync I/O for Multiboard Synchronization Two 16-Bit Direct-Write Analog Output Channels Byte-Wide Digital I/O Port On-Demand Internal Autocalibration ensures Maximum Accuracy under all conditions Conforms to PCI Local Bus Specification, Revision 2.3, with Universal Signaling Single-width PMC Form Factor with Integral EMI Shield. (Expanded-capability version available in standard PCI form factor)

20 Simultaneously-Sampled 14-Bit High-Speed Analog Input Channels Sampling Rates from Zero to 1.3 MSPS per Channel; Aggregate Rates to 26 MSPS Software-Selectable Input Ranges: ±10V, ±5V, ±2.5V, 0/+10V, 0/+5V. 20 Single-Ended or 10 Differentially-Processed Input Channels; Software-Selected 1-MByte FIFO Data Buffer; 512-Ksample Capacity, with DMA Support 66MHz PCI Compatibility and Local Data Packing provide Maximum Throughput Pretriggering and Trigger-on-Level 90ns Input Rise and Fall times; 350ns Settling to 0.1% Mask-Selection of active Channels; No unnecessary Data Accumulation Sample Clocking from Internal Rate Generator or External Source Dual 24-Bit Timers Hardware Clock and Sync I/O for Multiboard Synchronization Two 16-Bit Direct-Write Analog Output Channels Byte-Wide Digital I/O Port On-Demand Internal Autocalibration ensures Maximum Accuracy under all conditions Conforms to PCI Local Bus Specification, Revision 2.3, with Universal Signaling

Two Wideband 16-Bit 40 MSPS Analog Output Channels Clocking Rates from Zero to 40 MSPS per Channel; Aggregate Rates to 80 MSPS Software-Selectable Output Ranges: ±3V, ±1.5V, ±0.75V Optional ±10V, ±5V, ±2.5V ranges available, with reduced throughput and loading. 1-MByte FIFO Data Buffer; 512-Ksample Capacity, with DMA Support 66MHz PCI Compatibility and Local Data Packing provide Maximum Throughput Dynamic Linearity Correction: 0.003% DNL; 0.005% INL Output Clocking from Internal Rate Generator or External Source Simultaneous or Independent Output Clocking Dynamic control of Clocking Rates with Embedded Function Codes Hardware Clock and Sync I/O for Multiboard Synchronization 16-Bit 300-KSPS Analog Input Channel Byte-Wide Digital I/O Port Dual Rate Generators and Dual 24-Bit Timers On-Demand Internal Autocalibration ensures Maximum Accuracy under All Conditions Conforms to PCI Local Bus Specification, Revision 2.3, with Universal Signaling
