条件に該当する製品659件
-
VT080
VadaTech 変換インターフェース BOX 試験 環境・Supports USB 1.1 over Fiber ・Fits into any assembly ・Self powered from the USB port ・Fiber LC style connector ・Link/Activity LED ・Available in Industrial Temp ・RoHS Compliant
-
VT000
VadaTech 電源 AdvancedTCA 試験 環境・Powers a single ATCA module ・IPMI Hardware address and parity ・Fuse on each of the power rails ・Enable switch ・Connector for IPMI Bus A and B ・Allows connection to Shelf Managers such as VadaTech VT007 bench-top style ・Test Points ・RoHS Compliant
-

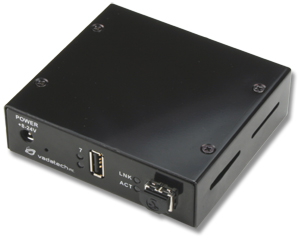

VT082
VadaTech 変換インターフェース BOX 試験 環境・Supports USB 1.1 over Fiber ・Fits into any assembly ・Seven USB Copper ports ・Fiber LC style connector ・Link/Activity LED ・Available in Industrial Temp ・Wide input power range 24V to 9V ・Provides power to each of the USB ports ・RoHS Compliant
-
VT002
VadaTech I2C/SPI AdvancedTCA 試験 環境・32-bit RISC processor @ 400 MHz ・64 Mbytes of DDR @ 266Mhz ・Three RS-232 ports ・Linux release 2.6.21 ・IPMI 2.0 compliant ・Low power (3W) ・RTC with 10 year battery life span ・Runs as the Shelf Manager and/or Node ・Each I2C bus has a 128-byte FIFO ・128 Mbytes of flash ・32KByte FRAM for log messages ・Form, fit, functional to VadaTech VT001 first generation product ・Firmware is field upgradable with dual boot ・Dual 10/100 Ethernet ports
-
VT001
VadaTech IPMI その他 試験 環境・32-bit RISC processor @ 180 MHz ・64 Mbyte of SDRAM ・Each I2C bus has a 64 Bytes FIFO ・Rich set of Management software such as HPI, RMCP+, SNMP, CLI, HTTP, E-keying, etc. ・128 Mbytes of Flash ・Firmware is field upgradable with Dual boot flash ・Dual 10/100 Ethernet ports ・RS-232 Debug port ・Linux release 2.6.15 ・IPMI 2.0 compliant ・Low power 2.2W ・RTC with 10 years battery life span ・Runs as the Shelf Manager and/or Node
-
VT005
VadaTech Shelf Manager/MCH AdvancedMC 物理 天体・Form, fit and functional to Intel MPCMM0001 ・5W Max Power ・Linux release 2.6.15 ・Field upgradable with dual boot Flash ・IPMI 2.0 compliant ・Telco Alarms ・Isolated DC/DC converter ・Active/Standby utilizing two VT005 in system ・Rich set of Management software (refer to the VT001 specification for all the software components) such as HPI, RMCP, SNMP, CLI, HTTP, etc. ・VT005 can run as IPMI protocol analyzer to monitor all the 40+ I2C Busses ・32-bit RISC processor @ 180 MHz ・64 MB of SDRAM and 128 MB of Flash ・Dual 10/100 Ethernet ports ・RS-232 Debug port
-
VT004
VadaTech アナライザー AdvancedMC 試験 環境・32-bit RISC processor @ 180 MHz ・64 Mbyte of SDRAM ・VT004 can run as IPMI protocol analyzer to monitor the I2C Busses ・128 Mbytes of Flash ・Dual 10/100 Ethernet ports ・RS-232 Debug port ・Linux release 2.6.15 ・Field upgradable with dual boot Flash ・IPMI 2.0 compliant ・Telco Alarms ・Isolated DC/DC converter ・Active/Standby utilizing two VT004 in system ・Rich set of Management software (refer to the VT001 specification for all the software components) such as HPI, RMCP, SNMP, CLI, HTTP, etc.
-
VT006
VadaTech アナライザー AdvancedMC 試験 環境・32-bit RISC processor @ 180 MHz ・64 Mbyte of SDRAM ・VT006 can run as IPMI protocol analyzer to monitor the I2C Busses ・128 Mbytes of Flash ・Dual 10/100 Ethernet ports ・RS-232 Debug port ・Linux release 2.6.15 ・Field upgradable with dual boot Flash ・IPMI 2.0 compliant ・Telco Alarms ・Isolated DC/DC converter ・Active/Standby utilizing two VT006 in system ・Rich set of Management software (refer to the VT001 specification for all the software components) such as HPI, RMCP, SNMP, CLI, HTTP, etc.
-
VT009
VadaTech Shelf Manager/MCH AdvancedMC 試験 環境・32-bit RISC processor @ 400 MHz ・64 Mbytes of DDR @ 266Mhz ・Active/standby redundancy when utilizing two VT009s in the system ・Rich set of management software (refer to the VT001 specification for all software components) such as HPI, RMCP, SNMP, CLI, HTTP, etc. ・Integrated Intelligent Fan Controller ・Integrated Power Entry Module (PEM) ・128 Mbytes of flash ・Dual 10/100 Ethernet ports ・RS-232 Debug port ・Linux release 2.6.21 ・Field upgradable with dual boot flash ・IPMI 2.0 compliant
-
VT008
VadaTech アナライザー VPX 試験 環境・Form, fit and functional to Intel MPCMM0002 ・5W Max Power ・32-bit RISC processor @ 180 MHz ・64 MB of SDRAM and 128 MB of Flash ・Dual 10/100 Ethernet ports ・RS-232 Debug port ・Linux release 2.6.15 ・Field upgradable with dual boot Flash ・IPMI 2.0 compliant ・Telco Alarms ・Isolated DC/DC converter ・Active/Standby utilizing two VT008 in system ・Rich set of Management software (refer to the VT001 specification for all the software components) such as HPI, RMCP, SNMP, CLI, HTTP, etc. ・VT008 can run as IPMI protocol analyzer to monitor all the 40+ I2C Busses
