・Intel Core i7 Broadwell 5th Generation processor ・Quad-Core (8-thread) with Turbo ・Up to 32 GB DDR3L at 1600 MT/s supporting 25.6 GB/s ・Up to 128 GB SATA NAND flash ・Supports two PMC/XMC expansion mezzanines ・Supports Linux (Fedora and Red Hat Enterprise Linux (RHEL)), VxWorks, Microsoft Windows Embedded Standard and LynxOS ・Available in air-cooled and conduction-cooled versions

・Small form factor with door providing access to removable, scalable storage ・Removable Memory Cartridges (RMC) with 100K insertion cycle connectors ・Network File Server with 4 x 1GbE ports ・Standard network protocols supported: NFS, CIFS, HTTP, and FTP protocols ・PXE support to boot network clients ・Ethernet packet capture (PCAP file format) ・AES-256-bit encryption (option) ・Built-In Test (BIT) health controller ・Power interruption protection to prevent file corruption ・RS-232 interface for out-of-band control

・VICTORY Ethernet Switch ・Compliant as an Infrastructure Switch per the US Army's VICTORY specification ・12-port managed Gigabit Ethernet switch: 　　・Non-blocking architecture supporting tri-speed operation (10/100/1000 Mbps) with auto negotiation and auto-MDIX 　　・Feature-rich networking support includes IPv4/v6 support, VLANs, IGMP multicast, QoS, MSTP/RSTP, link aggregation, port mirroring, jumbo frames and static routing for WAN connectivity 　　・Energy Efficient Ethernet (EEE) with cable diagnostics for maintenance/support 　　・Hardware support for IEEE-1588v2 Precision Time Protocol (PTP) provides critical time synchronization ・Dual-core Processor Mezzanine 　　・NXP Power Architecture QorIQ dual-core P2020 Processor at 1.2 GHz 　　　　・2 GB DDR3 DRAM with ECC 　　　　・256 MB Flash, 8 GB SSD drive 　　・2x Gigabit Ethernet ports 　　・2x serial RS-232 ports 　　・SATA 2.0 port 　　・PCI Express (PCIe) port to backplane 　　・Supported by Wind River Linux 4.3 or VxWorks BSP 6.9 and Driver Suite ・Conduction-cooled, optional 2LM covers ・Industry-leading technical and lifecycle management support

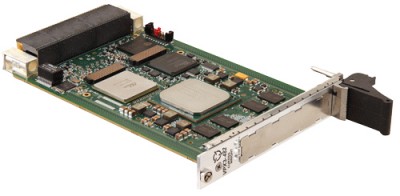

・Intel Xeon D 8-Core (410 GFLOPS @ 1.6 GHz) or 12-Core (576 @ 1.5 GHz) ・Extended operating temperature Intel eTEMP SKUs ・PCH integrated in Xeon D SoC ・Native dual KR 10 GigE ports ・16 to 32 GB DDR4 @ 2133 megatransfers per second (34 GB/s aggregate) ・XMC PCIe up to Gen3, designed for up to 25W thermal dissipation ・PCIe Gen3 on 3U OpenVPX data plane with switch ・Core Function FPGA with IPMI ・Conduction and air-cooled ・TrustedCOTS

・OpenVPX (VITA 65) MOD6-PER-4F-12.3.1-8; MOD6-PER-1Q-12.3.5-2 VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs X690T, with 8 GB DDR3L SDRAM ・Single-channel 25 Gsps, dual-channel 12.5 Gsps 8-bit ADC ・20 x backplane SerDes capable of 10.3 Gbps each ・Onboard PCIe Gen3 switch CHAMP-WB-D25G - Xilinx Virtex-7 6U OpenVPX Wideband Transmitter with 25 Gsps DAC ・OpenVPX (VITA 65) MOD6-PER-4F-12.3.1-8; MOD6-PER-1Q-12.3.5-2 VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs (X690T), with 8 GB DDR3L SDRAM ・25 Gsps, 10-bit DAC ・20 x backplane SerDes capable of 10.3 Gbps each ・Onboard PCIe Gen3 switch

・OpenVPX (VITA 65) MOD6-PER-4F-12.3.1-8; MOD6-PER-1Q-12.3.5-2 VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs (X690T), with 8 GB DDR3L SDRAM ・25 Gsps, 10-bit DAC ・20 x backplane SerDes capable of 10.3 Gbps each ・Onboard PCIe Gen3 switch

・OpenVPX (VITA 65) profile MOD6-PAY-4F1Q2U2T-12.2.1-11, VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs (X690T or X980T), with 　　・8 GB DDR3L SDRAM in two banks 　　・Four 4-lane serial data plane links to the backplane (support up to 10.3 Gbps data rates) 　　　　・Gen2 SRIO or alternate fabrics with different FPGA cores 　　・One 4-lane Gen3 PCIe connection to a Gen3 PCIe switch 　　・One additional x4 10.3 Gbps link to the backplane 　　・16 LVDS pairs to the backplane 　　・Two enhanced FMC interfaces with 128+ differential signal pairs 　　　　・One site supports JESD204B or Serial FMCs with up to 8 serial links 　　　　　　・The other site has optional support for up to 160 LVDS pairs with X690T FPGA ・Two Mezzanine sites with support for FMC (VITA 57) or enhanced FMC ・Onboard PCIe Gen3 switch - Two 8-lane expansion plane fabric ports to the backplane with configurable NTB support ・Sensors for monitoring board power consumption ・Support for ChipScope Pro and JTAG processor debug interfaces ・Backplane clock/sync paths to mezzanines sites ・FXTools BSP and FPGA design kit with highly-optimized IP Blocks, development environment, reference designs, scriptable simulation test benches and software libraries VxWorks and Linux variants available ・VITA 48 1" pitch format ・Ruggedization levels 　　・Air-cooled Level 0 (commercial) 　　・Conduction-cooled Level 200 (future) ・Path to variant with Processor (contact factory)

・Two Intel Core i7-3612QE quad-core processors at up to 2.1GHz ・4 Gbytes DDR3 SDRAM with ECC per processor ・8GB NAND flash per processor ・256 Kbytes NVRAM ・Gen2 Serial RapidIO Data Plane interface, 8GB/s bi-directional bandwidth ・Gen2 PCI Express Expansion Plane interface on P2, up to 8GB/s bidirectional bandwidth ・Two 1000BASE-T, two 1000BASE-BX Ethernet interfaces ・One VITA 42.3 XMC mezzanine site ・Four EIA-232, two EIA-422/485 serial ports ・Three USB 2.0 interfaces ・Two SATA interfaces ・Power/Temperature sensors ・TPM Support (optional) ・VxWorks® BSP supporting SMP ・Linux LSP ・Continuum Vector AVX/SSE optimized DSP function library ・Continuum Insights multi-processor development tools ・Continuum IPC inter-processor communications library ・VITA 65 compliant per MOD6-PAY-4F1Q2U2T-12.2.1-11 ・Rugged air cooled and conduction cooled variants

・Quad Power Architecture 8640/8640D processors at up to 1.0GHz ・Up to 1 GB DDR2 SDRAM with ECC per processor ・Each processor has dual 64-bit memory banks ・VPX-REDI format (1" pitch) with 4 Serial RapidIO ports on P1 connector and option for one PCI Express port ・512Mbytes Flash with write-protection ・128 Kbytes NVRAM ・One XMC site supporting PCI Express ・Gigabit Ethernet to all processors with on-board switch ・VxWorks 6.x BSP and Driver Suite supporting Workbench 2.x IDE ・IPC inter-processor communications library ・Continuum Vector DSP function library with VSIPL support ・Continuum Software Architecture (CSA) firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function ・Designed for military harsh-environment applications, both air- and conduction-cooled

・6U OpenVPX format, support for 2 OpenVPX slot profiles ・Powerful dual processing node general purpose single board computer (SBC) ・Two (2) NXP (formerly Freescale) T2080 Quad-core 64-bit Power Architecture with Altivec @ 1.5GHz ・Up to 8 GB DDR3 SDRAM per processing node ・Full complement of I/O per processing node - Ethernet, serial (RS-232 and RS- 422), ・USB 2.0, 10G Ethernet TTL and differential discretes ・10Base-KX4 Ethernet data plane ports ・VxWorks 7.x BSP and Linux BSPs ・Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and update functions, built-in-test (BIT), and nonvolatile memory sanitization function ・Designed for harsh environment applications, both air- and conduction cooled ・Curtiss-Wright's TrustedCOTS enabled with large Xilinx user programmable FPGA. ・Supports NXP Secure Boot
