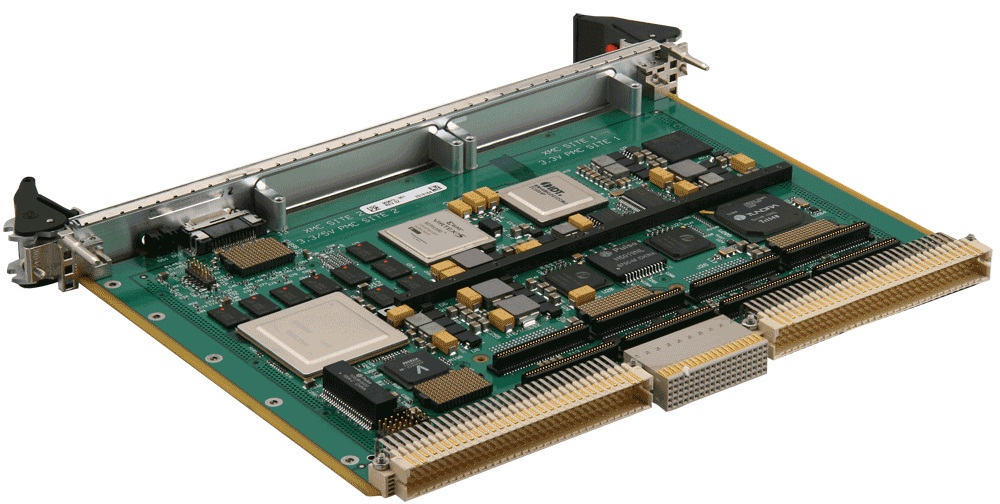

・Powerful general-purpose single board computer with Freescale 8640/8641 PowerPC processor ・Dual e600 cores at 1.0GHz ・2 GB DDR2 SDRAM controlled by dual 64-bit controllers ・Full complement of I/O capability (Ethernet, SCSI, serial, USB 2.0, 1553, Serial ATA, TTL and differential discretes...,) including front panel Gigabit Ethernet connection ・Two 64-bit PMCs on independent PCI buses ・Single PCIe XMC site ・2eSST-capable VME interface ・Software 　　・Continuum Software Architecture (CSA) firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function 　　・CWCDS Wind River VxWorks 5.5.1 and 6.7 　　・CWCDS Wind River VxWorks 6.8 SMP 　　・CWCDS Wind River Linux 3.0 　　・CWCDS Continuum Vector Signal Processing Software 　　・INTEGRITY available from Green Hills Software 　　・LynxOS available from LynxWorks 　　・MILS 2.0 available from Wind River ・Designed for military harsh-environment applications, both air- and conduction-cooled ・Latest VME version of Curtiss-Wright's backwards compatible with 17x and 18x series of single board computers

・Powerful general-purpose single board computer with Freescale P4040/4080 Power Architecture processor ・Freescale QorIQ™ P4080 Communications Processor with eight Power Architecture™ processor cores, high-performance datapath acceleration logic, network and peripheral bus interfaces required for mil/aerospace applications 　　・8 E500MC cores at up to 1.5GHz ・4 or 8 E500MC Cores running up to 1.5Ghz ・Up to 4 GB DDR3 SDRAM with ECC controlled by dual 64-bit controllers ・Full complement of I/O capability (Gigabit Ethernet, SCSI, serial (RS232/422/485 async/sync), USB 2.0, 1553, Serial ATA, TTL and differential discretes...,) including front panel Gigabit Ethernet connection ・Two 64-bit PMCs on independent PCI buses ・Two x8 PCIe XMC sites ・2eSST-capable VME interface ・8GB of solder NAND flash for integrated mass storage capability ・Software 　　・Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function 　　・CWCDS Wind River VxWorks 6.x SMP 　　・CWCDS Wind River Linux 4.x 　　・INTEGRITY available from GreenHills Software ・Designed for embedded harsh-environment applications, both air- and conduction-cooled ・Latest VME version of Curtiss-Wright's backwards compatible 17x and 18x series of VME single board computers

・Dual IPv4/v6, Fully managed, intelligent multi-layer gigabit Ethernet switch with a 6U VME64 form factor. ・Up to twenty four 10/100/1000 Mbps non-blocking auto-negotiating ports operating at wire-speed ・Flexible port combinations (4 Gigabit Ethernet (front), 4 Fiber Optic (to front) or 4 Fast Ethernet (to rear) ・Dual Broadcom BCM5690 managed switch devices with a Motorola MPC8245 control and management processor ・64 Mbyte SDRAM with ECC, 4 Mbyte boot flash, 32 Mbyte configuration flash ・Out of band backplane management and debug port (10/100 Ethernet), JTAG support, and serial interface ・Fully integrated Layer 2 switching, Layer 3 routing, Quality of Service (QoS), IP multicast, security and network management ・Intuitive command line interface, web interface and SNMP interface for easy configuration and network management ・Air-cooled and conduction-cooled versions available

・Fully managed, intelligent multi-layer (layer2/3) gigabit Ethernet switch in a 6U VME form factor ・Complete range of convection and conduction cooled formats (IEEE 1101.1 and IEEE 1102.1) with shock and vibration support ・Up to 24 x 1GbE (10/100/1000 Mbps) auto-negotiating copper interfaces (4 of the ports can be optical) ・Up to 2 x 10GbE (10 Gbps) XAUI interfaces ・Transient voltage suppressors on each GbE port to protect from electrostatic discharge (ESD), cable discharge events (CDE), lightening and other induced voltage surges ・Wirespeed performance for all packet sizes at layer 2 or layer 3 including jumbo packets ・EIA232 out of band serial management and 10/100 debug port ・Ideal for architecting IPv4, IPv4/v6, or pure IPv6 transformational network architecture with support for intelligent routing ・Flexible network management, monitoring, and configuration capability via CLI, Telnet, Web, and SNMP interfaces ・Supports latest switching/routing features for layer 2 switching; layer 2 multicasting; VLANs; Spanning Tree (Rapid and Multiple); link aggregation; port mirroring; CoS/QoS features; layer 3 IPv4/v6 routing; tunneling; IP Multicasting ・Ubiquitous security including Secure Memory Erase; user authentication; port based security; protocol-based security; broadcast storm control; secure sockets layer (SSL); secure shell (SSH); stateless firewall capability; flexible Access Control Lists (ACLs); Network Address Translation (NAT) ・Extensive Built in Test (BIT) capability including Power up BIT, Initiated BIT and Continuous BIT

・Two x4 VXS links to backplane ・Dual 4Gbit/s Fibre Channel ports ・Dual XMC/PMC sites with x8 PCI Express® (PCIe) or independent 64-bit 133MHz PCI-X ・667MHz AMCC PowerPC™ 440SP processor ・512MB high-speed streaming memory ・Xilinx® Virtex®-5 SX95T (standard) or LX155T ・512MB DDR2 SDRAM (4 banks of 128MB) ・Air- or conduction-cooled rugged versions ・Board Support Package (BSP) for VxWorks®

・Embedded storage using two 6U VXS (VITA 41) SATA Disk Carriers, each holding four 2.5” SATA disks, solid state or rotating hard disk drives ・High-speed off-load ・Compact Rugged Data Recorder ・VXS VITA41 data recording and playback system

Bootable : Can be used as a boot device CompactFlash : Socket for Type I and II Cards IDE Support : Connectors for both 40- and 44-Pin IDE Cabling LED Indicators : Activity and Power Master/Slave : Jumper Configurable Mounting Holes : for Flush Mount or L-Bracket Installation (brackets included) Power Interface for 40-pin IDE Software : No Drivers required; Compatible with Windows, Linux, QNX systems with IDE

・Size: 　　Height: .625" (15.875 mm) 　　Width: 3.0" (76.2 mm) 　　Depth: 5.0" (127 mm) ・Weight: 5.5 oz. (156 grams) ・LED: 1 Red & 2 Green ・Memory Size 　　SLC: 128, 256, or 512GB 　　eMLC: 128, 256, 512 GB or 1 TB ・MTBF 　　GF, 40°C: 328,000 hours 　　AIC, 30°C: 180,000 hours 　　ARW, 30°C: 56,300 hours ・Temperature 　　Operating: -40 to +85°C 　　Non-operating: -40 to +85°C

Applications • 24 / 28V DC-DC Conversion for PC/104, PC/104-Plus, PCI-104, PCIe104, PCI/104-Express and Other Small Form Factor Embedded Systems • Compliance with MIL-STD-1275, MIL-STD-704, MIL-STD-461 Surges, Spikes, Conducted Emissions in Aerospace / Avionics / Military / Ground Vehicles Form Factor • PWR-21-11: PC/104-Plus (ISA + PCI) • PWR-22-11: PCI/104-Express (PCI + PCIe) Compliance • Designed to Meet MIL-STD-810G (Environmental), MIL-STD-1275D and MIL-STD-704F (Voltage Input, Surges, Spikes, Transients), MIL-STD-461F (Conducted Emissions & Susceptibility) Voltage Input • Nominal 28.0 V DC (+18V to +36VDC with Support for 250V Spike and 100V Surge per MIL-STD-1275, as well as 1500V DC Galvanic Isolation) Voltage Output • Up to 100 Watts: +5V @ 10A (50W Max), +3.3V @ 15A (50W Max), +12 V @ 1.5A (18W Max – 12V derived from 3.3V rail) • Optional 50 Watt 5V Only Configuration: +5V @ 10A (50W Max) Remote Shutoff • Remote Power on/off Shutdown Support

・Xilinx Kintex-7 K325T (-2) FPGA ・32-differential digital IO pairs (LVDS, etc) front panel (air-cooled only) ・32-differential digital IO pairs (LVDS, etc) PMC P4 connector or 20 differential pairs + 38 single ended digital IO XMC P6 ・Two banks of 128M x 16bit DDR3 SDRAM ・1Gbit FLASH for FPGA configuration ・VxWorks and Linux support ・FusionXF support for VxWorks and Linux (contact factory for Windows) ・XMC (PCIe) format ・Air-cooled (AC L0, AC L100) or Conduction-cooled (CC L200)
