2-Slot, 6U/3U VPX Development SystemType 39 E-Frame

Features
• 2-slot test & development platform for 3U and 6U VPX and OpenVPX™ boards
• Each slot can be configured independently for power requirements
• 1.6” slot pitch accommodates wider modules compatible with VITA 48.5 (air
flow-through), and provides easy access to components on either side of boards
• More than two modules may be interconnected with additional 2-slot backlanes
• Enables use of standard VPX RTM modules and access to J1 high speed signals
• Chassis power input: 90-264 VAC autoranging, total power 700 watts
• High performance cooling fans

Aluminum construction with scratch-resistant black painted finish
• Built-in Voltage Monitor with green LEDs for bus voltages compliance
• Top handle for ease of portability, desktop feet on bottom

2-Slot, 6U/3U VPX Development SystemType 39 E-Frame

ELMA 筐体 VPX

Features • 2-slot test & development platform for 3U and 6U VPX and OpenVPX™ boards • Each slot can be configured independently for power requirements • 1.6” slot pitch accommodates wider modules compatible with VITA 48.5 (air flow-through), and provides easy access to components on either side of boards • More than two modules may be interconnected with additional 2-slot backlanes • Enables use of standard VPX RTM modules and access to J1 high speed signals • Chassis power input: 90-264 VAC autoranging, total power 700 watts • High performance cooling fans • Aluminum construction with scratch-resistant black painted finish • Built-in Voltage Monitor with green LEDs for bus voltages compliance • Top handle for ease of portability, desktop feet on bottom

2-Slot, 6U/3U VPX Development System Type 39 E-Frame

ELMA 筐体 VPX 防衛

特長

3Uおよび6U VPXおよびOpenVPX™ボード用の2スロット・テスト＆開発プラットフォーム
各スロットは電源要件に合わせて個別に構成可能
1.6インチのスロットピッチは、VITA 48.5（エアフロースルー）互換の幅広モジュールに対応し、ボードの両側のコンポーネントに容易にアクセスできます
追加の2スロット・バックレーンを使用することで、2つ以上のモジュールを相互接続できます
標準VPX RTMモジュールの使用とJ1高速信号へのアクセスが可能
シャーシ電源入力：90～264VACオートレンジ、合計電力700W
高性能冷却ファン
傷に強い黒色塗装仕上げのアルミニウム製筐体
バス電圧コンプライアンス用の緑色LEDを備えた電圧モニターを内蔵
持ち運びに便利な上部ハンドル、底面にはデスクトップ脚を装備

ATR IO Panel

ELMA バックプレーン VPX 防衛

・High speed VPX style connector interface to the OpenVPX backplane ・Military 38999 connectors which provide the I/O connectivity for the chassis

ATR – Air Cooled Enclosures

ELMA 筐体 VPX 防衛

・Size: 1/2 ATR, 3/4 ATR, 1 ATR, 1ATR short ・Supports Bus Structure: VPX (VITA 46), OpenVPX (VITA 65/68), VPX-REDI (VITA 48), VME64x, VME, VXS (VITA 41) or CompactPCI ・Cable-free Enclosure: This design feature improves reliability by eliminating one of the most common sources of failure - the interconnecting cables. It also reduces overall size. Custom front panels can be designed to accommodate customer-specific applications that plug directly into the backplane, reducing the space consumption of the “bend radius” cabling requirement.

3U/6U VPX Tower Chassis

ELMA 筐体 OpenVPX 鉄道/交通生産中止品(EOL)

・Description: Mixed 3U/6U Desktop Tower Development Platform ・Size: 16.97" wide x 21.38" high x 16.2" deep ・Slot Count: 2 Slots, (1) 6U VPX slot and (1) 3U VPX slot 3" Pitch ・Supported Bus Structures: VPX (VITA 46/48/65/68) ・Cooling: Forced Air Conduction Cooled, supports conduction cooled payload

3U 6-slot cPCI-OpenVPX Backplane

ELMA バックプレーン CompactPCI 試験　環境

・Description: Custom Hybrid cPCI/OpenVPX backplane ・Slot Count: 2x 3U OpenVPX, 1x 3U cPCI, 2 expansion, and 1 custom power supply ・Supported Bus Structure: CompactPCI, OpenVPX ・Size: 3U

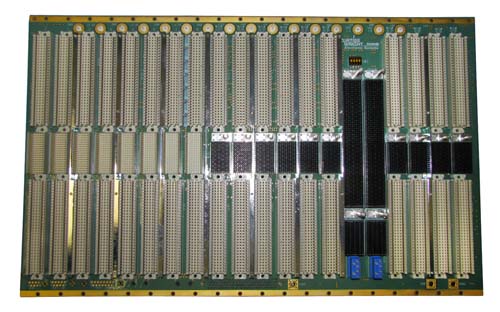

6U 20-slot VME64x/VXS Backplane

ELMA バックプレーン VMEbus 防衛

・Description: Custom VME64x/VXS Backplane ・Slot Count: 2 VXS switch, 8 VXS payload, and 8 VME64x ・Supported Bus Structures: VXS (VITA 41), VME64x ・Size: 6U

VPX/OpenVPX Backplanes

ELMA バックプレーン VPX 防衛

・Description: VPX (VITA 46.x) Backplanes ・Bus Structure: OpenVPX (VITA 65), VPX (VITA 46.x/48.1) and Hybrid VME64x/VPX ・Size: 3U and 6U ・Slot Count: Currently available in OpenVPX, VPX, and Hybrid VME64x/VPX configurations, with slot counts up to 16 slots. See the backplane fact datasheet for details. ・Provisions for mechanical stops to prevent mis-insertion of payload cards ・Stiffeners placed every other slot to ensure backplane rigidity ・Signal Integrity compliant per VITA 68, up to 6.25 Gbaud ・High performance 6.25 Gbaud backplanes compatible with Serial RapidIO (SRIO), gen 2 and PCI Express (PCIe) gen 2 - 2 level backdrill and 5 Gbaud operation expansion plane fabrics ・3.125 Gbaud backplanes compatible with SRIO gen 1 and PCIe gen 1 - 1 level backdrill ・Optional rear transition connectors ・Optional conformal coating ・RF backplanes per VITA 67.0 and VITA 67.1 available

VXS Backplanes

ELMA バックプレーン VMEbus 試験　環境

・Compliant to the latest VXS switch fabric VITA standards 　　・VITA 41.0 VXS VMEbus Switched Serial standard 　　・VITA 41.1 VXS InfiniBand™ Protocol Layer standard 　　・VITA 41.2 VXS Serial RapidIO® (sRIO) Protocol Layer standard 　　・VITA 41.3 VXS Gigabit Ethernet (GbE) Protocol standard 　　・VITA 41.4 VXS PCI Express® (PCIe) Protocol standard 　　・Curtiss-Wright's superior signal integrity built-in VMEbus tested to 320 Mbytes/s per VITA 　　　1.5, 2eSST 　　・ANSI/VITA 1.7-2003 increased current level for 96-Pin and 160-Pin DIN/IEC Connector 　　　standard 　　・ANSI/VITA 38-2003 System Management Draft standard 　　・ANSI/VITA 1.1-1997 VME64x standard as modified by VITA 41.0 (P0/J0 connector and switch slots) 　　・ANSI/VITA 1.5-2003 2 eSST (Source Synchronous Transfer) ・Stiffeners placed every two slots ensure board rigidity ・20-layer low noise stripline design with outside layers incorporating a chassis ground EMI shield ・Standard versions 6, 8 12, 21 slots 　　・6-slot and 8-slot versions feature one VITA 41.x switch slot and up to seven VITA 41.x payload slots, each payload slot connects both links to the one switch slot 　　・12-slot and 21-slot versions features two VITA 41.x switch slots and up to 18 VITA 41.x payload slots with 4x links to two switch slots
