Unified 1 GHz quad-core CPU for, Shelf Manager, and Fabric management Automatic fail-over with redundant VPX008 1GbE base switch with dual 100/1000/10G uplink Full Layer 3 managed Ethernet switch

Versatile Layer 2 managed Ethernet switch Total of 24 Ports of 10GbE Up to eight SFP+ Ports on the front panel Unified 1 GHz quad-core CPU for Shelf Manager, and Fabric management

VME compliant (only takes power from the VME bus) Managed Layer two and layer 3 switch/12 ports of 10/100/1000 via RJ-45 on the base board front panel IEEE 802.3-2005/IEEE 802.3ad (Link aggregation)/IEEE 802.1p (Prioritization)/IEEE 802.1Q (VLAN tagging) IEEE 802.1Q (Spanning Tree Protocol)/IEEE 802.1Q-2005 Multiple Spanning Tree Protocol (MSTP) The VME215 is a 6U single slot VME module that has 12 ports of 10/100/1000 GbE via RJ-45 on its baseboard front panel. The switch is managed via VadaTech Switch Management with SSH and SNMP for switch remote management and supports a rich set of features such as Link aggregation, Prioritization, VLAN, STP, MSTP, etc. /The module supports standard +5V power supply from backplane.

Up to 24 ports of IEEE 802.3 1000BASE-T Gigabit Ethernet • Fully managed multi-layer switching with CLI, SNMP and web-based interfaces • Extensive networking feature set for segmentation, filtering, QoS and traffic management • Optional Gigabit optical interfaces • Supports services XMC for routing, security or network services • Available in standard air-cooled and conduction-cooled rugged form factors

• 5 Auto-Crossover Ethernet/ Fast Ethernet Ports. VLAN: • Port-Based Field-Programmable VLAN (select models only). Settings stored in local onboard memory. Simple Network Installation: • Auto-MDI/MDIX, Auto-Negotiation and Speed Auto-Sensing Local/Remote Ethernet: • Choice of onboard RJ-45 jacks or 4-pin locking Molex headers for Ethernet connections Standalone Capable: • Can be used as a standalone network switch or in combination with an embedded system supporting a PC/104 bus. BUS or External Powering: • 16-bit PC/104 Bus or 2-Pin Molex Power Header for External Power Connections Switching: • Pause Frame-Based Switch Fabric Delivers True Non-Blocking Activity Indication: • LED Activity Indicators for Each Channel

Rugged embedded Gigabit Ethernet switch • Small form factor: up to 20 ports on single 3.6” x 3.8” card • Layer 2 fully managed network switch with Layer 3 static routing capability • Low-power, Energy Efficient Ethernet (802.az) compliant • IEEE-1588v2 Precision Timing Protocol (PTP) support • Qual tested to MIL-STD-810 for wide temperature operation (-40 to +85°C) and high shock/vibration

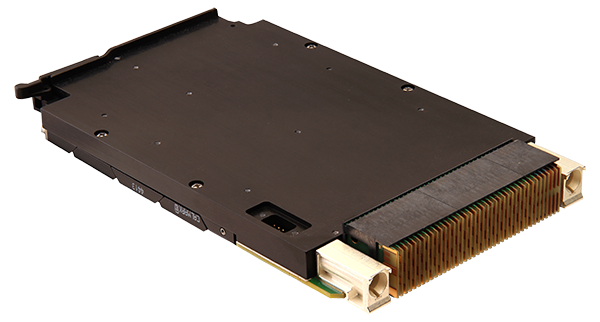

3U VPX™ Form Factor • Full support for IPv4 and IPv6 networks • 16 or 20 Gigabit Ethernet ports to the VPX backplane • High-performance Layer 2+ network features • Fast boot architecture with extensive Built-in Test (BIT) • IPMI to support system-wide health management • Extremely low-power operation (11W typical) • Air-cooled and conduction-cooled variants • Industry-leading technical and lifecycle management support

12-port Gigabit Ethernet switch Supports 8-port 10/100/1000Base-T plus 4 ports 1000Base-X (SerDes) Various port combinations supported for PMC and XMC mezzanine sites Non-blocking line-speed Ethernet switching Supports jumbo packets up to 9K bytes IEEE 802.3 compliant Managed Layer-2 features include VLAN, L2 multicast, QoS services Support for port mirroring and link aggregation Flexible I/O on Pn4 and Pn6 XMC or PMC with Pn4 I/O supports 8 ports Base-T-- XMC with Pn6 I/O supports 5 ports Base-T or 3 ports Base-T plus 4 ports Base-X (SerDes) XMC with Pn4/Pn6 I/O supports 8 ports Base-T on Pn4 plus 4 ports Base-X (SerDes) on Pn6 No software required, only power and I/O from basecard Range of air and conduction-cooled ruggedization levels available

Fully managed multi-layer Ethernet switching in a standards-compliant module • 20 high-speed Ethernet ports offering 8x 10GBASE-KR and 12x 10GBASE-T interfaces + 10GBASE-KR ports also support 1000BASE-KX and 40GBASE-KR4 configurations + 10GBASE-T ports support 1000BASE-T and 100BASE-TX • Includes IEEE-1588v2 features for PTP and accurate time synchronization • Available in standard air-cooled and conduction-cooled rugged form factors

Multifunction 　　・Combined High-Performance Multi-core x86 Computer and IP Network Router System 　　・Scalable Functionality: Optional Integrated Ethernet Switch and PCIe104 I/O Modules 　　・Replacement for Multiple Boxes to Reduce Size, Weight & Power (SWaP), Simplify System Integration, and Support IP Network-Centric Architecture Tech Refreshes High Performance Computer 　　・CPU: Intel Core i7 Processor, 2.2 GHz, Dual-Core, 8 GB DRAM, Integrated GPU 　　・Connectivity & I/O: Gigabit Ethernet LAN Interface, 6x USB 2.0, 2x RS-232 Serial, 16x 　Discrete DIO, VGA & HDMI Video, Stereo Audio, PS2 　　・Storage: Dual Slots for Removable 2.5” SATA Solid State Disks (on Rear) 　　・Expandable: Modular Interlocking Chassis Design Supports Stackable PCIe104 I/O Card Expansion for High Speed Interconnect (2-3 Card Slots Per Expansion Chassis Segment, i.e. MIL-STD-1553/429, DIO, FPGA, Frame Grabber) Cisco Router 　　・Cisco 5915 IOS-Managed Router with Enterprise IOS Software for Robust Security, Management, QoS, VLAN, IPv4 / IPv6 Routing, IP Mobility 　　・Integrated Services Router (ISR) Features Support Concurrent Data, Video, and Voice Services, Firewall and Hardware AES Encryption Acceleration 　　・Optional Integrated Ethernet Switch for additional network ports Rugged Mechanical Design 　　・Leverages Rugged MIL-STD Design / Qual-Testing Pedigree of DuraCOR 80-40 Computer, DuraMAR 5915 Router, and DuraNET Switches 　　・Designed for MIL-STD-810G Shock, Vibration, Thermal, Altitude, Humidity 　　・Fanless Extended Temp Operation with No Moving Parts 　　・Corrosion-Resistant, Aluminum Chassis Sealed Against Water, Dust, EMI 　　・Sealed, Hinged Panel on Rear for Dual Removable SATA SSD Storage 　　・Circular MIL-DTL-38999 Connectors for Reliable I/O Connections 　　・Filtered, Transient-Protected Power Supply for Aircraft and Vehicle Use 　　・Designed to MIL-461F/DO-160 Conducted/Radiated Emissions & Susceptibility 　　・Conformal Coating for Humidity/Tin-Whisker Mitigation 　　・Flexible / Robust Mounting – Base Flange Mount or Side Boss Mount
