・6U OpenVPX™ form factor ・One or two NVIDIA® Fermi architecture GPUs 　　・240-cores 　　・2 Gbytes GDDR5 memory 　　・256-bit wide memory bus 　　・80 Gbyte/s memory bandwidth 　　・16-lane Gen2 PCIe interface ・Dual DVI graphics outputs ・Temperature sensors ・Voltage sensor ・Current sensor ・Intelligent Platform Management Interface (IPMI) support ・12V power ・Level 100 air-cooled, level 200 conduction-cooled, and air flow through ・CUDA 5.0 support for Linux ・OpenVPX profile draft MOD6-PAY-4F2Q2U2T-12.2.7-n

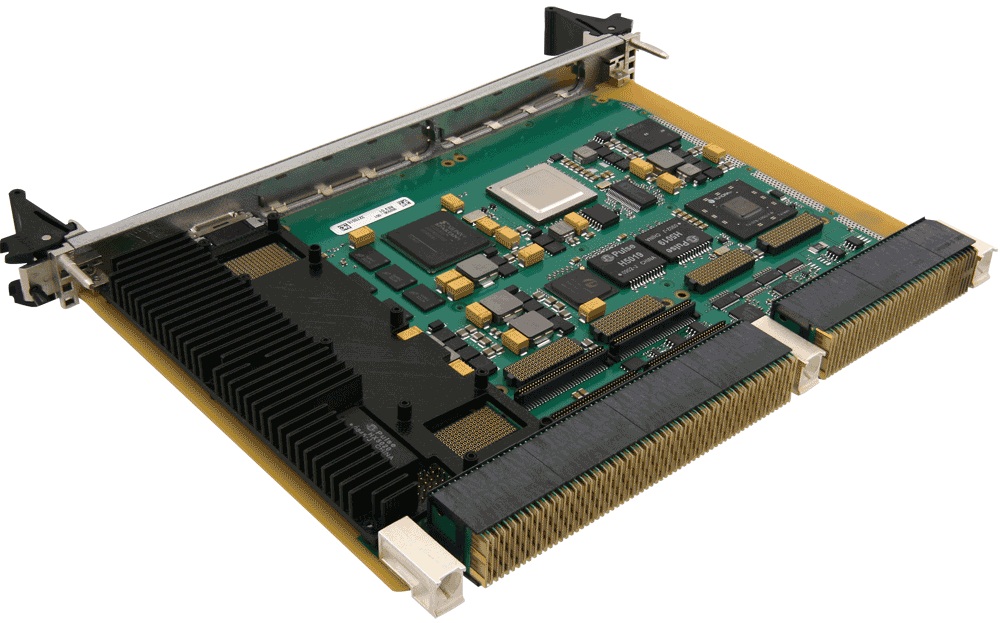

・Freescale QorIQ™ P4040/4080 Communications Processor with eight Power Architecture™ processor cores, high-performance datapath acceleration logic, network and peripheral bus interfaces required for mil/aerospace applications 　　・8 E500MC cores at up to 1.5GHz ・Up to 4 GB DDR3 SDRAM with ECC controlled by dual 64-bit controllers ・Full complement of I/O capability (Gigabit Ethernet, serial, USB 2.0, 1553, Serial ATA, TTL and differential discretes...,) ・One PMC/XMC sites supporting parallel PCI or PCI Express, P64S + X12D ・One x8 PCIe XMC site with full complement of XMC I/O, X8D+12D+38S ・Two 64-bit PMCs on independent PCI buses ・VPX/VPX-REDI formats backwards compatible with CWCDS' VPX6-185 ・Software 　　・Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and updated functions, BIT, and non-volatile memory sanitization functions 　　・CWCDS Wind River VxWorks 6.x SMP 　　・CWCDS Wind River Linux 4.x 　　・INTEGRITY available from GreenHills Software 　　・MILS 2.1 available from Wind River ・Designed for military harsh-environment applications, both air- and conduction-cooled ・Second generation VPX card in Curtiss-Wright's popular 18x series of VPX single board computers

製品カテゴリ スイッチ/ルーター フォームファクタ ・16-port Gigabit Ethernet Switch 　　・Non-blocking architecture supports tri-speed operation (10/100/1000Mbps) with auto-negotiation and auto-MDIX 　　・Energy Efficient Ethernet (EEE) with built-in status LEDs and cable diagnostics 　　・Feature-rich networking support includes IPv4/v6, VLANs, IGMP multicast, QoS, MSTP/RSTP, link aggregation, port mirroring, jumbo frames 　　・Powerful in-band (HTTP/Telnet/SNMP) and out-of-band (RS-232) switch configuration and management 　　・Hardware support for IEEE-1588 Precision Time Protocol with nanoseconds timing synchronization ・Vehicle Management Computer with Flexible Vetronics Interfaces 　　・Vehicle Management Framework (VMF) provides a software interface for rules-based vehicle management and control, with interfaces to CBM+/HUMS and VICTORY 　　・Vehicle interfaces include multiple CANbus ports, audio and video (camera) interfaces, and analog/digital IO interfaces 　　・Local display (VGA/DVI) and remote monitoring via web/HTTP services ・VICTORY Architecture Compliance 　　・Support for VICTORY Data Bus and Platform Services, including centralized distribution of time, position, speed, heading, and orientation 　　・External GPS (DAGR compatible) and Inertial Navigation interfaces 　　・Optional internal GPS receiver (GB-GRAM or Polaris Link) saves valuable vehicle space 　　・Can chain one GPS to multiple DBH units 　　・Interfaces support 1 PPS input for time accuracy 　　・VICTORY and GVA compliant MIL-STD-38999 pinouts ・Designed for Rugged Military Applications and Environments 　　・Small footprint: 10.5” x 7.5” x 3.0” 　　・Low weight: 6.5 lb 　　・Wide operational temperature: -40°C to +71°C natural convection design also supports cold-plate to +85°C 　　・28V DC power compliant to MIL-STD-1275D with optional Nuclear Event Detector (NED) 　　・Designed to meet MIL-STD-810 and MIL-STD-461

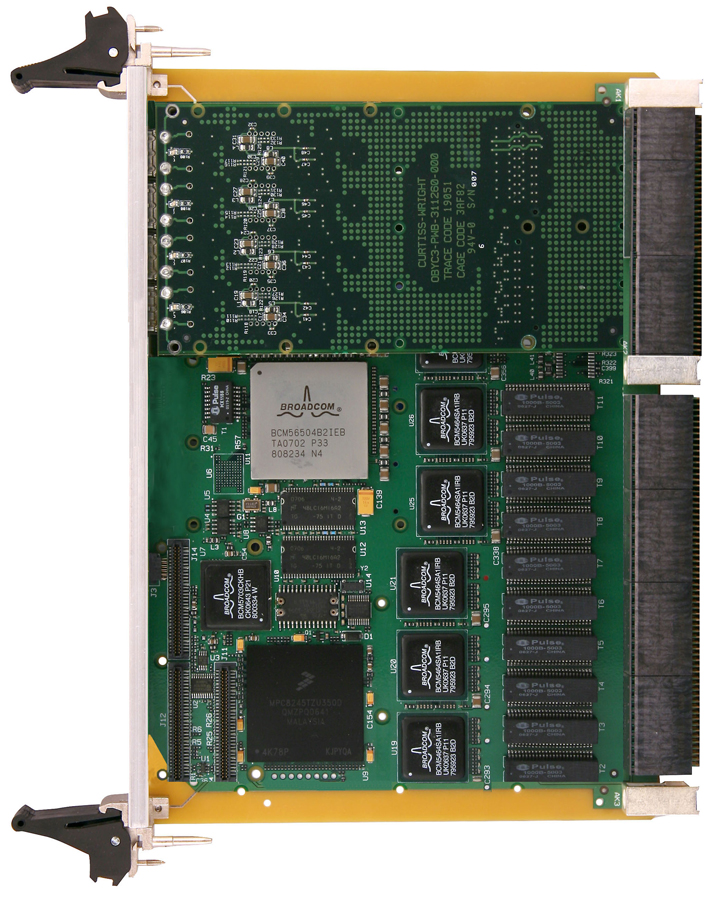

・Fully managed, intelligent multi-layer (layer2/3) gigabit Ethernet switch in a 6U VPX form factor ・Complies to OpenVPX switch profile: SLT6-SWH-4F24T ・Complete range of convection and conduction cooled formats (IEEE 1101.1 and IEEE 1102.1) with shock and vibration support ・Up to 24 x 1GbE (10/100/1000 Mbps) auto-negotiating copper interfaces (4 of the ports can be optical) ・Up to 4 x 10GbE (10 Gbps) XAUI interfaces ・Transient voltage suppressors on each GbE port to protect from electrostatic discharge (ESD), cable discharge events (CDE), lightening and other induced voltage surges ・Wirespeed performance for all packet sizes at layer 2 or layer 3 including jumbo packets ・EIA232 out of band serial management and 100Base-T debug port ・Ideal for architecting IPv4, IPv4/v6, or pure IPv6 transformational network architecture with support for intelligent routing ・Flexible network management, monitoring, and configuration capability via CLI, Telnet, Web, and SNMP interfaces ・Supports latest switching/routing features for layer 2 switching; layer 2 multicasting; VLANs; Spanning Tree (Rapid and Multiple); link aggregation; port mirroring; CoS/QoS features; layer 3 IPv4/v6 routing; tunneling; IP Multicasting ・Ubiquitous security including Secure Memory Erase; user authentication; port based security; protocol-based security; broadcast storm control; secure sockets layer (SSL); secure shell (SSH); stateless firewall capability; flexible Access Control Lists (ACLs); Network Address Translation (NAT) and Multi-cast NAT ・Extensive Built in Test (BIT) capability including Power up BIT, Initiated BIT and Continuous BIT.

・3U VPX form factor, complies with OpenVPX™/VITA 65 standards 　　・Supports OpenVPX profiles MOD3-SWH-16T and MOD3-SWH-8U12T ・Up to 20 Gigabit Ethernet ports with flexible port configurations to rear VPX backplane: 　　・12x 10/100/1000Base-T ports plus 8x 1000Base-X (SerDes) ports 　　OR 16x 10/100/1000Base-T ports 　　・Additional front panel Ethernet port on air-cooled models ・High-performance Layer 2+ network features: 　　・Non-blocking architecture supports tri-speed operation (10/100/1000Mbps) with auto-negotiation and auto-MDIX on Base-T ports 　　・Feature-rich networking support includes IPv4/v6 support, VLANs, IGMP multicast, QoS, MSTP/RSTP, link aggregation, port mirroring, and jumbo frames 　　・Static routing for WAN connectivity 　　・Energy Efficient Ethernet (EEE) with cable diagnostics. Status LEDs on air-cooled models 　　・Hardware support for IEEE-1588 Precision Time Protocol (PTP) 　　・Powerful in-band (HTTP/Telnet/SNMP) and out-of-band (RS-232) switch configuration and management ・Fast boot architecture with extensive Built-In Test (BIT) and declassification capability for secure erasure ・Extremely low power operation (<15W typ) ・Air-cooled and conduction-cooled versions ・Industry leading technical and life-cycle management support

・6U OpenVPX (VITA 65) ・Dual user-programmable Xilinx Virtex-6 FPGAs (SX475T or LX550T), each with: 　　・2 GB DDR3 SDRAM in two banks 　　　・Supports migration to 4 GB per FPGA 　　・72 MB QDRII+ SRAM in four banks ・Freescale Power Architecture MPC8640D processor 　　・Running at 1 GHz 　　・1 GB SDRAM in two banks ・Two Mezzanine sites with support for FMC (VITA 57) ・On-board SRIO 1.3 switch 　　・Four 4-lane fabric ports to the backplane 　　・4-lane ports to both user FPGAs and the MPC8640D processor ・Thermal sensors for monitoring board temperatures ・Sensors for monitoring board power consumption ・Support for ChipScope™ Pro and JTAG processor debug interfaces ・Multi-board synchronous clock ・FusionXF BSP and FPGA design kit with highly-optimized IP Blocks, development environment, reference designs, scriptable simulation test benches and software libraries 　　・VxWorks® and Linux® variants available ・Continuum IPC - inter-processor communications middleware available ・Continuum Vector subroutine library available ・VITA 48 1” pitch format 　　・Ruggedization levels 　　　・Level 0 (Commercial) 　　　・Air-cooled level 100 　　　・Conduction-cooled level 200

・VITA 46 3U VPX form factor ・Full range of environmental build grades ・SATA Storage ・Various I/O options Benefits ・Easy control data recording, playback and analysis ・Deployment in benign or severe environments ・Higher performance (from hundreds of MB/s to GB/s) from clustered recorders and/or storage ・Optimized disk recording platforms for maximum sustained bandwidth

Dual NVIDIA Quadro Turing TU104 (RTX5000E) GPUs for 22 TFLOPS & 22 TIPS 6144 CUDA® cores, 768 Tensor Cores, 96 RT Cores

Ports : 5 Auto-Crossover Ethernet/Fast Ethernet Ports VLAN : Port-Based Field-Programmable VLAN (select models only). Settings stored in local onboard memory. Simple Network Installation : Supports Auto-MDI/MDIX, Auto-Negotiation and Speed Auto-Sensing Local/Remote Ethernet : Choice of onboard RJ-45 jacks or 4-pin locking Molex headers for Ethernet connections Activity Indicators : LEDs for RX/TX and connectivity; Support for remote monitoring of LED activity (set of 4-pin Molex connectors for user-supplied LEDs) Standalone Capable : Can be used as a standalone network switch or in combination with an embedded system supporting a PC/104 bus. Bus or External Powering : 16-bit PC/104 Bus and 2-Pin Molex Power Header for External Power Connections Switching : Pause Frame-Based Switch Fabric Delivers True Non-Blocking Switching; Store-and-Forward Switching Mode

Small Form Factor Ethernet Switch 　　・20-Ports of 10/100/1000Mbps Gigabit Ethernet in Size, Weight & Power (SWaP) Optimized Chassis: Only 4 lbs. Weight, < 3” Height, 112 Cubic Inches in Size, < 25 Watts Max Power 　　・Carrier Ethernet Switch Engine with Embedded 32-Bit Management Processor 　　・Robust Layer 2 Switching and Network Management Software Support 　　・Extremely Low Power Design: Energy Efficient Ethernet (IEEE-802.3az) Support with Low-Power PHYs and Smart Cable Reach Technology Management 　　・Carrier Ethernet Services Software Deliver Rich Layer-2 Switch Features, Layer 3-Aware Packet Processing, Service Classification and Traffic Policing; IEEE- 1588 Precision Timing Protocol and Hardware Accurate Timestamping 　　・L2 Switch Management: 10/100/1000 Mbps Gigabit Ethernet Connectivity, IPv4 / IPv6 Multicast, VLAN, QoS/CoS Traffic Prioritization, Multiple/Rapid Spanning Tree, Link Aggregation, IEEE-1588 Precision Timing Protocol 　　・Layer 3 IPv4 / IPv6 Unicast Static IP Routing to Attached WAN / Radio Ports 　　・SNMPv3, HTTP Server, Web GUI, RS-232 Console CLI, Port Monitoring, RMON, Syslog, Network Access Server (NAS), 802.1X Authentication, IGMP Snooping, Access Control Lists (ACLs), Zeroization, Built-in-Test (BIT) Diagnostics Rugged MIL-STD-Design 　　・Designed to Meet Harsh MIL-STD-810G & DO-160 Conditions (Temp, Shock, Vibration, Humidity, Altitude, Dust/Water Ingress) 　　・Designed to Meet DO-160 & MIL-STD-461F EMI/EMC (Conducted & Radiated Emissions & Susceptibility) and MIL-STD-1275 & 704 Power Input and Transient Protections 　　・-40 to +71C Fanless Extended Temp Operation with No Moving Parts 　　・Corrosion-Resistant, Aluminum Chassis Sealed Against Water, Dust, EMI 　　・Circular MIL-DTL-38999 Connectors for Reliable Network Connections 　　・Filtered, Transient-Protected Power Supply for Aircraft and Vehicle Use 　　・Data Zeroization Support to Sanitize Configuration Information
