条件に該当する製品470件
-

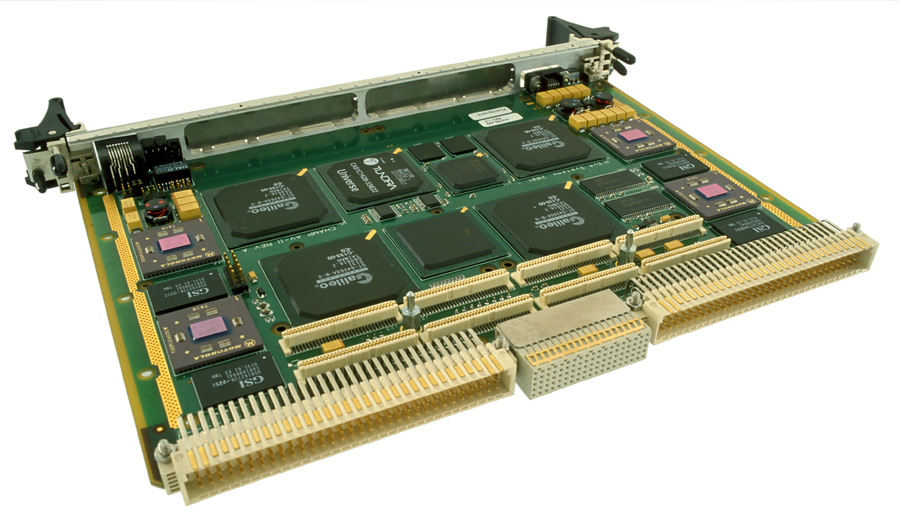

CHAMP-AV4 6U VME Quad 7448
Curtiss-Wright PowerPC (FreeScale) VMEbus 防衛 生産中止品(EOL)・Quad PowerPC™ 7447A/7448 processors at up to 1.25 GHz ・64 Kbytes L1 and 1 Mbyte (7448) L2 internal caches operating at core processor speed ・Up to 512 Mbytes DDR-250 SDRAM with ECC per processor (2 Gbytes total) ・256 Mbytes Flash with write protection ・128 Kbytes NVRAM ・QuadFlow architecture with 3.2 GB/s peak on-board throughput ・Each processor has Gbe connection to on-board GbE switch ・Two ports from GbE switch routed to backplane ・VME interface with 2eSST support ・Support for two 64-bit, 100 MHz PCI-X mezzanine modules (PMC-X) ・Four EIA-232 serial ports, one per processor node ・Support for StarFabric PMC modules with differential routing to backplane ・Multi-board synchronous timer ・Eight discrete LVTTL I/O signals, 2 selectable as interrupt inputs ・VxWorks® 6.x & 5.x BSPs ・Linux SDK from Curtiss-Wright (2.6 kernel) ・Green Hills INTEGRITY® BSP ・IPC inter-processor communications library ・Gedae graphical development environment support ・Continuum Vector optimized AltiVec DSP function library with VSIPL support ・Range of air and conduction-cooled ruggedization levels available
-
XMC-651PMC-651 5/7/8/12-Port Gigabit EthernetSwitch
Curtiss-Wright HUB PMC/XMC 防衛12-port Gigabit Ethernet switch Supports 8-port 10/100/1000Base-T plus 4 ports 1000Base-X (SerDes) Various port combinations supported for PMC and XMC mezzanine sites Non-blocking line-speed Ethernet switching Supports jumbo packets up to 9K bytes IEEE 802.3 compliant Managed Layer-2 features include VLAN, L2 multicast, QoS services Support for port mirroring and link aggregation Flexible I/O on Pn4 and Pn6 XMC or PMC with Pn4 I/O supports 8 ports Base-T-- XMC with Pn6 I/O supports 5 ports Base-T or 3 ports Base-T plus 4 ports Base-X (SerDes) XMC with Pn4/Pn6 I/O supports 8 ports Base-T on Pn4 plus 4 ports Base-X (SerDes) on Pn6 No software required, only power and I/O from basecard Range of air and conduction-cooled ruggedization levels available
-
CHAMP-AV6 OpenVPX Quad 8641D
Curtiss-Wright PowerPC (FreeScale) VPX 防衛 生産中止品(EOL)・Quad PowerPC 8640/8640D processors at up to 1.0GHz ・Up to 1 GB DDR2 SDRAM with ECC per processor ・Each processor has dual 64-bit memory banks ・VPX-REDI format (1" pitch) with 4 Serial RapidIO ports on P1 connector and option for one PCI Express port ・512Mbytes Flash with write-protection ・128 Kbytes NVRAM ・One XMC site supporting PCI Express ・Gigabit Ethernet to all processors with on-board switch ・VxWorks 6.x BSP and Driver Suite supporting Workbench 2.x IDE ・IPC inter-processor communications library ・Continuum Vector DSP function library with VSIPL support ・Continuum Software Architecture (CSA) firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function ・Designed for military harsh-environment applications, both air- and conduction-cooled
-
Air Blockers
Curtiss-Wright パネル VPX 試験 環境・Full range of sizes from 3U x160 mm and 6U x 160 mm to 9U x 400 mm Compatible with VME, VXI, VME64x, OpenVPX and CompactPCI (cPCI) ・Silver-filled elastomeric EMI gaskets eliminate problems associated with competitive metal gaskets (i.e. no sharp edges, no snags) ・Air dams may be located on the upper or lower edges, blocking the airflow in and out of the empty slot ・Front panels provide the system with an EMI seal (VME64x, OpenVPX and CompactPCI® versions) as well as a finished appearance and easy maintenance ・Contain provisions for mounting internal hard drives
-
ACS-5151 PC104 Power Supply
Curtiss-Wright 電源 PC104 試験 環境Function : PC/104 DC-DC Converter Vehicle Power Supply Voltage Input : • Vin: +8V to +40V DC Input Range w/High Transient Voltage Margin (50V 1ms) • Reverse Over-voltage and Load Dump Protected; • Input Protected with Automotive Transient Voltage Suppressor, 6600W 10/1000us • Suitable for 12 or 24 V Battery Installations Voltage Output : • VOut: +5V, +12V, +3.3V DC Power Output : • Output Power: +5V @ 10A, +12V @ 2A, +3.3V @ 2A • 50 Watt Combined Output Power (-40°C to +85°C) EMI Input Filter : Onboard Input Filter Designed for Compliance to MIL-STD-461, CE, and EN-55022 Class B Conducted and Radiated Emissions as Part of Overall System Design Status : LED Status Indicators for Power Outputs Remote Shutdown : Remote Shutdown Support (SHDN-jumper)
-
ACR5326/7 6U VPX Carrier Card
Curtiss-Wright キャリア拡張カード PMC/XMC 試験 環境・6U VPX Carrier Card ・Compatible with VITA 65 module/slot profiles: ・MOD6-PER-1Q-12.3.5-1 ・MOD6-PER-1Q-12.3.5-2 ・The board is compatible with payload profiles but has no hosting capabilities ・Available in conduction cooled versions. For air-cooled versions, please contact Curtiss-Wright. ・Supports two XMC or PMC mezzanine module ・PMC site is PCI 3.0 compliant, 32/64-bit, 33/66MHz, up to 1GB/s ・PMC site is PCI-X 2.0 compliant, 32/64-bit, 66/133MHz, up to 1GB/s ・XMC site is PCIe Gen 2.0 and 8 lanes wide ・Front or rear panel I/O support for PMC site. Rear I/O is compliant to VITA 46.9.
-
6U 5-slot MPMC-9H5x
Curtiss-Wright 筐体 VPX 防衛・Form factor: 1/2 ATR with hybrid backplane (1x VME, 2x 6U VPX, and 2x 3U VPX) ・Mechanical ・Natural convection cooling ・Volume optimized size: 14.2" x 9.0" x 9.1" ・Freescale Power Architecture MPMC8610 processor ・28V DC MIL-STD-704 compliant power supply
-
6U 2-slot MPMC-9620
Curtiss-Wright 筐体 VPX 防衛・6U, two slot enclosure ・VME 64x or VPX backplane ・Dimensions: 12.5" x 5.8" x 8.25" ・Power: 28 VDC @ up to 130W
-
3U 5-slot MPMC-935x
Curtiss-Wright 堅牢システム筐体 VPX 防衛 生産中止品(EOL)・Processing ・Intel® Core™ Duo/i7 or Freescale Power Architecture™ MPC7448/8640 ・Optional Interfaces ・MIL-STD-1553 - Up to two dual redundant channels ・ARINC 429 - Up to 32 channels ・Individually selectable as RX or TX ・Video up to 4 outputs ・DVI, LVDS or VGA ・Optional PowerPC video processor ・Video input, up to 6 channels ・(NTSC, PAL, RS-170) ・Mechanical ・Volume Optimized
-
SOF203(Quad ADC and quad DAC, SOFI Module)
Curtiss-Wright アナログI/O FMC 防衛Quad ADC 14-bit @ 3 GSPS (dual AD9208), with option to support up to eight channels* •Quad DAC 16-bit @ 12 GSPS (quad AD9162 or AD9164), with option to support up to eight channels* •Separate direct front-panel clocking for ADC and DAC •Onboard clock buffers with ultralow phase noise
