条件に該当する製品470件
-
Sensor & Payload Management
Curtiss-Wright 堅牢システム筐体 VPX 防衛・Chassis system (6U 21-slot with Serial RapidIO® mesh, VPX-based conduction-cooled solution) ・High-performance 6U single board computers (SBCs) with GbE ・6-port Dual Redundant MIL-STD-1553 Interface ・8-port 1Gbps Fibre Channel Interface ・Internal 64GB solid state SATA storage and/or 32GB RAM drive ・High-speed serial interface (up to 16Mbps in HDLC/sync mode) ・ECL Interface ・Wind River® VxWorks® 6.x BSP (future Linux® BSP support) ・28VDC MIL-STD-704E Power Input ・Power Consumption: < 1000W full configuration ・Weight: typical configuration 80 lbs; full 90 lbs (scaled down -45 lbs) ・MTBF: Depending on configuration (1500-2000h typical)
-
MPMC-933X Vetronics Systems
Curtiss-Wright 堅牢システム筐体 VPX 防衛The MPMC-933x system supports VPX form factor modules in a compact size, weight and power (SWaP) optimized package. Mission system developers can greatly reduce up-front engineering costs and platform scale up time by immediately building off the Commercial Off-the-Shelf (COTS) solution. The MPMC-933x incorporates rugged computing and networking component packages allowing developers to focus on software and algorithm development, while meeting I/O, performance, and environmental program requirements. If you need customization of this system to your program requirements, click here to learn more about our system integration and program management services.
-
Vanguard PCI
Curtiss-Wright アナライザー PCI 試験 環境 生産中止品(EOL)・Concurrent and independent operation of all functions (analyzer, exerciser, protocol checker, and compliance checker) ・Protocol Checker and Exerciser ・Networked Bus Analyzer (built-in Ethernet port) or USB ・2 MSample Trace Buffer at 256 bits ・0-133 MHz PCI-X and 0-67 MHz PCI in 32-bit and 64-bit
-
Vanguard PCI-0-SL
Curtiss-Wright アナライザー VMEbus 試験 環境 生産中止品(EOL)・Fully compliant debugging of 133 MHz systems ・Concurrent and independent operation of all functions (analyzer, exerciser, protocol checker, and compliance checker) ・Optional Protocol Checker and Exerciser ・Networked Bus Analyzer (built-in Ethernet port) and USB ・0-133 MHz PCI-X and 0-67 MHz PCI ・2 MSample Trace Buffer at 256 bits
-

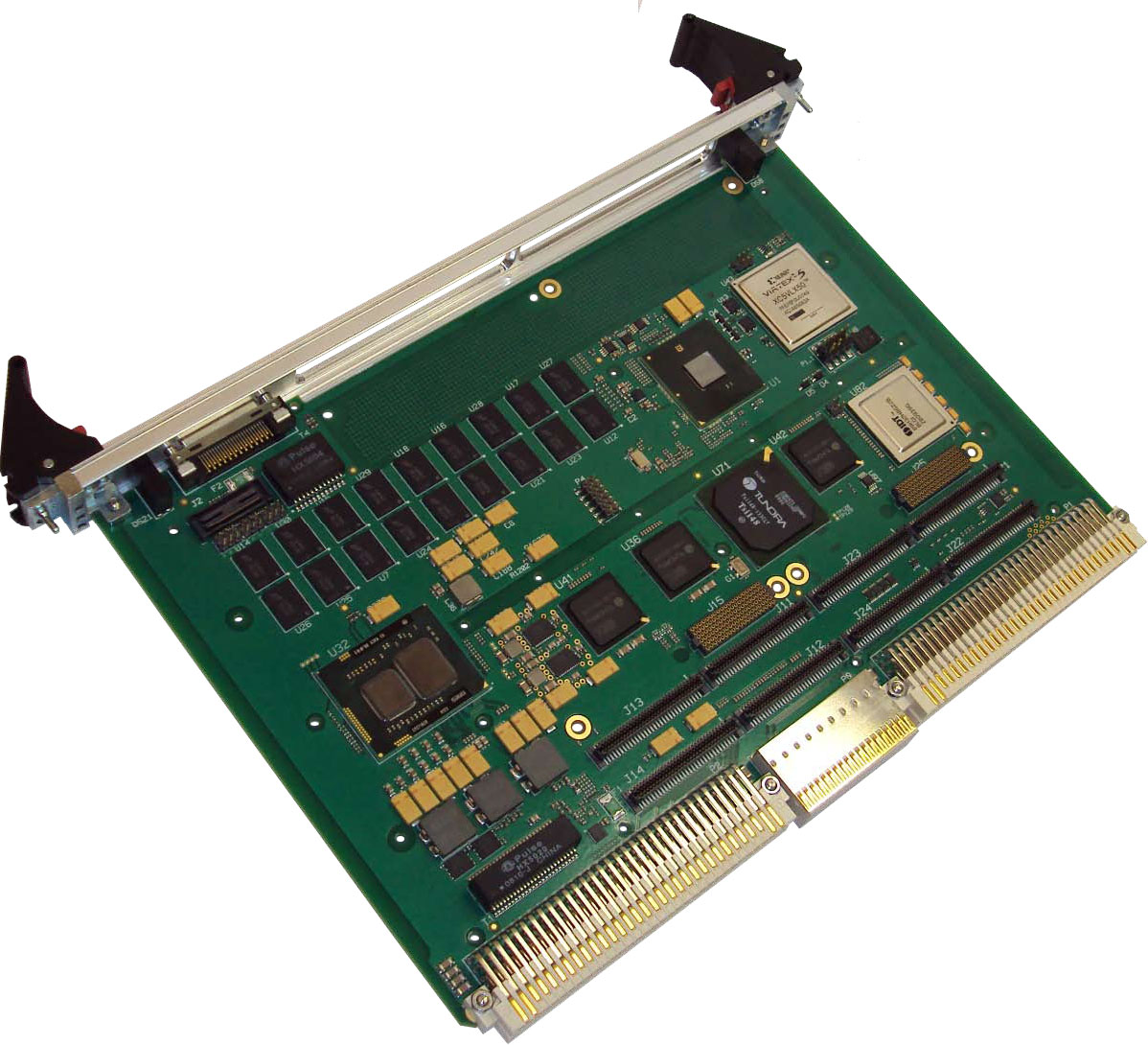

VME-1908 6U VME Intel Core i7 4th Gen SBC
Curtiss-Wright Intel VMEbus 防衛 生産中止品(EOL)・Processing ・Intel Core i7 4th Generation "Haswell" Quad-Core ・6MB L3 Cache ・SSE 4.2 floating point ・Intel 4th Generation PCH ・Optional VME 320 interface ・Memory ・8/16 GB DDR3 SDRAM (Growth to 32 GB) ・8/16 GB NAND Flash (Growth to 64 GB) ・Dual XMC/PMC sites ・External Peripherals ・(3) GbE (1x front, 2x rear) ・(1) AC97 Stereo Audio ・(2) RS-232 ・(3) RS-422 ・(8) GPIO ・(4) USB (1x front, 3x rear) ・(2) SATA
-
SoftScan Radar Scan Conversion Package
Curtiss-Wright レーダー その他 防衛・GPU accelerated software scan conversion ・Ultra-high radar display performance ・PPI, A-Scan, B-Scan Display ・Multiple radar display windows ・Multiple radar sources per window ・Real-time resizable and movable windows ・Very low CPU utilization ・Comprehensive software API ・US and Foreign patents applied for
-
VxPoint Video Crosspoint Switch
Curtiss-Wright ビデオ VMEbus 防衛・Low power, High performance processor PMC with support for cryptography ・Unrestricted switching between 8 video inputs and 32 video outputs ・Compatible with a wide range of standard video signals ・PAL/NTSC encoder ・150MHz bandwidth ・Intelligent communications controller ・3 x RS232 and 1 x RS422 serial channels for control and communication ・Air-cooled Level 0 and conduction-cooled Level 200 single-slot 6U VME form factor
-
Radar Video Processor (RVP)
Curtiss-Wright レーダー BOX 防衛・Radar video acquisition, from analog or digital signals ・Clutter processing ・Cell averaging CFAR ・Radar video distribution on LAN ・Radar video recording on local disk ・Plot extraction ・Automatic target acquisition ・Target tracking ・Radar video PPI display engineering and control interface ・Network control
-
Sentric2 HD Video Recorder System
Curtiss-Wright モーション VMEbus 防衛 生産中止品(EOL)・Standard configurations of Sentric2 systems record and play up to four channels of HD video and audio in real-time at full frame-rate ・High quality real-time hardware-accelerated JPEG2000 or MPEG4 compression ・Full network integration supporting the transmission and receipt of video and control data over Ethernet ・Comprehensive recording of metadata with video such as time stamps and tagged events ・Built-in self-test and status monitoring ・Systems built using Sentric2 support extensive customization options such as more channels and different types of video input/output ・Sentric2 systems typically support composite and high-definition RGB analog and digital DVI video input and output ・Solid state or rotating disk storage ・Available in rugged and commercial-grade system configurations ・Available as a board-level assembly for integrating Sentric2 functionality into existing embedded systems
-
VLX2500 VME
Curtiss-Wright CROSS BAR VMEbus 防衛 生産中止品(EOL)・Command Line Interface configuration commands sent via the VME bus or the RS-232 port ・LED Indicators include: 'Signal Detect' and 'Transmitter On' for each SFP and 'Power On' and 'Heartbeat' for the systemSelect 16, 24 or 32-bit VME bus addressing ・Built-in Self Test ・Up to 16 non-blocking SFP transceiver ports (with optional 8-port expansion card) ・3.125 Gbps/port baud rate ・50 Gbps total bandwidth for 8 ports and 100 Gbps for 16 ports ・Point-to-Point (full or half duplex), multicast (1 to several), and loop (with auto loop feature) topologies. ・Optional bypass of clock conditioning circuitry for each port ・Hot-swappable SFP transceivers ・Ruggedized version available
