条件に該当する製品470件
-
ACS-5161PC104 60 Watt Isolated DC/DC Supply,Vin= 18-36VDC, Vout= +5, +12VDC
Curtiss-Wright 電源 PC104 防衛FUNCTION: Isolated PC/104 DC-DC Converter Vehicle Power Supply VOLTAGE INPUT: • Vin: +18V to +36V DC Input Range • Transient and Reverse Voltage Protection • Input Protected with Automotive Transient Voltage Suppressor, 6600W 10/1000us Ideal for 24V Battery Installations VOLTAGE OUTPUT: • VOut: +5V, +12V DC • 5V Overload Protected; Over temperature Shutdown @ 105°C for Base plate POWER OUTPUT: • Output Power: +5V @ 12A (20A peak), +12V @ 2.5A • 60 Watt Combined Output Power (-40°C to +85°C) • 100 Watt Peak Output Power up to +70°C • Note: Derating occurs if not structurally heatsinked ISOLATION: • Galvanic Isolation Input-to Output and Input to Base-Plate 1500V • Galvanic Isolation Output to Base-Plate 500V EMI FILTER: Onboard Input Filter Designed for Compliance to MIL-STD-461, CE, and EN-55022 class B Conducted and Radiated Emissions as Part of Overall System Design STATUS: Status LED Indicators, Remote Shutdown Capability
-
DBH-670A Digital BeachheadA-PNT Vehicle Computer & Switch
Curtiss-Wright スイッチ BOX 防衛16 Ethernet ports • Support for hardware-based Precision Time Protocol (IEEE-1588v2) • NXP® i.MX6 quad-core Arm Cortex-A9 processor • 2 GB DDR3 • 16 GB eMMC flash • Optional Internal GB-GRAM (Type I/II) SAASM or M-Code GPS receiver • Chip Scale Atomic Clock • On-board 10 Degrees of freedom Inertial Measurement Unit • 8 independent 1PPS signals out and with serial PNT data Applications • A-PNT • Vehicle Management Computer
-
MPMC-9020Dual Mezzanine Card Multi-Platform Modular Computer
Curtiss-Wright 堅牢システム筐体 OpenVPX 防衛Dual XMC/PMC mezzanine backplane • 3U OpenVPX • Dimensions: 2.6 x 10.5 x 5.5” (60.04 x 266.7 x 139.7 mm) • Volume: 655 in³ (1.073e+7 mm3) • Weight: >3 lb (1.36 kg) (fully populated) • Power Supply: 28 VDC input • Designed to meet MIL-STD-704 • Thermal management + Conduction-cooled – cold plate Applications • Technology refresh (retrofit) • General processing • Video and image processing • Mission computing
-
Airborne IADS NXDP-3000-1The Airborne IADS system combines a rugged Parvus® DuraCOR®313 Mission Computer with IADS RTStation software
Curtiss-Wright SOFT その他 防衛Combines a rugged Ultra Small Form Factor Microsoft® Windows® compatible Mission Computer with the full desktop version IADS display and analysis software Helps to speed-up test point clearance by providing real-time data to crew Allows the same display setups to be used on the ground and in the air Connect to live Ethernet data sources on board the test aircraft using DARv3, TmNS, Chapter 10 UDP, INET-X, or IENA Alternatively, use one of the supported decom/bitsync devices to connect to a live PCM stream onboard the test aircraft Applications Onboard data display and analysis Real-time flight test monitoring Providing flight test status to the pilot
-
3U VPX Ground Control System
Curtiss-Wright 堅牢システム筐体 VPX 防衛3U VPX ground control system that is low risk, affordable and proven in the f ield • Small in size and light weight • Flexible 3U VPX backplane that is interchangeable between different ground control applications and allows for future upgrade capabilities • Two fully programmable Controller Area Network (CAN) bus • VICTORY compliant Gigabit Ethernet Switch with 12 GbE ports • Supports legacy MIL-STD-1553 bridging to VICTORY • Allows for local/network attached data storage • PMC sites enables growth for new I/O solutions • Wind River® VxWorks® BSP Applications • Fire control • Weapons control • Vehicle control/managemen
-

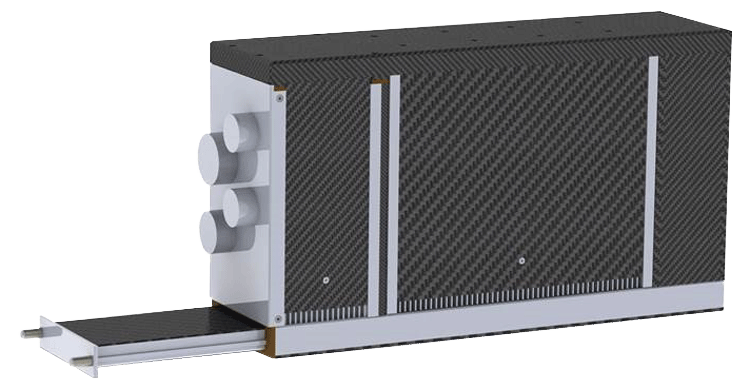

Multi-Platform MissionManagement System
Curtiss-Wright 堅牢システム筐体 VPX 防衛Configuration CPU: 2 x Intel Xeon D-1587 with 16 Cores @ 1.6 GHz and 128 GB DDR4 SDRAM • Configuration CPU + GPU + Intel Xeon D-1587 16 Cores @ 1.6 GHz and 16 GB DDR5X SDRAM + Two NVIDIA Quadro Pascal P5200 with 128 GB DDR4 SDRAM • Video Capture + Xilinx Artix-7 • Storage: Two 2.5” Removable SSDs • Software Support: RedHat 7.2 64-Bit • Power Input: 28 VDC MIL-STD-704E • Ruggedization: MIL-STD-810 & MI STD-461 Applications • Mission Computer • Mission Management • 360 Situational Awareness • Sensor Processor System • Mission & Display Processor
-
Embedded Video Processing SystemVersatile Compact 3U OpenVPX Video Processor
Curtiss-Wright ビデオ VPX 防衛2 x Intel Xeon D Octal Core DSPs + 820 GFLOPs with AVX2 • NVIDIA Quadro P5000 GPGPU + 6.2 TFLOPs / 16 GB GDDR5 • Two 3G-SDI video inputs and outputs + Two analog inputs or outputs • Auxiliary I/O options: Gigabit Ethernet, MIL-STD-1553B, ARINC-429, etc. • Qualified to MIL-STD-810/MIL STD-461 Applications • Electrical-Optical Target Acquisition • Surveillance Search and Track • Digital Moving Map Products included in the system: • CHAMP-XD1 Intel Xeon D DSP • VPX3U-P5000 NVIDIA Pascal GPGPU • XMC-554 SSD Flash Memory (option) • XMC-651 Ethernet Switch (option) • BU-67118Z Multi-IO XMC (option) • PSU3-THOR Power Supply
-
Electronic Warfare System 3U VPX Compact Multi-Channel Tuner System
Curtiss-Wright 無線/RADIO VPX 防衛SWaP-optimized signal processor • 4 x High-performance tuner channels + 2 MHz to 6 GHz + 100 µsecs tuning speed + 100 MHz IF passband • Intel Xeon D Octal Core DSP + 410 GFLOPs with AVX2 • Xilinx Kintex-7 325T FPGA Processor + User Programmable with LVDS I/O • High bandwidth I/O options + 10 and 1 Gigabit Ethernet, USB • MIL-STD-810/MIL-STD-461 qualified Applications • Signal Intelligence • Electronic Warfare • Electronic Support Products included in the system: • SI-9172 Multi-Channel Tuner/Exciter • VPX3-482 CHAMP-XD1 DSP • XF07-523 Xilinx Kintex-7 FPGA • PSU3-THOR Power Supply • XMC-651 Ethernet Switch (option) • XMC-554 SSD Flash Memory (option
-
SOF205(Quad ADC and quad DAC, SOFI Module)
Curtiss-Wright アナログI/O FMC 防衛Quad ADC 14-bit @ 3 GSPS (dual AD9208) •Quad DAC 16-bit @ 12 GSPS (quad AD9162 or AD9164) •Onboard Wideband PLL structure •LMK04821/8 PLL (with 100 MHz VCXO) for JESD lane clocking and sysref
-
SOF209(Quad ADC 14-bit @ 3 GSPS, SOFI Module)
Curtiss-Wright A/D FMC 防衛Quad ADC 14-bit @ 3 GSPS (dual AD9208) •Optional additional quad ADC using a further two AD9208 •Onboard Wideband PLL structure •LMK04821 PLL (with 100 MHz VCXO) for JESD lane clocking and sysref
