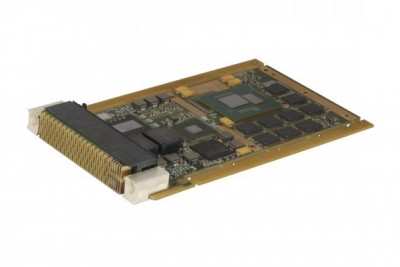

• Single slot 3U VPX single board computer • 5th Generation IntelLato Core™ i7 quad core processor (6 MB shared cache) • Two channels of soldered DDR3L SDRAM with ECC up to 16 GB • Up to 32 GB NAND Flash • Rear I/O – 2x 10GBASE-T ports (also configurable as 2x 1000BASE-T) – 1x VGA port – 1x DVI port – 3x SATA 6 Gb/s ports – 2x COM ports – 4x USB 2.0 ports – Up to 8x GPIO • Five levels of ruggedization (convection and conduction cooling variants) • AXIS and Deployed Test Software • Microsoft® Windows®, Open Linux® and VxWorksLato support

• Single slot 3U VPX Single Board Computer • Xeon D high density, low power SoC Processor • Two channels of soldered DDR4 SDRAM with ECC up to 32 GB • Up to 32 GB NAND Flash • Up to 20 PCIe lanes (Gen 3 capable) for Data and Expansion planes • Rear IO: - Up to 3x Gigabit Ethernet ports (either one 1000BASE-T plus two 1000BASE-BX or two 1000BASE-T) - 2x 10G Ethernet ports - 2x SATA 6 Gb/s ports - 2x COM ports - 4x USB 2.0 ports - Up to 8x GPIO • Five levels of ruggedization (convection and conduction cooling variants) • AXIS and Deployed Test Software • Windows®, Linux® and VxWorks® OS support

• SmartFusion2 • 6U OpenVPX single board computer • 5th Generation Intel® Core™ i7 • Soldered DDR3 SDRAM with ECC • Up to 32 GB solid state disk drive • Up to 6 MB shared cache • Multiple Data Plane Fabric Configurations • Multiple PCIe® Expansion Plane Fabric configurations • Both rear & front I/O ports • On-board expansion sites • Trusted Platform Monitor (TPM) • Elapsed Time Indicator (ETI) • Rich software choice, including Deployed Test Software, plus operating systems support for Microsoft® Windows / Open Linux® and real-time operating system support

• 3U OpenVPX single board computer • Power Architecture™ AMP (advanced multiprocessing) CPU’s - T1042 (four e5500 cores) - T2081 (eight e6500 virtual cores) • DDR3L (up to 8 GB) • Up to 256 MB NOR Flash • Up to 16 GB SLC NAND Flash • 512 kB Autostore NVRAM • PCIe Gen2 data plane ports from VPX P1 (options for 2 x4, 1 x4 + 4 x1, 8 x1) • 1x PMC/XMC Site • Up to 3x Gigabit Ethernet ports • 2x RS-232/422 COM ports (or 4x RS-232) • Up to 2x SATA ports • 2x USB 2.0 • Up to 8x single-ended GPIO (5V tolerant) • BMM (Board Management Microcontroller) • VITA65 OpenVPX Compatible - MOD3-PAY-2F2T-16.2.5-3 - MOD3-PAY-2F2U -16.2.3-3

・Intel Core i7 Broadwell 5th Generation processor ・Quad-Core (8-thread) with Turbo ・Up to 32 GB DDR3L at 1600 MT/s supporting 25.6 GB/s ・Up to 128 GB SATA NAND flash ・Supports two PMC/XMC expansion mezzanines ・Supports Linux (Fedora and Red Hat Enterprise Linux (RHEL)), VxWorks, Microsoft Windows Embedded Standard and LynxOS ・Available in air-cooled and conduction-cooled versions

・Intel Xeon D 8-Core (410 GFLOPS @ 1.6 GHz) or 12-Core (576 @ 1.5 GHz) ・Extended operating temperature Intel eTEMP SKUs ・PCH integrated in Xeon D SoC ・Native dual KR 10 GigE ports ・16 to 32 GB DDR4 @ 2133 megatransfers per second (34 GB/s aggregate) ・XMC PCIe up to Gen3, designed for up to 25W thermal dissipation ・PCIe Gen3 on 3U OpenVPX data plane with switch ・Core Function FPGA with IPMI ・Conduction and air-cooled ・TrustedCOTS

・OpenVPX (VITA 65) profile MOD6-PAY-4F1Q2U2T-12.2.1-11, VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs (X690T or X980T), with 　　・8 GB DDR3L SDRAM in two banks 　　・Four 4-lane serial data plane links to the backplane (support up to 10.3 Gbps data rates) 　　　　・Gen2 SRIO or alternate fabrics with different FPGA cores 　　・One 4-lane Gen3 PCIe connection to a Gen3 PCIe switch 　　・One additional x4 10.3 Gbps link to the backplane 　　・16 LVDS pairs to the backplane 　　・Two enhanced FMC interfaces with 128+ differential signal pairs 　　　　・One site supports JESD204B or Serial FMCs with up to 8 serial links 　　　　　　・The other site has optional support for up to 160 LVDS pairs with X690T FPGA ・Two Mezzanine sites with support for FMC (VITA 57) or enhanced FMC ・Onboard PCIe Gen3 switch - Two 8-lane expansion plane fabric ports to the backplane with configurable NTB support ・Sensors for monitoring board power consumption ・Support for ChipScope Pro and JTAG processor debug interfaces ・Backplane clock/sync paths to mezzanines sites ・FXTools BSP and FPGA design kit with highly-optimized IP Blocks, development environment, reference designs, scriptable simulation test benches and software libraries VxWorks and Linux variants available ・VITA 48 1" pitch format ・Ruggedization levels 　　・Air-cooled Level 0 (commercial) 　　・Conduction-cooled Level 200 (future) ・Path to variant with Processor (contact factory)

・Two Intel Core i7-3612QE quad-core processors at up to 2.1GHz ・4 Gbytes DDR3 SDRAM with ECC per processor ・8GB NAND flash per processor ・256 Kbytes NVRAM ・Gen2 Serial RapidIO Data Plane interface, 8GB/s bi-directional bandwidth ・Gen2 PCI Express Expansion Plane interface on P2, up to 8GB/s bidirectional bandwidth ・Two 1000BASE-T, two 1000BASE-BX Ethernet interfaces ・One VITA 42.3 XMC mezzanine site ・Four EIA-232, two EIA-422/485 serial ports ・Three USB 2.0 interfaces ・Two SATA interfaces ・Power/Temperature sensors ・TPM Support (optional) ・VxWorks® BSP supporting SMP ・Linux LSP ・Continuum Vector AVX/SSE optimized DSP function library ・Continuum Insights multi-processor development tools ・Continuum IPC inter-processor communications library ・VITA 65 compliant per MOD6-PAY-4F1Q2U2T-12.2.1-11 ・Rugged air cooled and conduction cooled variants

・Quad Power Architecture 8640/8640D processors at up to 1.0GHz ・Up to 1 GB DDR2 SDRAM with ECC per processor ・Each processor has dual 64-bit memory banks ・VPX-REDI format (1" pitch) with 4 Serial RapidIO ports on P1 connector and option for one PCI Express port ・512Mbytes Flash with write-protection ・128 Kbytes NVRAM ・One XMC site supporting PCI Express ・Gigabit Ethernet to all processors with on-board switch ・VxWorks 6.x BSP and Driver Suite supporting Workbench 2.x IDE ・IPC inter-processor communications library ・Continuum Vector DSP function library with VSIPL support ・Continuum Software Architecture (CSA) firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function ・Designed for military harsh-environment applications, both air- and conduction-cooled

・6U OpenVPX format, support for 2 OpenVPX slot profiles ・Powerful dual processing node general purpose single board computer (SBC) ・Two (2) NXP (formerly Freescale) T2080 Quad-core 64-bit Power Architecture with Altivec @ 1.5GHz ・Up to 8 GB DDR3 SDRAM per processing node ・Full complement of I/O per processing node - Ethernet, serial (RS-232 and RS- 422), ・USB 2.0, 10G Ethernet TTL and differential discretes ・10Base-KX4 Ethernet data plane ports ・VxWorks 7.x BSP and Linux BSPs ・Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and update functions, built-in-test (BIT), and nonvolatile memory sanitization function ・Designed for harsh environment applications, both air- and conduction cooled ・Curtiss-Wright's TrustedCOTS enabled with large Xilinx user programmable FPGA. ・Supports NXP Secure Boot
