製品検索結果

製品カテゴリ CPUボード フォームファクタ VMEbus Intel Core i7 Broadwell 5th Generation processor Quad-Core (8-thread) i7-5850EQ at 2.7 GHz with Turbo up to 3.2 GHz; Up to 32 GB DDR3L Up to 128 GB SATA NAND flash Supports two PMC/XMC expansion mezzanines Supports Linux (Fedora and Red Hat Enterprise Linux (RHEL)), VxWorks, Microsoft Windows Embedded Standard and LynxOS Available in air-cooled and conduction-cooled versions

製品カテゴリ CPUボード フォームファクタ VMEbus Powerful general-purpose single board computer with NXP 8640/8641 PowerPC processor Single or dual e600 cores at 1.0 GHz Memory: 2 GB DDR2 SDRAM controlled by dual 64-bit controllers 256 or 512 MB flash 128 KB autostore NVSRAM I/O: (3) Gigabit Ethernet interfaces (2) asynchronous EIA-232 serial ports and up to (4) sync/async EIA-232/422/485 serial channels (2) SATA, (2) USB 2.0, (14) DIO, (16) DIFFIO, (2)1553 Fabric Interconnect Ports Two 64-bit PMCs on independent PCI buses 2eSST-capable VME interface Software Continuum Software Architecture (CSA) firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function Wind River VxWorks 5.5.1 and 6.7 Wind River VxWorks 6.8 SMP Wind River Linux 3.0 Continuum Vector Signal Processing Software INTEGRITY available from Green Hills Software LynxOS available from Lynx Software Technologies Additional Features Designed for military harsh-environment applications, both air- and conduction-cooled Latest VME version of Curtiss-Wright's backwards compatible with 17x and 18x series of single board computers

製品カテゴリ CPUボード フォームファクタ VMEbus Single or dual NXP Power Architecture 7447A/7448 (AltiVec Technology-enhanced) CPUs, each with: 64 KB L1 cache 512 KB/1 MB internal L2 cache ECC option on 7448 internal L2 cache Altivec-enabled e600 core (previously referred to as G4 core) 9.6 GFLOPS peak processing power at 1.2 GHz core frequency (2) 64-bit PMCs on independent PCI buses (1) 100 MHz PCI-X, one 66 MHz PCI-X Optimized cooling of conduction-cooled PMCs Controlled impedance routing of Pn4 I/O for digital video, StarFabric, Fibre Channel and other high-speed interfaces Memory: High-performance Discovery III system controller - dedicated CPU-to-SDRAM path reduces memory read latency Up to 2 GB of DDR SDRAM with ECC Up to 512 MB of contiguous direct-mapped Flash 128 KB AutoStore nvSRAM with hardware write protection I/O: (3) Gigabit Ethernet interfaces (1x 10/100BASE-T, 1x GbE to P0, and 1x 10/100 BASE-T or GbE) (2) asynchronous EIA-232 serial ports and up to (4) sync/async EIA-232/422/485 serial channels (2) SATA, (2) USB 2.0, (14)DIO, (16) DIFFIO, (2)1553 Software Wind River VxWorks 5.5.1 and 6.x Wind River Linux 3.0 Continuum Vector Signal Processing Software LynxOS and Lynx178B available from Lynx Software Technologies INTEGRITY available from Green Hills Software VxWorks 178B (6.6 cert) available from Wind River

CHAMP-AVII-angle-product 製品カテゴリ CPUボード フォームファクタ VMEbus Quad Power Architecture 7447A/7448 processors at up to 1.25 GHz 64 Kbytes L1 and 1 Mbyte (7448) L2 internal caches operating at core processor speed Up to 512 Mbytes DDR-250 SDRAM with ECC per processor (2 Gbytes total) 256 Mbytes Flash with write protection 128 Kbytes NVRAM QuadFlow architecture with 3.2 GB/s peak on-board throughput Each processor has Gbe connection to on-board GbE switch Two ports from GbE switch routed to backplane VME interface with 2eSST support Support for two 64-bit, 100 MHz PCI-X mezzanine modules (PMC-X) Four EIA-232 serial ports, one per processor node Support for StarFabric PMC modules with differential routing to backplane Multi-board synchronous timer Eight discrete LVTTL I/O signals, 2 selectable as interrupt inputs VxWorks 6.x & 5.x BSPs Linux SDK from Curtiss-Wright (2.6 kernel) Green Hills INTEGRITY BSP IPC inter-processor communications library Gedae graphical development environment support Continuum Vector optimized AltiVec DSP function library with VSIPL support Range of air and conduction-cooled ruggedization levels available

製品カテゴリ CPUボード フォームファクタ PMC/XMC Xilinx Zynq Ultrascale+ MPSoC ZU11EG or ZU7EG FPGA Embedded Quad-core Arm A53 @ 1.325GHz 8GB DDR4 PS SDRAM with ECC 8GB DDR4 PL SDRAM with ECC Gen 3 x8 PCIe on Pn5 with 4-channel DMA engine PetaLinux RTOS Available in standard air-cooled and conduction-cooled rugged form factors

製品カテゴリ CPUボード フォームファクタ PMC/XMC NXP Power Architecture QorIQ P2020 processor up to 1.2 GHz (can be ordered with a P2010 processor or be configured by the user to run at 800 MHz/600 MT/sec Memory: Up to 8 GB in one bank of DDR3 memory/ECC at 800 MHz (1) bank NOR flash – 256 MB 512 KB Non-Volatile Memory (FRAM) Optional 8 GB NAND flash I/O: (2) 10/100/1000BASE-T Ethernet ports (1000BASE-X capable) (2) RS-232/422 asynchronous serial channels (1) USB 2.0 host port (1) SATA channel (4) LVTTL DIO Software VxWorks BSP 6.9 and Driver Suite Curtiss-Wright WindRiver Linux 4.3 Comprehensive foundation firmware (U-Boot including BIT, non-volatile memory programmer, and secure erase utility) Additional Features Designed for harsh environment applications, both air- and conduction-cooled Designed to the VITA 42 specifications with the fabric on PN5 and all I/O on PN6. All major I/O on PN6 is pinned out to fit within the VITA 46.9 X8d+X12d/X12d+X8d mapping so that it can be supported on a XMC site supporting 20 differential pairs

Design based on the Ettus Research USRP E320 Alignment to the SOSA™ and CMOSS Technical Standards Planned alignment with VICTORY & MORA Support for development with USRP tool flows (UHD, RFNoC) Support for C, C++, and Python Support for industry standard SDR development tools, such as GNU Radio & REDHAWK Optional FPGA programming with Xilinx Vivado RF: 2x2 MIMO (2 Rx, 2 Tx) Frequency range: 70 MHz to 6 GHz (<30MHz planned) Bandwidth: up to 56 MHz Synchronization: 100 MHz and 1 PPS backplane sources FPGA: Xilinx Zynq 7045 Dual-core Arm Cortex A9 1 Gb and 10 Gb Ethernet I/O Conduction-cooled, rugged 3U VPX form factor

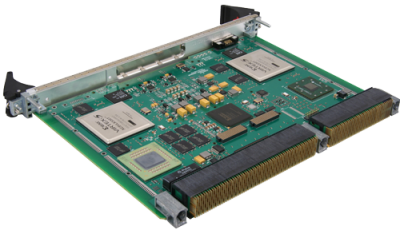

製品カテゴリ CPUボード フォームファクタ OpenVPX Three user-programmable Xilinx Virtex-7 FPGAs (585T or X690T), each with: 4 GB DDR3L SDRAM in two 64-bit banks 36 MB QDRII+ SRAM in two 36-bit banks Two FMC interfaces with 80 differential signal pairs or up to x8 SERDES Onboard PCIe Gen3 switch Onboard SRIO Gen2 switch Xilinx ZYNQ FPGA with Dual ARM Cortex A9 processor Air-cooled and conduction-cooled versions

製品カテゴリ CPUボード フォームファクタ OpenVPX Two Xilinx Virtex-5 Platform FPGAs (LX220T) 512 Mbytes of DDR2 SDRAM per FPGA in two banks 36 Mbytes QDR-II+ SRAM per FPGA in four banks 1 GHz 8641D dual-core 8641 processor with 512 Mbytes of DDR2 SDRAM in two banks XMC mezzanine site On-board Serial RapidIO switch Air-cooled and conduction-cooled versions

Xilinx Zynq Ultrascale+ MPSoC ZU11EG or ZU7EG FPGA Embedded Quad-core Arm A53 @ 1.325GHz 8GB DDR4 PS SDRAM with ECC 8GB DDR4 PL SDRAM with ECC Gen 3 x8 PCIe on Pn5 with 4-channel DMA engine PetaLinux RTOS Available in standard air-cooled and conduction-cooled rugged form factors
