製品検索結果

・MicroTCA rack mount or desktop chassis platform, 19” x 2U x 14.2” deep ・Compliant to μTCA.4 specifications with rear IO for High-Energy Physics and other applications ・Supports up to six μTCA.4 mid-size, double module AMCs and RTMs ・Right-to-left cooling ・Single MicroTCA Carrier Hub (MCH) and flexible Power Module options. Full integration is also available. ・Routing on 26-layer passive backplane using high-speed 12.5 GHz μTCA connectors ・Removable Air Filter, Power Modules, and Fan Tray ・Single/dual 500W AC or single/dual 796W DC power standard, other options available ・Telco Alarm and rear-mounted JSM ・RoHS compliant

・μTCA Chassis Platform with rear I/O ・19” x 9U x 14.9” deep (with handles 16.23” deep) ・Full redundancy with dual MicroTCA Carrier Hubs (MCH), dual cooling units and 3 PSUs ・Up to twelve AMCs: 12 full-size double module slots in front with 12 full-size, double module RTM slots available in the rear ・High-bandwidth (20-lane) connections between adjacent slots ・High-speed 30 layer passive backplane (40GbE ready) ・Redundant FRU information devices and carrier locators ・Three 1.1 kW AC Power supply for 3.3 kW total ・Telco alarm ・FCLKA, TCKA, TCKB, TCLKC AND TCLKD ・JTAG Switch Module (JSM) Slot on rear of chassis ・ESD Jack at the top front and back

・Twelve mid-size single module AMC slots or six mid-size double module AMC slots ・96 port switch for x8 PCIe Gen 3 routing to all slots (ports 4 to 11) ・Management can run as Shelf/MCMC (MicroTCA Carrier Management Controller) or MCMC ・AMC.1, AMC.2, and AMC.3 compliant ・GbE Managed Layer Two (ports 0 and 1) ・Telco Alarm and Carrier Locator ・JTAG Switch Module (JSM) with front port access ・Telecom/GPS Clock on TCLKA, TCLKB, TCLKC and TCLKD and Fabric Clock on FCLK ・Redundant 1+1 Power supply and Cooling Units (CUs) ・Removable Power supply, Air Filter, and Fan Trays ・ESD jack at the top front

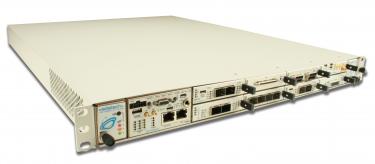

・1U chassis platform ・Ten mid-size AMC slots ・Integrated MCH ・AMC.2 and AMC.3 compliant ・10GbE/1GbE Fabric ・10GbE on ports 4-7 and 8-11 ・GbE on ports 0 and 1 ・Telco Alarm and Carrier Locator ・Optional JTAG Switch Module (JSM) ・Telecom/GPS Clock on TCLKA, TCLKB, TCLKC and TCLKD and Fabric Clock on FCLK ・Redundant 1+1 Power supply (1100W each) ・Redundant Cooling Units (CU) ・Removable Power supply, Air Filter and Fan Trays ・IPMI 2.0 compliant ・RoHS compliant

・Rugged µTCA.1 sub-rack 19” x 3U x 8.35” deep ・Up to 12 AMC slots: 6 full-size and 6 mid-size ・Designed for external forced air cooling (bottom to top) ・Full redundancy with dual MicroTCA Carrier Hub (MCH) and Power Module slots ・Provision for local airflow management ・No active components on the backplane ・ESD jack at the top front ・RoHS compliant

・MicroTCA rugged 1U 19” rackmount chassis platform ・Meets MIL-STD-810F, MIL-STD-901D for shock/vibration ・Meets MIL-STD-461E for EMI ・Supports up to six single module mid-size ・x8 PCIe Gen 3 routing (or dual x4) ・Chassis accepts AMCs with single retention screw opposite of ejector handle on each slot ・Management can run as Shelf/MCMC (MicroTCA Carrier Management Controller) or MCMC ・AMC.1, AMC.2, AMC.3 and AMC.4 compliant ・Front-to-back cooling ・Lightweight aluminum construction ・RoHS compliant

・MicroTCA rugged 1U 19” rackmount chassis platform ・Designed to meet MIL-STD-810F, MIL-STD-901D for shock/vibration ・Designed to meet MIL-STD-461E for EMI ・Supports up to six single module mid-size ・Dual x4 or single x8 PCIe Gen 3 ・Chassis accepts AMCs with single retention screw opposite of ejector handle on each slot ・Management can run as Shelf/MCMC (MicroTCA Carrier Management Controller) or MCMC ・Dual redundant PSUs located in the rear of the chassis ・AMC.1, AMC.2, AMC.3 and AMC.4 compliant ・Front-to-back cooling ・Lightweight aluminum construction ・RoHS compliant

・μTCA System Platform 19” x 6U x 10.4” deep (with handles 12” deep) ・Lightweight aluminum construction ・Full redundancy with dual MicroTCA Carrier Hub (MCH), dual Cooling Units and dual Power Modules ・Up to twelve AMCs: 12 full size double-module ・Dual Star topology ・Radial I2C bus to each AMC ・High-speed routing on 26 layers ・Redundant FRU information devices & Carrier Locator ・Telco Alarm ・CLK1, CLK2 and CLK3 routed to each slot ・JTAG Switch Module (JSM) Slot ・ESD Jack at the top front of the chassis ・Bottom-to-top cooling configuration ・RoHS compliant

・μTCA.3 System Platform 1/2 short Air Transport Rack (ATR) per ARNIC404A, with NO internal fan (12.62� deep without handle) ・Customized Front Panel Input/Output (I/O) Panel Connector layout per customer requirement (option per MIL-DTL-M38999) ・Single MCH and Power Module slot ・Up to 6 AMCs mid-height ・Radial I2C bus to each AMC ・High-speed routing on 26 layers ・High-speed mTCA connectors (12.5 GHz) ・FRU information devices with chassis locator ・CLK1, CLK2 and CLK3 ・No active components on the backplane ・Secondary mounting provision to allow the chassis to be secured to a base plate ・RoHS compliant ・Vib/Shock per MIL-STD-810E and MIL-STD-810

・μTCA System Platform 19� x 8U x 14.9� deep (with handles 16.23� deep) ・μTCA System Platform 19� x 8U x 14.9� deep (with handles 16.23� deep) ・Full redundancy with dual MicroTCA Carrier Hub (MCH), dual Cooling Units and quad Power Modules ・Full redundancy with dual MicroTCA Carrier Hub (MCH), dual Cooling Units and quad Power Modules ・No active components on the backplane ・ESD-Jack at the top front ・JTAG Switch Module (JSM) Slot ・RoHS compliant ・ESD-Jack at the top front ・Up to twelve AMCs: 12 mid-size double-width front module with 12 mid-size double-width rear ・RoHS compliant ・Provision to route cables from the front to the back ・Up to twelve AMCs: 12 mid-size double-width front module with 12 mid-size double-width rear ・Radial I2C bus to each AMC ・Provision to route cables from the front to the back ・High-speed routing on 26 layers ・Radial I2C bus to each AMC ・High-speed μTCA connectors (12.5 GHz) ・High-speed routing on 26 layers ・Redundant FRU information devices ・High-speed μTCA connectors (12.5 GHz) ・Redundant Carrier Locator ・Redundant FRU information devices ・Dual 1000W AC Power supply option ・Redundant Carrier Locator ・Telco Alarm ・Dual 1000W AC Power supply option ・FCLKA, TCKA, TCKB, TCLKC AND TCLKD ・Telco Alarm ・No active components on the backplane ・FCLKA, TCKA, TCKB, TCLKC AND TCLKD ・JTAG Switch Module (JSM) Slot
