条件に該当する製品147件
-
VPX3-E320 Ruggedized Universal Software-Defined RadioDeveloped in Alignment with the SOSA™ Technical Standard
Curtiss-Wright 無線/RADIO OpenVPX 防衛Design based on the Ettus Research USRP E320 • Alignment to the SOSATM and CMOSS Technical Standards • Planned alignment with VICTORY & MORA • Support for development with USRP tool f lows (UHD, RFNoC) • Support for C, C++, and Python • Support for industry standard SDR development tools, such as GNU Radio & REDHAWK • Optional FPGA programming with Xilinx Vivado • RF: 2x2 MIMO (2 Rx, 2 Tx) • Frequency range: 70 MHz to 6 GHz (<30MHz planned) • Bandwidth: up to 56 MHz • Synchronization: 100 MHz and 1 PPS backplane sources • FPGA: Xilinx Zynq 7045 • Dual-core Arm Cortex A9 • 1 Gb and 10 Gb Ethernet I/O • Conduction-cooled, rugged 3U VPX form factor
-
XMC-529AMD Zynq® Ultrascale+™ MPSoC XMC Mezzanine Card
Curtiss-Wright FPGA OpenVPX 防衛AMD Zynq® Ultrascale+ MPSoC ZU11EG FPGA Embedded quad-core Arm A53 @ 1.325GHz 8 GB DDR4 PS SDRAM with ECC 8 GB DDR4 PL SDRAM with ECC Gen 2 x8 PCIe endpoint on Pn5 with DMA engine 4 TX and 4 RX High-Speed SERDES @ 5 Gbps PetaLinux RTOS Available in standard air-cooled and conduction-cooled rugged form factors Applications Secure processing engine FPGA co-processor for high density processing Enhanced TrustedCOTS Support Leverages Curtiss-Wright Enhanced TrustedCOTS security
-
XMC-528AMD Ultrascale+™ MPSoC XMC Mezzanine Card
Curtiss-Wright FPGA OpenVPX 防衛AMD Zynq Ultrascale+ MPSoC ZU11EG FPGA Embedded quad-core Arm A53 @ 1.325GHz 8 GB DDR4 PS SDRAM with ECC 8 GB DDR4 PL SDRAM with ECC Gen 2 x8 PCIe endpoint on Pn5 with DMA engine PetaLinux RTOS Available in standard air-cooled and conduction-cooled rugged form actors Applications Secure processing engine FPGA co-processor for high density processing Enhanced TrustedCOTS Support Leverages Curtiss-Wright Enhanced TrustedCOTS security
-
CHAMP-FX4Xilinx Virtex-7 6U OpenVPX Module
Curtiss-Wright FPGA OpenVPX 防衛OpenVPX (VITA 65) profile MOD6-PAY 4FIQ2U2T-12.2.1-1, VPX REDI (VITA 48 option) • Two or Three user-programmable Xilinx Virtex-7 FPGAs (585T or X690T) with attached DDR3 SDRAM and QDRII+ SRAM • Xilinx Zynq® All Programmable SOC with Dual ARM Cortex A9 processor • Two Mezzanine sites with support for FMC (VITA 57) • Onboard SRIO Gen2 switch • Onboard PCIe Gen3 switch • Optional Trusted Platform Module (TPM) Applications • Radar processing • Signal Intelligence (SIGINT) • ISR • Image processing • Sensor processing • Electronic warfare
-
CHAMP-FX7 (VPX6-476)The CHAMP-FX7 is a 6U VPX AMD-Xilinx® Versal™ PremiumAdaptive System-on-Chip processor that delivers unparalleledprocessing speed and extensive fiber optic connectivity.
Curtiss-Wright FPGA OpenVPX 防衛Developed in alignment with the SOSA™ Technical Standard • 6U VPX® conduction cooled form factor • Two large AMD Versal Premium Adaptive SoC devices, up to VP1702 • Dedicated high-speed Adaptive SoC to Adaptive SoC interconnects • Quad 100 Gb Ethernet ports on the VPX Data Plane • Dual 10 Gb Ethernet VPX Control Plane ports • 32-lanes PCIe Gen4 Expansion Plane • Up to 64 lanes of VITA 66 backplane f iber optic I/O direct to the Adaptive SoCs, supporting up to 28 Gbps/lane
-
CHAMP-WBXilinx Virtex-7 6U OpenVPX Module
Curtiss-Wright FPGAモジュール OpenVPX 防衛OpenVPX™ (VITA 65) MOD6 PER-4F-12.3.1-8; MOD6-PER 1Q-12.3.5-2, VPX REDI (VITA 48 option) • Single user-programmable Xilinx Virtex-7 FPGAs (X690T or X980T), with DDR3L SDRAM • Two Mezzanine sites with support for enhanced FMC (VITA 57) • 20 x backplane SerDes capable of 10.3 Gbps each • Onboard PCIe Gen3 switch
-
VPX6-197NXP Power Architecture T2080 Single Board Computer
Curtiss-Wright PowerPC (FreeScale) OpenVPX 防衛NXP T2080 quad-core 64b SoC running up to 1.8 GHz with AltiVec • Dual mezzanine sites • Curtiss-Wright’s U-Boot and Wind River VxWorks 7 BSP (for other OS support consult factory) • NXP Secure Boot support Applications • Commercial • Control Computers • Mission Computers • ISR applications • SWaP-C consolidatio
-

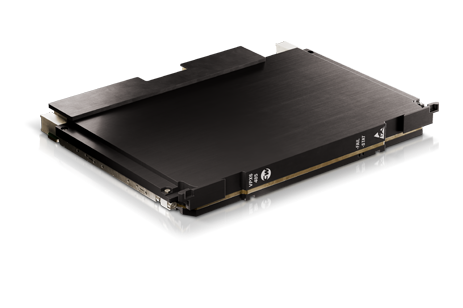

CHAMP-XD4 (VPX6-485)6U VPX Dual Intel® Xeon® D-2700 and Cognitive DSPProcessor Aligned with The SOSA™ Technical Standard
Curtiss-Wright Intel OpenVPX 防衛• Developed in alignment with the SOSA Technical Standard as a 6U Compute Intensive Processor Plug-in-Card • 6U VPX® conduction cooled form factor with 2LM covers • Two Intel D-2700 CPUs with 12, 16 or 20 cores each at up to 2.0 GHz • Four memory channels totaling 64 GB DDR4 @2400 MT/s per CPU node (76.8 GB/s aggregate per node) • Quad 100 Gb Ethernet ports on the VPX Data Plane with RoCE V2 RDMA support • 32-lanes PCIe Gen4 Expansion Plane • Dedicated AMD® ZU6EG to ZU15EG MPSoC FPGA with embedded quad-core A53 processor and 4 GB of SDRAM memory for enhanced security or co-processing applications
-
CHAMP-XD2MHigh Memory Capacity Multi-Core HPEC Modulebased on the Intel Xeon Processor D
Curtiss-Wright Intel OpenVPX 防衛Xeon D 16-core processor (870 GFLOPS @ 1.7 GHz) • Alternative Xeon D SKUs available • 128 GB DDR4 @ 2133 MT/s (34 GBps over 2 ECC channels) • Four ports of 40G/10G Ethernet or DDR/QDR/FDR10 InfiniBand on OpenVPX data plane • Native dual KX 1 GigE or KR 10 GigE ports on OpenVPX control plane • XMC PCIe up to Gen3, designed for up to 25W thermal dissipation • Dual x16 PCIe Gen3 on OpenVPX expansion plane with switch • PCH integrated in Xeon D SoC • Core Function FPGA (Xilinx UltraScale) and IPMI (Microsemi SmartFusion) • Air and conduction-cooled • TrustedCOTS
-

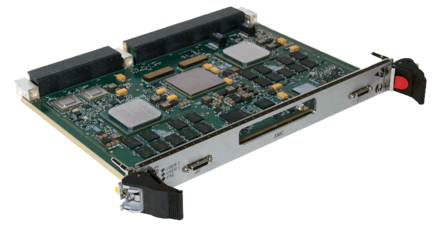

CHAMP™-XD2High Performance Multi-Core HPEC Module based onthe Intel Xeon Processor D
Curtiss-Wright Intel OpenVPX 防衛Key Features • Dual processor Xeon D 8-core (820 GFLOPS @ 1.6 GHz total) or 12-core (1152 GFLOPS @ 1.5 GHz total) • Extended operating temperature Intel eTEMP SKUs • PCH integrated in Xeon D SoC • Four ports of 40G/10G Ethernet or DDR/ QDR/FDR10 InfiniBand on OpenVPX data plane • Native dual KX 1 GigE or KR 10 GigE ports on OpenVPX control plane • 16 to 32 GB DDR4 @ 2133 mega transfers per second per Xeon D socket (68 GB/s aggregate) • XMC PCIe up to Gen3, designed for up to 25W thermal dissipation • Dual x16 PCIe Gen3 on OpenVPX expansion plane with switch • Core Function FPGA and IPMI • Air and conduction-cooled + Contact Curtiss-Wright for Air-Flow Through (AFT) or Liquid-Flow Through (LFT) options • TrustedCOTS
