条件に該当する製品283件
-
AMC339 – Multi-Channel Multi-Protocol Avionics MIL-STD-1553/ARINC429/ARINC717
VadaTech 1553/ARINC AdvancedMC 防衛・Comprehensive multi-protocol support ・Support for MIL-STD-1553A/B, MIL-STD-1760 ・Support for ARINC 429, ARINC 575, ARINC 717, ARINC 825 ・IRIG-B and IRIG-106 chapter 10 MIL-STD-1553 MT ・Full line rate on all channels simultaneously ・Up to 8 programmable RS-232/422/485 Channels ・Up to 10 Avionics/Digital discrete I/O ・48-bit/100ns Time Stamp
-
VPX6-6900 SRIO Switch
Curtiss-Wright SRIO VPX 防衛・Enables easy implementation of scalable high-performance centralized Digital Signal Processing (DSP) clusters for small, medium and large systems ・Supports Curtiss-Wright DSP and single board computer cards ・Supports star and dual-star topologies ・6U OpenVPX centralized Serial RapidIO® ( SRIO) switch ・Supports MOD6-SWH-24F data-plane profile ・Supports 24 ports of SRIO x4 ports to the backplane ・Each port is capable of operating at 1.25, 2.5 and 3.125 Gbaud per SRIO v1.3 ・1 port SRIO available on the front-panel with a copper CX4 interface ・6U VPX form factor in a 0.8” pitch ・Air-cooled L0 ruggedization
-
VPX6-6802 Ethernet/InfiniBand Switch
Curtiss-Wright infiniBand OpenVPX 防衛・6U OpenVPX™ Fabric40™ Centralized Switch for Data Plane and Control Plane Connectivity ・Supports 16U20F and 20U19F OpenVPX profiles ・Enables easy implementation of scalable high-performance centralized DSP clusters for small, medium and large systems ・Supports dual independent Data Plane and Control Plane fabrics conforming to virtually all popular OpenVPX central switch slot profiles ・Data Plane fabric supports both Ethernet and InfiniBand protocols with speeds up to 40G. ・Supports per-port speeds of 10G, 20G and 40G for 4-lane Fat-Pipe ports. ・Also supports single lane ports up to 10G ・19 or 20 Data Plane ports to the VPX backplane + 2 additional ports and one 1000Base-T Ethernet port to the front panel (AC only) ・Control Plane Ethernet fabric provides 16 or 20 1000Base-X (SerDes) and 2x 1000Base-T Gigabit ports to the back + 2x 10GbE XAUI and one 1000Base-T port to the front panel (AC only) ・Onboard management processor for both Data Plane and Control Plane fabrics ・Control plane supports VLANs, L2 multicast, IGMP snooping, Quality of Service (QoS) ・Spanning Trees, Link Aggregation(LA) ・Jumbo frame support to 9KB ・Supports star and dual-star topologies ・6U VPX form factor with optional 2LM covers ・Air-cooled, conduction-cooled, and air-flow-thru form factors available
-

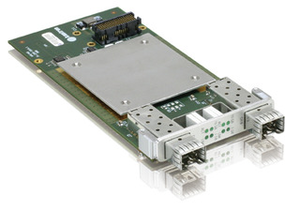

XMC-FPGA05F Virtex-5 XMC/PMC
Curtiss-Wright Fibre Channel PMC/XMC 防衛・Up to four fiber-optic transceivers ・User programmable Xilinx SX95T Virtex-5 FPGA (contact factory for other variants) ・Four banks of 128 Mbyte 16-bit DDR2 SDRAM memory ・PMC/XMC form-factor (HSS links or PCI Express) ・VxWorks, Linux and Windows host support ・FusionXF FPGA Design Kit support ・SerialFPDP HDL support ・Commercial and rugged build options
-
GT-HPDMDD-PCIE
Genetel Systems Fibre Channel PCI Express 防衛・PCIe x8 Interface ・High-speed transmission function using DMA (Max. 800MBytes/s) ・Optical module interface - 4.25GBd Fibre 4 channel (option 2 channel) - 850nm Verical Cavity Surface Emitting Laser Source Technology - SFP Type ・Optical module LINK LEDs ・Operating Systems : Windows XP, Winower Server 2003
-
GT-HPDMDD-16K
Genetel Systems Fibre Channel PMC/XMC 通信・ キャリア・Optical module Interface - 4.25GBd Fibre 4 channel - 850nm Verical Cavity Surface Emitting Laser Source Technology) - SFP Type ・DDR2 Memory - Dual Bank - Max. 1GBytes(512MBytes per Bank) ・TI Corporation's Discovery3000 Board Interface - Max. 1600Frame(1Frame = 1024x768Bit) - LVDS Interface ・HPDMDD-EXT_V2.0 Board Interface - Power - Microprocessor Bus Interface - JTAG Interface - Sync signal - GPIO, Config Switch, Clocks - TEST LEDs, Status LEDs
-
GT-USB to RS232C/I2C
Genetel Systems I2C/SPI その他 試験 環境 生産中止品(EOL)・Single-chip integrated USB 2.0 Transceiver, SIE, and Enhanced 8051 Microprocessor ・Smart Serial Interface Engine ・Integrated I²C-Compatible controller, runs at 100 or 400KHz ・USB Connector : B-Type Connector ・RS232C Connector : mini 4pin connector ・I²C Connector : mini 3pin Connector ・USB Signaling Speed - Full speed : 12 Mbps - High speed : 480 Mbps ・One LED for Power ・One LED for Status
-
GT-PMC-E1
Genetel Systems 通信I/O PMC/XMC 通信・ キャリア 生産中止品(EOL)・8x E1/T1 Trunk Interface ・Single chip frame aligner and line interface ・Embedded HDLC and CAS controller ・Long and short haul line interface
-
GT-IPMC
Genetel Systems IPMI その他 通信・ キャリア 生産中止品(EOL)・Full support for core hardware requirements - ATCA hot swap interfaces - Hardware address detection from backplane - Control of E-Keying governed fabric interfaces - Thermal sensors (LM60 analog and/or DS75 digital) - Payload voltage monitoring - FRU LED management ・easy deployment for customer’s product - Configuration variables in a source file for firmware image build - edit FRU Information and Sensor Data Records (SDR) array in a source file - support call back function for customising
-

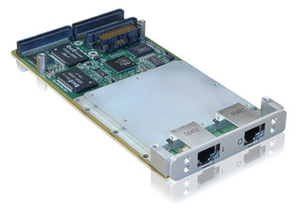

GT-AMC
Genetel Systems Ethernet PMC/XMC 通信・ キャリア・Supports 2 Gigabit Ethernet port at full wire speed ・Compatible extensions to PCI power management and ACPI ・64-bit address support for systems using more than 4 GB of physical memory ・I/O Acceleration Technology2 (IOAT2) · Accelerated TCP I/O ・IEEE 802.3x compliant flow control support with software controllable pause times and threshold values ・Transmit and receive IP, TCP and UDP checksum off-loading capabilities ・IEEE 802.1q VLAN support with VLAN tag insertion, stripping and packet filtering for up to 4096 VLAN tags ・Double Vlan ・SNMP and RMON statistic counters Easy system monitoring with industry standard consoles
