条件に該当する製品248件
-
SOF207(Quad ADC @ 3GSPS, Direct RF Clocking, SOFI Module)
Curtiss-Wright アナログI/O FMC 通信・ キャリアQuad ADC 14-bit @ 3 GSPS (dual AD9208) •Optional additional quad ADC using a further two AD9208 •Direct front-panel clocking of ADCs
-
SOF200(Dual ADC @ 6.4 GSPS, SOFI Module)
Curtiss-Wright A/D FMC 防衛Dual ADC 12-bit @ 6.4 GSPS (dual ADC12DJ3200), supports four channels @ 3.2 GSPS •Dual DAC 16-bit @ 12 GSPS (dual AD9162 or AD9164), supports 6 GHz direct RF synthesis • Sampling clock from host module •Onboard Wideband PLL structure
-

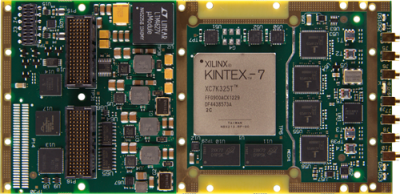

XF07-518 Quad 500MSPS 14b Kintex-7 Digital Receiver XMC
Curtiss-Wright A/D PMC/XMC 防衛4x 500MSPS 14-bit analog input Trigger in/trigger out 160-500MHz external sample clock input Onboard programmable sample clock generator User programmable Xilinx Kintex-7 K325T (-2) FPGA PMC P14 digital IO: 32-differential digital IO pairs (LVDS+RS485) XMC P16 digital IO: 20 differential pairs + 38 single ended digital (LVDS+RS485) Two banks of 128M x 16bit DDR3 SDRAM 1Gbit FLASH for FPGA configuration VxWorks and Linux support FusionXF support for VxWorks and Linux (contact factory for Windows) XMC (x8 PCIe) format Air-cooled (AC L0, AC L100) or Conduction-cooled (CC L200) DDC options
-
SOF203(Quad ADC and quad DAC, SOFI Module)
Curtiss-Wright アナログI/O FMC 防衛Quad ADC 14-bit @ 3 GSPS (dual AD9208), with option to support up to eight channels* •Quad DAC 16-bit @ 12 GSPS (quad AD9162 or AD9164), with option to support up to eight channels* •Separate direct front-panel clocking for ADC and DAC •Onboard clock buffers with ultralow phase noise
-
PC104P-24DSI12-16SDI(4-Channel Low-Power 24-Bit Delta-Sigma PC104-Plus Analog Input Board With 200 KSPS Sample Rate per Channel)
GneralStandardsCorporation A/D PC104 防衛Low noise, 24-bit resolution, low phase distortion and multi-board synchronization make the PC104P-24DSI12 board ideal for state-of-the-art sonar and noise monitoring applications. The 4-channel PC104P-24DSI12-4-16SDI analog input board provides high-density 24-bit analog input resources on a standard PC104-Plus module. Optimized for flexibility and performance with minimum power consumption, the board is ideal for a wide variety of applications, ranging from basic voltage measurement to the analysis of complex audio signals and waveforms. Note: All PC/104-Plus boards are available in a PCI-104 form factor. The ISA connector is not installed for the PCI-104 board. Use the prefix PCI104- instead of PC104P to order a board without the ISA connector. PC/104+ boards can also be ordered with non-stackable PCI connectors by adding -NS to the end of the part number.
-
16AI2O8 ( 18-Channel 1.0 MSPS 16-Bit Analog Input/Output Board With 16 Analog Outputs and Two Simultaneous Analog Inputs)
GneralStandardsCorporation A/D PMC/XMC 物理 天体16 Analog Output Channels 16-Bit Dac per channel 1.0 MSPS Clocking Rate per Channel Dynamic Control of Clocking Rate Open and Circular Buffer Operation 64K-Sample FIFO Buffer 2 Differential Analog Input Channels 16-Bit ADC per channel Simultaneous Sampling 1.0 MSPS Sampling Rate per Channel 64K-Sample FIFO Buffer Software-Selected Analog Ranges: �2.5V, �5V, �10V, 0-5V, 0-10V 8-Bit Bidirectional Digital I/O Port 512 Byte FIFO I/O Buffer Supports Pattern Generation Configurable as Input or Output Port 66 MHz PCI Support
-
AMC523 – μTCA.4 AMC, Dual DAC 16-Bit @ 250 MSPS
VadaTech D/A AdvancedMC 物理 天体・Dual DAC 16-bit @ 250 MSPS utilizing MAX5878 device (user programmable for lower sampling rate) ・Double module, mid-size (full-size optional) compliant to μTCA.4 ・Internal clock or precision external clock from RTM/backplane/front panel clocks ・Trig in/out configurable by software (external trigger via front or port 17) ・x8 PCIe (or dual x4) or dual GbE ・Xilinx Kintex-7 FPGA XC7K410T in FFG900 package ・2 GB of DDR3 memory ・AMC FCLKA, TCLKA, TCLKB, TCLKC and TCLKD are routed ・Quad SFP+ (up to 6.6 Gbps) ・JTAG selectable front and backplane ・AMC.1 and AMC.2 (FPGA programmable) ・DC coupled ・RoHS compliant
-
AMC526 – AMC Dual ADC, Virtex-7, 12-Bit @ 2.6 GSPS
VadaTech A/D AdvancedMC 物理 天体・Dual ADC AD9625, 12-Bit @ 2.6 GSPS in single module, mid-size (full-size optional) ・Xilinx Virtex-7 690T FPGA in FFG-1761 package ・Quad banks of QDR-II+ memory, 576 Mb total (36-bit wide) ・Single DDR3 1Gb (16-bit wide) ・AMC Ports 4-11 are routed to FPGA per AMC.1, AMC.2 and AMC.4 (protocols such as PCIe, SRIO, XAUI, etc. are FPGA programmable) ・AMC Ports 12-15 and 17-20 are routed to the FPGA
-
AMC529 – AMC Dual DAC 14-bit @ 5.7 GSPS Module
VadaTech D/A AdvancedMC 物理 天体・Single module, mid-size per AMC.0 ・Conduction cooled version available ・Dual AD9129 DAC, 14-bit at 5.7 GSPS ・Xilinx Virtex-7 690T FPGA in FFG-1761 package ・Triple bank QDR-II+ memory (432 Mb total) and 1GB DDR3 ・AMC Ports 4-11 are routed to FPGA per AMC.1, AMC.2 and AMC.4 (PCIe, SRIO, XAUI, etc. are FPGA programmable) ・AMC Ports 12-15 and 17-20 optionally routed to the FPGA ・Internal, external or backplane clock with on-board wide-band PLL ・IPMI 2.0 compliant
-
AMC590 – AMC 56 GSPS 8-bit ADC, 1 or 2 channel
VadaTech A/D AdvancedMC 物理 天体 生産中止品(EOL)・8-bit ADC at up to 56 GSPS based on MB8AC2070 ADC ・1 x 56, 2 x 28 or 4 x 14 GSPS channels, user selectable ・Xilinx UltraScale™ XCKU115 FPGA ・24 GB of DDR-4 Memory (3 banks of 64-bit wide, with 8 GB per bank) ・ADC is 65 nm CMOS process technology ・Very low power consumption (5 W for the ADC) ・Single module, mid-size or full-size ・Calibration warning and over-range flags ・15 GHz –3 dB analog input bandwidth ・Internal 14 GHz VCO/PLL per I/Q ADC pair ・Differential analog input: 1.0V PPD
