条件に該当する製品147件
-
CHAMP-WB-D25G – Xilinx Virtex-7 6U OpenVPX Wideband Transmitter with 25 Gsps DAC
Curtiss-Wright D/A OpenVPX 防衛・OpenVPX (VITA 65) MOD6-PER-4F-12.3.1-8; MOD6-PER-1Q-12.3.5-2 VPX REDI (VITA 48 option) ・Single user-programmable Xilinx Virtex-7 FPGAs (X690T), with 8 GB DDR3L SDRAM ・25 Gsps, 10-bit DAC ・20 x backplane SerDes capable of 10.3 Gbps each ・Onboard PCIe Gen3 switch
-
VPX6-195 – 6U VPX SBC with NXP Power Architecture T2080 Processor
Curtiss-Wright PowerPC (FreeScale) OpenVPX 防衛・6U OpenVPX format, support for 2 OpenVPX slot profiles ・Powerful dual processing node general purpose single board computer (SBC) ・Two (2) NXP (formerly Freescale) T2080 Quad-core 64-bit Power Architecture with Altivec @ 1.5GHz ・Up to 8 GB DDR3 SDRAM per processing node ・Full complement of I/O per processing node - Ethernet, serial (RS-232 and RS- 422), ・USB 2.0, 10G Ethernet TTL and differential discretes ・10Base-KX4 Ethernet data plane ports ・VxWorks 7.x BSP and Linux BSPs ・Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and update functions, built-in-test (BIT), and nonvolatile memory sanitization function ・Designed for harsh environment applications, both air- and conduction cooled ・Curtiss-Wright's TrustedCOTS enabled with large Xilinx user programmable FPGA. ・Supports NXP Secure Boot
-
VTX955（1U Open VPX Rackmount Chassis, Two 3U Payload Slots With RTM Support）
VadaTech 筐体 OpenVPX 試験 環境1U Open VPX Rackmount platform with two 3U VPX payload slots. Compatible with 0.8-inch, 0.85-inch and 1.0-inch modules Support for conduction cooled modules Support for Rear Transition Modules (RTMs) Shelf Manager for health management with Tier two support
-
VPXtra HU700HV
Behlman Electronics 電源 OpenVPX 防衛・Open VPX VITA 62 compatible ・Wide input range ・High power DC output ・650w 50msecホールドアップ対応 ・Conduction cooled at card edge ・Conformal coating on PWA ・対応規格 : MIL-STD-704(A~F), MIL-STD-461, MIL HDBK-217F Notice 2
-

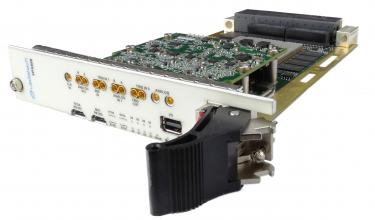

VPX599 – Dual DAC 12 GSPS, Dual ADC 6.4 GSPS, Kintex UltraScale™, 3U VPX
VadaTech アナログI/O OpenVPX 防衛・3U FPGA Dual DAC and dual ADC per VITA-46 ・Xilinx Kintex UltraScale™ XCKU115 FPGA ・Dual ADC @ 6.4 GSPS 12-bits or quad ADC at 3.2 GSPS ・utilizing the TI ADCDJ3200 (option for ADCJ2700 or ADCJ1600) ・Dual DAC @ 12 GSPS 16-bits (AD9162 or AD9164) ・High-performance clock jitter cleaner ・VHDL reference design with source code ・Protocols such as PCIe, SRIO, 10GbE/40GbE, etc.are FPGA programmable ・16 GB of DDR-4 Memory (64-bit wide)
-
VPX6-684 Ethernet Switch/Router
Curtiss-Wright スイッチ/ルーター OpenVPX 防衛・Fully managed, intelligent multi-layer (layer2/3) gigabit Ethernet switch in a 6U VPX form factor ・Complies to OpenVPX switch profile: SLT6-SWH-4F24T ・Complete range of convection and conduction cooled formats (IEEE 1101.1 and IEEE 1102.1) with shock and vibration support ・Up to 24 x 1GbE (10/100/1000 Mbps) auto-negotiating copper interfaces (4 of the ports can be optical) ・Up to 4 x 10GbE (10 Gbps) XAUI interfaces ・Transient voltage suppressors on each GbE port to protect from electrostatic discharge (ESD), cable discharge events (CDE), lightening and other induced voltage surges ・Wirespeed performance for all packet sizes at layer 2 or layer 3 including jumbo packets ・EIA232 out of band serial management and 100Base-T debug port ・Ideal for architecting IPv4, IPv4/v6, or pure IPv6 transformational network architecture with support for intelligent routing ・Flexible network management, monitoring, and configuration capability via CLI, Telnet, Web, and SNMP interfaces ・Supports latest switching/routing features for layer 2 switching; layer 2 multicasting; VLANs; Spanning Tree (Rapid and Multiple); link aggregation; port mirroring; CoS/QoS features; layer 3 IPv4/v6 routing; tunneling; IP Multicasting ・Ubiquitous security including Secure Memory Erase; user authentication; port based security; protocol-based security; broadcast storm control; secure sockets layer (SSL); secure shell (SSH); stateless firewall capability; flexible Access Control Lists (ACLs); Network Address Translation (NAT) and Multi-cast NAT ・Extensive Built in Test (BIT) capability including Power up BIT, Initiated BIT and Continuous BIT.
-
VPX6-6802 Ethernet/InfiniBand Switch
Curtiss-Wright infiniBand OpenVPX 防衛・6U OpenVPX™ Fabric40™ Centralized Switch for Data Plane and Control Plane Connectivity ・Supports 16U20F and 20U19F OpenVPX profiles ・Enables easy implementation of scalable high-performance centralized DSP clusters for small, medium and large systems ・Supports dual independent Data Plane and Control Plane fabrics conforming to virtually all popular OpenVPX central switch slot profiles ・Data Plane fabric supports both Ethernet and InfiniBand protocols with speeds up to 40G. ・Supports per-port speeds of 10G, 20G and 40G for 4-lane Fat-Pipe ports. ・Also supports single lane ports up to 10G ・19 or 20 Data Plane ports to the VPX backplane + 2 additional ports and one 1000Base-T Ethernet port to the front panel (AC only) ・Control Plane Ethernet fabric provides 16 or 20 1000Base-X (SerDes) and 2x 1000Base-T Gigabit ports to the back + 2x 10GbE XAUI and one 1000Base-T port to the front panel (AC only) ・Onboard management processor for both Data Plane and Control Plane fabrics ・Control plane supports VLANs, L2 multicast, IGMP snooping, Quality of Service (QoS) ・Spanning Trees, Link Aggregation(LA) ・Jumbo frame support to 9KB ・Supports star and dual-star topologies ・6U VPX form factor with optional 2LM covers ・Air-cooled, conduction-cooled, and air-flow-thru form factors available
