製品カテゴリ その他 フォームファクタ CompactPCI ・Rugged 1 ATR 160 mm conduction-cooled module ・592 Watt maximum rated power output ・87% Typical efficiency ・18-36 Vdc Input range ・MIL-STD-1275B/MIL-STD-704E compliant 28 VDC input ・MIL-STD-461E compliant, built-in EMI/RFI input filter ・Input transient (surge) protection ・Input reverse polarity protection ・Output over/under voltage and shortcircuit protection ・Suitable for VME and CompactPCI systems ・Automatic Recovery ・Remote ON/OFF ・Slightly smaller than 6U size to facilitate use in 1 ATR applications

VME-194-Freescale-QorIQ-P2020-product 製品カテゴリ CPUボード フォームファクタ VMEbus Powerful general-purpose single or dual processor SBC NXP Power Architecture QorIQ P2020 processor up to 1.2 GHz Full complement of I/O capability (Ethernet, SCSI, serial, USB 2.0, MILSTD- 1553, SATA, TTL and differential discretes) VxWorks BSP and Driver Suite INTEGRITY BSP and Driver Suite Yocto Linux based on NXP SDK Comprehensive foundation firmware including BIT, non-volatile memory programmer, and secure erase utility Designed for harsh environment applications, both air- and conductioncooled Supports upgrade path from 179, 181, 182, 183,184, 186 and 194 SBCs

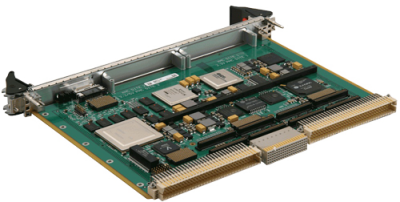

VME-186-Freescale-QorIQ-P40404080-SBC-product 製品カテゴリ CPUボード フォームファクタ VMEbus QorIQ P4080 communications processor with eight Power Architecture processor cores, high-performance datapath acceleration logic, network and peripheral bus interfaces required for mil/aerospace applications 8 e500MC cores at up to 1.5 GHz 4 or 8 e500MC cores running up to 1.5 GHzh Two x8 PCIe XMC sites Memory: Up to 8 GB DDR3 SDRAM with ECC controlled by dual 64-bit controllers 512 MB NOR flash 8 GB onboard NAND flash 512 KB FRAM (2) XMC/PMC I/O: (3) Gigabit Ethernet interfaces (4) asynchronous EIA-232 serial ports and up to (4) sync/async EIA-232/422/485 serial channels (2) SATA, (2) USB 2.0, (14) DIO, (16) DIFFIO, (2)1553 Fabric Interconnect Ports Two 64-bit PMCs on independent PCI buses 2eSST-capable VME interface Software Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function Wind River VxWorks 6.8/6.9 SMP Wind River Linux 4.x INTEGRITY available from Green Hills Software Additional Features Designed for embedded harsh-environment applications, both air- and conduction-cooled VME-186 is backwards compatible (features and pinout) with the Curtiss-Wright VME-179, 181, 182, 183, 184 and 194 SBCs

製品カテゴリ CPUボード フォームファクタ VMEbus Intel Core i7 Broadwell 5th Generation processor Quad-Core (8-thread) i7-5850EQ at 2.7 GHz with Turbo up to 3.2 GHz; Up to 32 GB DDR3L Up to 128 GB SATA NAND flash Supports two PMC/XMC expansion mezzanines Supports Linux (Fedora and Red Hat Enterprise Linux (RHEL)), VxWorks, Microsoft Windows Embedded Standard and LynxOS Available in air-cooled and conduction-cooled versions

製品カテゴリ CPUボード フォームファクタ VMEbus Powerful general-purpose single board computer with NXP 8640/8641 PowerPC processor Single or dual e600 cores at 1.0 GHz Memory: 2 GB DDR2 SDRAM controlled by dual 64-bit controllers 256 or 512 MB flash 128 KB autostore NVSRAM I/O: (3) Gigabit Ethernet interfaces (2) asynchronous EIA-232 serial ports and up to (4) sync/async EIA-232/422/485 serial channels (2) SATA, (2) USB 2.0, (14) DIO, (16) DIFFIO, (2)1553 Fabric Interconnect Ports Two 64-bit PMCs on independent PCI buses 2eSST-capable VME interface Software Continuum Software Architecture (CSA) firmware providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function Wind River VxWorks 5.5.1 and 6.7 Wind River VxWorks 6.8 SMP Wind River Linux 3.0 Continuum Vector Signal Processing Software INTEGRITY available from Green Hills Software LynxOS available from Lynx Software Technologies Additional Features Designed for military harsh-environment applications, both air- and conduction-cooled Latest VME version of Curtiss-Wright's backwards compatible with 17x and 18x series of single board computers

製品カテゴリ CPUボード フォームファクタ VMEbus Single or dual NXP Power Architecture 7447A/7448 (AltiVec Technology-enhanced) CPUs, each with: 64 KB L1 cache 512 KB/1 MB internal L2 cache ECC option on 7448 internal L2 cache Altivec-enabled e600 core (previously referred to as G4 core) 9.6 GFLOPS peak processing power at 1.2 GHz core frequency (2) 64-bit PMCs on independent PCI buses (1) 100 MHz PCI-X, one 66 MHz PCI-X Optimized cooling of conduction-cooled PMCs Controlled impedance routing of Pn4 I/O for digital video, StarFabric, Fibre Channel and other high-speed interfaces Memory: High-performance Discovery III system controller - dedicated CPU-to-SDRAM path reduces memory read latency Up to 2 GB of DDR SDRAM with ECC Up to 512 MB of contiguous direct-mapped Flash 128 KB AutoStore nvSRAM with hardware write protection I/O: (3) Gigabit Ethernet interfaces (1x 10/100BASE-T, 1x GbE to P0, and 1x 10/100 BASE-T or GbE) (2) asynchronous EIA-232 serial ports and up to (4) sync/async EIA-232/422/485 serial channels (2) SATA, (2) USB 2.0, (14)DIO, (16) DIFFIO, (2)1553 Software Wind River VxWorks 5.5.1 and 6.x Wind River Linux 3.0 Continuum Vector Signal Processing Software LynxOS and Lynx178B available from Lynx Software Technologies INTEGRITY available from Green Hills Software VxWorks 178B (6.6 cert) available from Wind River

CHAMP-AVII-angle-product 製品カテゴリ CPUボード フォームファクタ VMEbus Quad Power Architecture 7447A/7448 processors at up to 1.25 GHz 64 Kbytes L1 and 1 Mbyte (7448) L2 internal caches operating at core processor speed Up to 512 Mbytes DDR-250 SDRAM with ECC per processor (2 Gbytes total) 256 Mbytes Flash with write protection 128 Kbytes NVRAM QuadFlow architecture with 3.2 GB/s peak on-board throughput Each processor has Gbe connection to on-board GbE switch Two ports from GbE switch routed to backplane VME interface with 2eSST support Support for two 64-bit, 100 MHz PCI-X mezzanine modules (PMC-X) Four EIA-232 serial ports, one per processor node Support for StarFabric PMC modules with differential routing to backplane Multi-board synchronous timer Eight discrete LVTTL I/O signals, 2 selectable as interrupt inputs VxWorks 6.x & 5.x BSPs Linux SDK from Curtiss-Wright (2.6 kernel) Green Hills INTEGRITY BSP IPC inter-processor communications library Gedae graphical development environment support Continuum Vector optimized AltiVec DSP function library with VSIPL support Range of air and conduction-cooled ruggedization levels available

・6U, 4HP (0.8") single-width slot VXS form factor ・100 high-speed serial lanes ・18 Backplane Payload Slot ports (4 lanes each) ・12 Front panel Fiber Optic port connectors (one lane each) ・4 Backplane Interswitch Link ports (4 lanes each) ・Up to 3.2 Gbps signaling rate per lane ・Linkable to a second VXS3200 switch through Interswitch Link ports ・Extended temperature air-cooled design (0° to +65° C operating)

・Provides three additional XMC/PMC expansion sites via PCI Express (PCIe) to the Host Processor through on-board connector 　　・One 133 MHz 　　・Two 100 MHz ・Optional Integrated ATI Radeon E2400 Graphics Processing Unit providing x8 PCIe video port with two XMC/PMC expansion sites: 　　・Two 133 MHz

・3x Gigabit Ethernet, and 2x 10/100 ・6U VME SBC ・Up to 2 GB DDR2 SDRAM with ECC for each node ・Power Architecture 8641D/8641 or 8640D/8640 ・Dual or Single Node Processor Configuration ・VME64 2eSST interface ・VTM23 Rear Transition Module ・Download our Ruggedization Levels guide (also available from the Downloads tab)
