条件に該当する製品470件
-
MPMC-9H5x Multi-Platform Modular Computer Hybrid VPX™ and VME, 3U/6U System
Curtiss-Wright 堅牢システム筐体 VPX 防衛• Hybrid backplane + Mix of VPX and VME buses + Mix of 3U and 6U slots • Natural convection-cooling • Volume optimized: + 14.2 x 9.0 x 9.1” (360.68 x 228.6 x 231.14 mm) • Standard configuration + 1 x FCP III + 8610 processor • Power supply + 28 VDC input + MIL-STD-704 compliant
-
MPMC-965x Multi-Platform Modular Computer 5-slot 6U VPX™,VME or VXS System
Curtiss-Wright 堅牢システム筐体 VPXProcessing: Intel or NXP Power Architecture • 6U backplane: VPX, VME or VXS • Weight fully populated: 40 lb (18.14 kg) • Dimensions (L x W x H): + 12.5 x 7.5 x 8.3” (317.5 x 190.5 x 210.82 mm) • Power supply: 28 VDC input per MIL STD-704E, DO-160E • Optional interfaces + MIL-STD-1553 – up to two dual redundant channels + ARINC 429 – up to 32 channels + Video up to 4 outputs: DVI, LVDS or VGA + Optional PowerPC™ video processor + Video input, up to 6 channels, NTSC, PAL, RS-170
-
MPMC-962x Multi-Platform Modular Computer 2-slot 6U VPX™ or VME System
Curtiss-Wright 堅牢システム筐体 VPX 防衛Processing: Intel or NXP Power Architecture • 6U backplane: VPX or VME • Weight fully populated: 25 to 31 lb (11.34 to 14.06 kg) • Dimensions (L x W x H): + NC: 12.5 x 5.8 x 8.25” (317.5 x 147.32 x 209.55 mm) + FC: 12.5 x 5.8 x 11.3” (317.5 x 147.32 x 287.02 mm) • Power supply: 28 VDC input per MIL STD-704E, DO-160E • Optional interfaces + MIL-STD-1553 – up to two dual redundant channels + ARINC 429 – up to 32 channels + Video up to 4 outputs: DVI, LVDS or VGA + Optional PowerPC™ video processor + Video input, up to 6 channels, NTSC, PAL, RS-170
-
MPMC-961x Multi-Platform Modular Computer Single-slot6U VPX™ or VME Subsystem
Curtiss-Wright 堅牢システム筐体 VPX 防衛Processing: Intel® or Power Architecture® • 6U VPX or VME backplane • Single-slot chassis: 3.9 x 9.6 x 11.48” (99.06 x 243.84 x 291.59 mm) • Power supply: 28 VDC input at up to 60W Applications • Technology refresh – easy retrofit • Ethernet switch • General processing • Video and image processing • Mission computing
-
MPMC-967x Multi-Platform Modular Computer 7-slot 6U 1 ATR(VPX/VME)
Curtiss-Wright 堅牢システム筐体 VMEbus 防衛1 ATR • 6U backplane: OpenVPX/VME/Hybrid • Low weight: Under 20 kg fully populated • Volume optimized – single-slot chassis (W x H x D): 287 x 211 x 420 mm • Power supply: 28 VDC or 115 VAC + 600 W at 55°C + 310 W at 71°C • Non-ITAR Solution + Part of a family of solutions not restricted by ITAR
-
MPMC-9337-2000 3U VPX 3-Slot Compact Signal/Image Processing System
Curtiss-Wright 堅牢システム筐体 VPX 防衛3U VPX backplane • Cold-plate cooling • SWaP-optimized • Configuration + 1 x 3U VPX SBC + 1 x 3U VPX GPGPU + Dual channel CAN/MilCAN offload controller + 2 or 4 x 1000BASE-T Ethernet ports + 4 x 10GBASE-SR Fiber Ethernet ports + 1 x spare 3U VPX slot • 28 VDC input Applications • Signals Intelligence • Radar • Airborne or ground vehicles
-
8-Slot CMOSS/SOSA Aligned 3U VPX Highly Configurable Solution Purpose-built for GroundMobile/Ground Combat Environments
Curtiss-Wright 堅牢システム筐体 VPX 防衛8 CMOSS/SOSA aligned slots Natural convection cooling Dual, load-sharing/redundant power supplies Embedded Chassis Manager Slots for A-PNT, network switch, SBC and RF payloads Applications Ground combat vehicle electronic infrastructure Ground tactical vehicle electronic infrastructure High performance ground or rotary wing processing applications
-

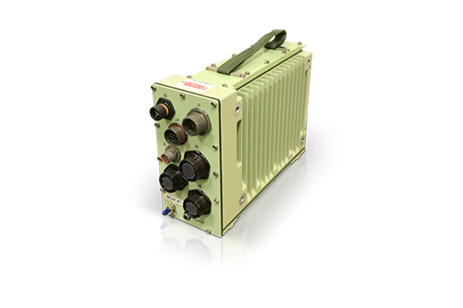

CMOSS/SOSA Starter Kit 3U VPX System, Aligned CMOSS & the SOSA
Curtiss-Wright 堅牢システム筐体 VPX 防衛The CMOSS/SOSA Starter Kit features a powerful Intel® single board computer (SBC), VICTORY Ethernet switch, and standards-based Assured-Positioning, Navigation, and Timing (A-PNT) module, packaged in a compact enclosure in alignment with CMOSS/SOSA standards. The vehicle infrastructure capabilities provided by the CMOSS/SOSA Starter Kit are as follows: VPX3-687: VICTORY Network Switch Module This integrated Ethernet switch provides 1GbE VICTORY network capabilities to the platform. VPX3-673: A-PNT Module This integrated A-PNT card has an integrated CSAC, IMU, and GBGRAM Type-II SAASM/M-Code receiver. External network-enabled sensors can also be added and integrated with the pntOS software. VPX3-1260: Intel 8th Gen Xeon Processor This integrated Intel 8th Gen Xeon E-2276ME single board computer provides general-purpose processing for hosting battle management software (JBC-P/MMC), in addition to other applications, in a virtualized environment
-
MPMC-9366-0001 6-slot 3U VPX Mission Computer
Curtiss-Wright 堅牢システム筐体 VPX 防衛Multi-channel high speed ADC and DAC • FPGA processing • Removable storage • 6-slot 3U VPX backplane • 28VDC PSU with 50 ms holdup • Integral high performance fan and heaters • Operating Temp. -51°C to +71°C • Environmentally Qualified • Controlled by UK export regulations Applications • SIGINT • RADAR
-
MPMC-9365-0001 Multi-Platform Mission ComputerVPX™ 6-slot 3U System
Curtiss-Wright 堅牢システム筐体 OpenVPX 防衛rocessing Up to three Intel® Core™ i7 (3rd Gen) Quad-Core Dual Xilinx® Virtex®-7 FPGA Internal Fabric Fact Sheet 5-port Gen2 PCI Express® (PCIe) switch with x4 link to each slot 8-port Gb Ethernet Switch Interfaces (4) Ethernet – 10/100/1000Base-T (2) USB (16) 28V discrete inputs (16) Fiber-optic or coaxial connections Other interface options available e.g. MIL-STD-1553 3U VPX Backplane 6 slots (5 payload, 1 switch) plus PSU Storage Embedded SSD option Mechanical Volume optimized Weight: 22.5lbs (10.2kg) Size (W x L x H)-- 5.7” x 12.5” x 8.5” 144 x 316 x 216mm Power Supply 28VDC per MIL-STD-704F
