・Up to 32 ARINC429 Transmitter Channels concurrently ・Bit transmission rates and duty cycles are selectable for each channel and the 12.5 kbits/sec and 100 kbits/sec transmit modes are supported ・Rate Oriented, Block, and Acyclic Label Transmission modes support all simulation needs ・Error injection for each Label Transfer: short gap, parity, bit count, coding ・Programmable gaps between Labels ・Up to 32 ARINC429 Receiver Channels concurrently ・Label/SDI selective receive, sequential receive modes ・Multi-buffering with real-time data buffer updates ・Triggering and filtering ・Upper and lower limit check ・Trigger on specific or any error ・Label content and sequential dependent trigger ・Label selective and label data contents dependent filter ・Label selective and label data contents dependent interrupts ・Programmable gaps between Labels ・VxWorks, Linux and Windows 2000 driver available directly from AIT (Avionics Interface Technologies) ・PCI 2.1-compliant 64-bit, 66 MHz interface ・Needs only 5V from the basecard, no other voltages required ・Available in ruggedization levels, level 0 and 200 conduction-cooled ・Product Support provided by AIT (Avionics Interface Technologies)

Mixing, blending, scaling and windowing of RGB and DVI inputs into a single DVI output ・Convert high-definition RGB analog input to DVI output ・Can be used as a 2x1 switch to select either RGB or DVI input ・Simple software interface to control the mixing/blending parameters and scale and position of video windows ・Available as a low-power PMC deployable in a wide range of applications and environments

・Dual-channel high resolution MPEG4 Part 10 / H.264 compression of resolutions and frame rates up to 1920x1200 ・1 channel of 1080p60 encode OR decode ・2 channels, each channel can be encoding or decoding simultaneously at resolutions up to 1080p30/1080i60 ・Available as a PMC module offering easy integration onto many single board computers (SBCs) and carrier ・Low power design for deployment into harsh environments in a wide range of defence and aerospace applications ・PAL/NTSC, DVI and RGB input as standard, designed to support other interfaces in the future ・Programmable compression ratios with option to transfer uncompressed video ・Fully integrated into the VDS and Sentric2 product families for video distribution and storage

・Dual-channel, dual-trigger radar interface card ・PMC or half-length PCI form factor ・Two analog inputs (four on Osiris B) ・Eight digital input bits ・Dual azimuth inputs (ACP/ARP, RADDS, synchro, other formats) ・Sampling up to 50 MHz per channel ・Correlation in range and azimuth ・Gain and offset control as a function of range ・Radar range up to 500 NM with up to16 k samples per return

・Video Inputs 　　・Up to 10 video inputs with a maximum of 2 selectable for use 　　　・PAL / NTSC, Composite or Y/C 　　　・Front panel or P4 video input 　　・Video Output 　　　・Up to 2 video output channels 　　　　　・PAL / NTSC Composite or Y/C 　　　・Front panel or P4 video output 　　・Video Compression 　　　・JPEG2000 compression technology 　　　・4:2:2 video coding 　　　・Up to 2 independent channels configurable as input or output 　　　・Configurable compression ratio 　　　・JPEG2000 compressed data input / output via PCI interface ・Air-cooled and conduction-cooled variants available ・Software Support 　　・Software support for Windows, Linux and VxWorks 　　・For detailed OS support information please consult factory 　　・Includes device driver, board support library and application examples

・Two 10GBase-T ports ・Rear I/O ・XMC form factor ・Conduction Cooled ・Supports Jumbo Frames up to 15.5 KB ・Integrated IPsec and MAC sec Security Engines ・Auto-negotiate between 100Mbits, 1Gbps and 10Gbps speeds ・128 Transmit and Receive Queues (per port) ・64-bit address support ・TCP/UDP/IP checksum offload, TCP segmentation offload ・IEEE 1588 Precision Time Protocol support ・PCI Express v2.1 with 5.0 GT/s and 2.5 GT/s support for x1, x2, x4 and x8 link widths ・Support Windows, Linux and VxWorks ・RoHS compliant ・802.1Q VLAN support ・Mezzio module with two RJ45 connectors ・Supports Category 6 and 6A Cable via optional mezzio ・Ethernet ports mapped to X12d or X8d per VITA 46.9 ・VITA 42.0 (XMC) ・XMC Connector P15 VITA 42.3-8 Lane PCIe ・XMC Connector P16 VITA 42.9 pattern mapping ・Complies with ANSI/VITA 20-2001 (CC PMC), IEEE 1386 (CMC), IEEE 1386.1 (PMC)

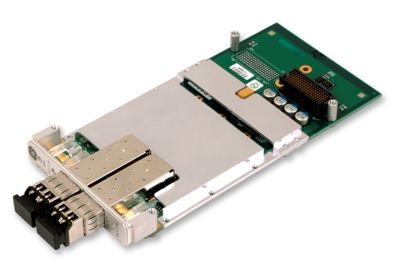

・Two 10GbE ports ・Front or Rear I/O ・XMC form factor ・Intel 82599ES Dual 10GbE Controller ・Supports Jumbo Frames ・128 Transmit Queues ・64-bit address support ・Dual SFP+ ports on front panel supporting 10GBase-SR, 10GBase-LR, 10GSFP+Cu 　Bi-color LED for 10Gb/s Link status and Activity per port ・Eight lanes PCI Express (Gen2) ・Support for Data Center Bridging (DCB) 　(802.1Qaz, 802.1Qbb, 802.1p) ・Rear I/O supports CX4 and KX4 ・802.1q VLAN support ・Support for Windows, Linux and VxWorks ・RoHS compliant ・Option for PXE Boot

・For Ruggedization Levels, please see the configuration guide under the downloads tab ・Support full duplex operation ・Fits any PMC site from which it only requires 5V supply ・Shared 1Mb memory based switch fabric with true non-blocking switching performance ・Integrated with 8 auto-crossover Fast Ethernet transceivers ・28 - 32-bit and 2- 64-bit RMON counters per port ・802.1X MAC authentication ・8K MAC address lookup table with automatic learning ・8-port 10/100BaseT unmanaged Ethernet switch ・Switching at wire speed

・Full wire speed Layer 2 switching on all ports ・Serial console signals routed to P4 ・Onboard NIC is connected to an eighth port on the switch ・PIM available to access the rear ports ・Single port Gigabit Ethernet controller appears as a network interface to the host ・Four ports accessible from front RJ45 connectors, three ports routed to P4 ・Seven 10/100/1000BaseTX port;auto-negotiating; supports full or half duplex ・Unmanaged Layer 2 Gigabit Ethernet switch ・4K MAC address table ・Auto address learning Auto address aging ・802.1p QoS ・802.1Q VLAN ・Broadcom BCM5388 switch fabric

・Up to 8 port-based VLANs ・Provides both Full/Half duplex ports ・Flow Control capabilities including back pressure for half-duplex and 802.3x flow control for full-duplex ・Enables mixed voice-data networks ・Provides port-based prioritization of packets on 4 ports ・Auto address learning ・Auto address aging leading edge QoS capabilities, based on 802.1p, and IP TOS/DS field ・1k MAC address table ・Full wire speed ・Eight 10/100Mbps auto-negotiating ・NIC is connected to the switch at 100 Mbit full duplex ・Onboard NIC at 100Mbit full duplex ・Unmanaged Layer 2 switch ・4 front accessible 100BaseFX ports and 4 10/100BaseTX ports routed to rear I/O
