条件に該当する製品156件
-
SIO8BX2V( Eight Channel High Performance Serial I/O PCI CARD Featuring Multi-Protocol Serial I/O with Software Configurable Cable Transceivers and 32k byte FIFO Buffers (512k byte total))
GneralStandardsCorporation シリアル PCI Express 通信・ キャリアEight Channel High Performance Serial I/O PCI CARD Featuring Multi-Protocol Serial I/O with Software Configurable Cable Transceivers and 32k byte FIFO Buffers (512k byte total) Four Lane PCI Express (PCIe4) Interface Eight Independent Multiprotocol Serial Channels Serial Mode Protocols include Asynchronous, Monosync, Bisync, SDLC, HDLC, Nine-Bit, and IEEE 802.3 Synchronous Serial Data Rates up to 10 Mbits/sec Asynchronous Serial Data Rates up to 1 Mbit/sec Independent Transmit and Receive FIFOs for each Serial Channel 32k byte each Multi-protocol Transceivers support RS422 (V.11)/RS485, RS232 (V.28) Parity and CRC detection capability Programmable Oscillators provide increased flexibility for exact Baud Rate Clocks Utilizes two 68-pin VHDCI front edge I/O Connectors Eight Independent RS422/RS485/RS232 Serial Channels Eight signals per channel, configurable as either DTE or DCE: 3 Serial Clocks (TxC,RxC,AuxC), 2 Serial Data signals (TxD,RxD), CTS, RTS, and DCD. Unused signals may be reconfigured as general purpose IO. Fast RS422/RS485 Differential Cable Transceivers Provide Data Rate up to 10Mbps RS423 and RS232 Cable Transceivers Provide Data Rate up to 230kbps Industry Standard Zilog Z16C30 Multi-Protocol Universal Serial Controllers (USC®) Optional cable adapter to eight DB25 connectors A variety of device drivers are available, including VxWorks, Windows, WinCE, Linux, and Labview Industrial Temperature Option Available
-
OPTO32A(Optically-Isolated I/ O with Change-of-State Interrupts)
GneralStandardsCorporation デジタルI/O PMC/XMC 通信・ キャリアThe PMC-OPTO32A board has 32 optically-coupled digital I/O channels consisting of 8 outputs and 24 inputs. Each channel is electrically isolated (1000 Volts) from the host processor board. Change-of-State Interrupts allow for an interrupt to the PMC host to be generated from any level change on any input. Built-in-self-test, selectable debounce times, input pulse counter, and I/O voltages to 50 Volts makes for a versatile digital interface board.
-
OPTO32B
GneralStandardsCorporation デジタルI/O PCI 通信・ キャリアThe PCI-OPTO32B board has 32 optically-coupled digital I/O channels consisting of 8 outputs and 24 inputs. Each channel is electrically isolated (1000 Volts) from the PMC host processor board. Change-of-State Interrupts allow for an interrupt to the PCI host to be generated from any level change on any input. Built-in-self-test, selectable debounce times, input pulse counter, and I/ O voltages to 50 Volts makes for a versatile digital interface board.
-
DMI32(Very High-speed Parallel Digital Input/Output Board Up to 200 Mbytes/s Cable I/O)
GneralStandardsCorporation デジタルI/O PCI Express 試験 環境The PCI-DMI32 board provides for data I/O via the cable at up to 200 Mbytes per second (LVDS differential I/O) and can transfer data indefinitely without host intervention. The data path is up to 32 bits wide. The board will interface to a wide variety of digital I/O devices and will operate back-to-back with a second board to provide a high-speed PCI-to-PCI Interface. Bi-directional handshake signals can be user defined and programmed by the factory to accommodate almost any handshaking protocol (Contact factory).
-
FMC151(Multi I/O FMC Module, ECL or NECL Input/Output, RS-422 and Fiber Optics )
VadaTech シリアル FMC 物理 天体12 x TX ECL or NECL RX/TX •4 x RS-422 RX/TX •Dual Fiber Optics ST style (1300-nm wave length, 2KM)
-
AMC080/080C(High Density Versatile Multi I/O Module)
VadaTech パラレル AdvancedMC 物理 天体AMC module with 120 I/O via front panel •Conduction cooled version available •15 banks of 8-bit I/O. Each bank is configurable as Input and/or output •I/O’s are configurable as +3.3V or +5V per bank
-
AMC082(High Density Isolated Serial I/O Module)
VadaTech パラレル AdvancedMC 物理 天体AMC module with 32 serial-in and 32 serial-out via front panel •RS-422/423 (ANSI TIA/EIA-422B, TIA/EIA-423-B) •Conduction cooled version available •Front panel I/O via High Density Connector (HDC)
-
AMC013(Isolated I/O Expansion)
VadaTech シリアル AdvancedMC 通信・ キャリアIsolated RS-485 •Ten Isolated Output •Ten Isolated Input •Single ST Style Fiber optical output
-
AMC081/081C(High Density Isolated Serial I/O Module)
VadaTech パラレル AdvancedMC 物理 天体AMC module with 16 serial in and 16 serial out via front panel •RS-422/423 (ANSI TIA/EIA-422B, TIA/EIA-423-B) •Conduction cooled version available •Front panel I/O via High Density Connector (HDC)
-

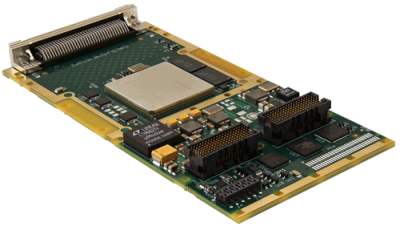

XF07-523 FPGA Digital IO XMC
Curtiss-Wright パラレル PMC/XMC 防衛Digital IO Front panel(air cooled onyl) 32x LVDS PMC P14/XMC P16: 32x LVDS (P14) or 20x LVDS +38 SE (P16) FPGA Type Xilinx Kintex-7 K325T, speed grade 2 Main Memory Size/Type 2x 128M x 32/DDR3 SDRAM Software/HDL Tools FusionXF for VxWorks or Linux
