Bootable: • Can be used as a boot device CompactFlash Socket: • For Type I and II Cards IDE Support: • Connectors for both 40- and 44-Pin IDE Cabling LED Indicators: • Activity and Power Master/Slave: • Jumper Configurable Mounting Holes: • For Flush Mount or L-Bracket Installation (brackets included) Power Interface: • For 40-pin IDE Software: • No Drivers required; Compatible with Windows, Linux, QNX systems with IDE

MHeader: 10-Pin Power Header (Dual Row 0.100 inch) Bus: 16-Bit PC/104 (ISA) bus Exras: Set of 8 Nylon Board Stand-offs (with Nuts and Screws) Other Features: Standard PC/104 Mounting Holes; Spacer PCB Dimensions: 3.55" x 0.55" (part 1), 3.55" x 0.40" (part 2) Operating Temperature: -40°C to +85°C (-40°F to +185°F) Power Input: +5/+12vdc Board Dimensions: 3.550" x 3.775" Special Order Options: Conformal Coating Non-RoHS Compliant Version (PRV-0414-04)

Dimensions: Storage Temperature: 3.550" x 3.775" (PC/104) -40° to +70° C Operating Temperature: -5° to +60° C Power Consumption: 1.72 Watts (+5 VDC @ 300 mA) Power Input:: Fuses: 5VDC +/- 5% 0.5 amp, 125 v, Picofuse PCB Septum Dimensions: 3.2" L x 0.6" H x 0.6" T Bus: 16-bit PC/104 (ISA) Bus Fan Specs: RoHS Type: Ball-Bearing, Brushless; Rating: 12 CFM Fans; Fan Noise (at 1 Meter): 25 dB; Fan Speed: 6000 RPM; Life Expectancy: 50,000 hours RoHS (2002/95/CE) Compliant Replacement for PRV-0509-01

100 Watt PC104+ / PCIe104 Power Supply • MIL-STD-704F & MIL-STD-1275D Compliance • MIL-STD-461F EMI Filter / Power Conditioning • 18V to 36VDC Input Range • +3V, +5V, +12V DC Output • Extended Temperature: -40 to +85C • MIL-STD-810G Shock/Vibe/Thermal

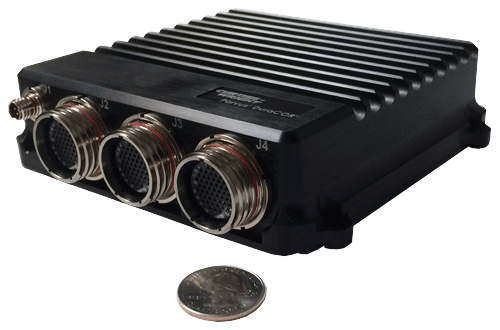

Miniature fanless embedded Intel Atom processor system:– Small size: ~5.2” x 5.4”x 1.4” (LxWxH)– Lighweight: <1.5 lb (< 0.68 kgs)– Low power: <25W Rugged IP67 chassis with high-density MIL-performance circular connectors Modular I/O architecture: up to three slots for Mini PCIe Cards (for add-on I/O) Rugged solid-state data storage (mSATA/ removable 2.5” SATA SSD) 1000BASE-T Ethernet with TSN support Wide voltage input MIL-STD-1275/704/ DO-160 power supply Applications In-vehicle and airborne rugged embedded computing and sensor integration Civil and military SWaP-sensitive C5ISR and situational awareness upgrades Fixed-wing and rotary helicopter platforms, industrial applications Manned and autonomous vehicles (UAV, UUV, UGV, USV

Industrial NVIDIA Jetson Tegra X2i SOM + 6-core Arm v8 (Cortex-A57 + Denver 2) + 256 CUDA core Pascal GPU capable of ~1.3 TFLOPS 16-bit floating point + ECC Memory and full industrial temp • Miniature SWaP-optimized form factor: + Small size: ~2.0 x 5.2 x 5.4” (5.2 x 13.2 x 13.6 cm) + Lightweight: ~ 2.1 lb (0.95 kg) + Power: < 26W (max) CURTISSWRIGHTDS.COM The Parvus® DuraCOR® 312 is an ultra-small form factor (USFF) modular mission computer built around the high-performance, yet power efficient NVIDIA® Jetson™ TX2i “supercomputer on-a module” integrated in a miniature rugged chassis with MIL-grade high-density connectors. Combining powerful NVIDIA Pascal™/CUDA-core GPU signal processing with 64-bit Arm v8 heterogeneous multi-processing (HMP) for size, weight, power and cost (SWaP-C) sensitive mobile, airborne, ground, manned and unmanned vehicle and sensor platforms, the unit integrates a massively parallel, many-core architecture boasting one of the highest computing FLOPS-per-watt architectures on the market. Thanks to the unit’s Pascal GPU architecture (supporting Max-Q and Max-P dynamic energy profiles), larger memory bandwidth, and support for CANbus, the DuraCOR 312 can deliver up to twice the performance or power efficiency of TX1-based systems together with native vehicle bus interfaces. The unit also deliver an unparalleled modular system design, boasting multiple Mini-PCIe I/O card slots, high speed M.2 internal storage, removable SATA Flash SSD capabilities, and an aerospace-grade power supply supporting 50ms power hold-up in a fanless IP67-rated mechanical package designed for wide temperatures and harsh shock and vibration, along with ECC memory for mitigation against single event upsets at high altitudes. • Rugged IP67 chassis with micro-mini MIL-performance circular connectors • Modular I/O architecture: M.2 and Mini-PCIe I/O card slots (for storage, avionics, and vetronics I/O scalability) • Multiple rugged Flash storage options: eMMC + M.2 / removable 2.5” SATA SSD • 28 VDC MIL-1275/704/DO-160 power supply for aircraft and ground vehicles; optional 50 ms power hold-up • Qual testing for extreme MIL-STD-810G/DO-160 thermal, shock, vibration, altitude, humidity; also MIL-STD-461F/DO-160G EMI/EMC Applications • In-vehicle and airborne rugged mission computing and sensor integration • High-performance embedded computing (HPEC), general-purpose graphics processing and artificial intelligence (AI) • SWaP-sensitive C4ISR autonomous vehicles, ISR, EW and targeting systems

Size: ~39 in³ volume (approx) Weight: < 1.5 lb (< 0.68 kgs) Power: <15W • Rugged IP67 chassis with micro-mini MIL-performance circular connectors Modular I/O architecture: up to three slots for PCIe Mini-Cards (for add-on I/O) • Rugged solid-state data storage (mSATA / microSD card / removable 2.5” SATA SSD) • Wide voltage input MIL-1275/704/DO 160 power supply for aircraft and ground vehicles; optional 50ms power hold-up Extreme MIL-STD-810G/DO-160 thermal, shock, vibration, altitude, humidity; also MIL-STD-461F/DO-160G EMI/EMC Applications • Rugged embedded PC computing, sensor integration, autonomous vehicle control • Low-power, multi-core vetronics controller / processor based on Intel architecture

SWaP-optimized signal processor • 4 High-performance tuner channels + 20 MHz to 6 GHz + 40 MHz IF passband • Intel Xeon D Octal Core DSP + 410 GFLOPs with AVX2 • Xilinx Kintex-7 410T FPGA processor + User Programmable - PCIe/GTP • High bandwidth I/O options + 1 and 10 Gigabit Ethernet, USB • MIL-STD-810/MIL-STD-461 qualified Applications • Signal Intelligence • Electronic Warfare • Electronic Support Products included in the system: • MPMC-9323 Chassis Enclosure • SP-8344 Multi-Channel Tuner • VPX3-482 CHAMP-XD1 DSP • XF07-523 Xilinx Kintex-7 FPGA • PSU3-THOR Power Supply • XMC-651 Ethernet Switch (opti

・AMD Radeon™ E4690 GPU up to 600 MHZ 　　・512 MB of GDDR3 memory up to 700 MHz 　　・8x PCI Express® (PCIe) 2.0 interface ・Dual independent video output channels out of: 　　・2x digital HD-SDI (SMPTE-292M) 　　・2x single link DVI or 1x dual link DVI 　　・2x analog- PAL, NTSC, STANAG 3350 B/C, RGBHV ・Dual independent video input channels out of: 　　・2x digital HD-SDI (SMPTE-292M) or 　　・2x analog- PAL, NTSC, STANAG 3350 B/C ・Safety Certifiable drivers (up to DO-178C level A) - OpenGL® SC 1.0 for VxWorks® 653 v2.4.0.1 AMP ・None certifiable drivers - OpenGL SC 1.0 for VxWorks 6.9 SMP ・Standard conformal coating is acrylic ・Available as a 0.85” pitch conduction-cooled -40 to +71ºC module ・DO-254 Artifact Kit available to support DAL C ・DO-178 Artifact Kit available to support DAL A

・3U VPX form factor, complies with OpenVPX™/VITA 65 standards ・Fully Managed or Unmanaged 　　・CLI (industry standard), Web, SNMP Interfaces 　　・Extensive MIB support ・24 x 1GbE SerDes ports (IEEE 802.3) ・2 x 10GbE uplink/stacking ports (XAUI) IEEE 802.3ae ・Rear Transition Module (RTM) with SFPs for 1GbEand Infiniband connectors for 10GbE 　　・Supports 1000MB/s SerDes 　　・Supports 1000Base-T copper 　　・Supports 1000BaseSX optics 　　・Supports 10GbE XAUI copper ・Supports 9.5K Jumbo frames ・Declassification capability ・Fast boot with extensive protocols support ・Management ports 　　・Serial RS-232 port for out of band management 　　・In-band GbE management support 　　・Out of band 10/100 software debug port ・High performance Layer 2/3+ switching/routing software 　　・Wire-speed IPv4/v6 support 　　・Extensive IETF RFCs supported 　　・Switching, VLANs, Routing, Multicasting, Tunneling 　　・Port mirroring, flow control, QoS and traffic shaping using CoS 　　・SSH, SSL, Secure memory erase ・Extensive Built In Test (BIT) support 　　・Power-up, Initiated, and Continuous BIT ・IPMI capable 　　・Health Monitoring (voltage, current, temperature sensors) ・Field upgradeable software ・Air-cooled and Conduction-cooled versions
