・OpenVPX™ (VITA 65) profile MOD6-PAY- 4F1Q2U2T-12.2.1-11, VPX REDI (VITA 48 option) ・Three user-programmable Xilinx Virtex-7 FPGAs (585T or X690T), each with: 　　・4 GB DDR3L SDRAM in two 64-bit banks 　　・36 MB QDRII+ SRAM in two 36-bit banks 　　・Three or Four 10.3 GHz 4-lane high-speed serial links to the backplane 　　・Eight or twenty LVDS pairs to the backplane ・Two FMC interfaces with 80 differential signal pairs ・Onboard PCIe Gen3 switch ・Onboard SRIO Gen2 switch ・Xilinx ZYNQ FPGA with Dual ARM Cortex A9 processor 　　・1 GB DDR3L SDRAM 　　・256 MB application flash ・Multi-board synchronous clock ・FXTools BSP and FPGA design kit with highly-optimized IP Blocks, development environment, reference designs, scriptable simulation test benches and software libraries VxWorks® and Linux® variants available ・Continuum IPC – inter-processor communications middleware available ・Backplane I2C/IPMI control for power on/off card and sensor information ・VITA 48 1” pitch format ・Ruggedization levels 　　・Level 0 (Commercial) 　　・Air-cooled level 100 　　・Conduction-cooled level 200

・Form Factor 　　・3U VPX backplane ・Mechanical 　　・baseplate cooling 　　・Volume optimized 　　・9.3” x 5.5” x 4.9” (LWH) 　　・14.5 lbs (fully populated) ・Standard Configuration 　　・(1) VPX3-1256 3U OpenVPX SBC 　　　・Intel® Core™i7 Quad Core 　　　・8 GB DDR 　　　・8 GB Flash SSD 　　・(1) VPX3-491 3U OpenVPX GPU Digital Signal Processor 　　　・NVIDIA® Fermi GPGPU 　　　・240 cores 　　　・2GB GDDR5 　　・(2) MilCAN offload controllers 　　・(1) Spare slot for VPX SSD ・Power Supply 　　・28 (17.5-32) VDC input 　　・DEF-STAN 61-5 Part 6, Issue 6

製品カテゴリ 筐体 フォームファクタ CompactPCI ・Full range of sizes from 3U x160 mm and 6U x 160 mm to 9U x 400 mm Compatible with VME, VXI, VME64x, OpenVPX and CompactPCI (cPCI) ・Silver-filled elastomeric EMI gaskets eliminate problems associated with competitive metal gaskets (i.e. no sharp edges, no snags) ・Air dams may be located on the upper or lower edges, blocking the airflow in and out of the empty slot ・Front panels provide the system with an EMI seal (VME64x, OpenVPX and CompactPCI® versions) as well as a finished appearance and easy maintenance ・Contain provisions for mounting internal hard drives

製品カテゴリ GPGPU フォームファクタ OpenVPX 3U VPX module VITA 46.0 •MXM GPGPU form factor •Multi source MXM module allows customers to select different GPGPU options •Support for PCIe Gen4 x16 lanes (module could run at PCIe Gen1, 2, and 3)

Intel Core i7 Broadwell 5th Gen processor Quad-Core (8-thread) i7 with Turbo Up to 16 GB DDR3L at 1600 MT/s supporting 25.6 GB/s Up to 32 GB SATA NAND flash Supports XMC expansion mezzanine Available in air-cooled and conduction-cooled versions Supports Linux (Fedora and Red Hat Enterprise Linux (RHEL)), VxWorks, Microsoft Windows Embedded

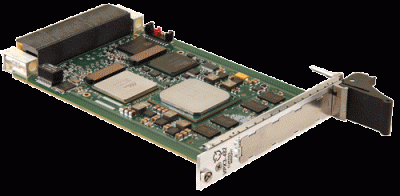

Intel Xeon D 8-Core D-1539 (410 GFLOPS @ 1.6 GHz) or 12-Core D-1559 (576 @ 1.5 GHz) Extended operating temperature Intel eTEMP SKUs PCH integrated in Xeon D SoC Native dual KR 10 Gigabit Ethernet ports 16 to 32 GB DDR4 @ 2133 megatransfers per second with ECC (34 GB/s aggregate) SSD – SATA Gen2, NAND Flash, 16 or 32 GB XMC PCIe up to Gen3, designed for up to 25W thermal dissipation PCIe Gen3 on 3U OpenVPX data plane with switch Core Function FPGA with IPMI 8-lane PCI Express® (PCIe) Gen3 interface to data plane Serial ATA (SATA) controllers – up to 3 ports USB EHCI host controllers – up to 3 ports, USB 2.0/USB 3.0 Conduction and air-cooled Trusted Computing features, including TrustedCOTS protections and support for Wind River Titanium Security Suite OS support: CentOS Linux®, Red Hat® Enterprise Linux, Wind River VxWorks 7.0, and others. Contact Curtiss-Wright for more information. Communications support via MPI/OFED OpenHPEC Accelerator Suite with Dolphin SuperSocket over PCIe Software Wind River Titanium Security Suite Supports General Dynamics SignalEye AI Software for automated RF signal classification

Intel Core i7 “Haswell” 4th Gen processor Quad-Core (8-thread) i7-4701EQ at 2.4 GHz with Turbo Up to 16 GB DDR3L at 1600 MT/s supporting 25.6 GB/s Up to 32 GB SATA NAND flash Supports XMC expansion mezzanine Available in air-cooled and conduction-cooled versions Supports Linux (Fedora and Red Hat Enterprise Linux (RHEL)), VxWorks, Microsoft Windows Embedded

NXP QorIQ P4040/4080 Communications Processor with eight Power Architecture processor cores, high-performance datapath acceleration logic, network and peripheral bus interfaces required for mil/aerospace applications 8 E500MC cores at up to 1.5 GHz Memory: Up to 8 GB DDR3 SDRAM with ECC controlled by dual 64-bit controllers 8512 MB NOR flash 8 GB onboard NAND flash 512 KB FRAM I/O: (3) Gigabit Ethernet interfaces (optional dual 1000BASE-X) (4) asynchronous EIA-232 serial ports and up to (4) sync/async EIA-232/422/485 serial channels (2) SATA, (2) USB 2.0, (14) DIO, (16)DIFFIO, (2) 1553 Fabric Interconnect Ports One PMC/XMC sites supporting parallel PCI or PCI Express, P64S + X12D One x8 PCIe XMC site with full complement of XMC I/O, X8D+12D+38S One 64-bit PMCs on independent PCI buses Software Curtiss-Wright U-Boot firmware providing a comprehensive suite of system debug, exerciser, and updated functions, BIT, and non-volatile memory sanitization functions Wind River VxWorks 6.x SMP Wind River Linux 4.x INTEGRITY available from Green Hills Software LynxOS-178B and LynxOS 7 available from Lynx Software Technologies MILS 2.1 available from Wind River Additional Features Designed for military harsh-environment applications, both air- and conduction-cooled Second generation VPX card in Curtiss-Wright's popular 18x series of VPX single board computers VPX/VPX-REDI formats backwards compatible with Curtiss-Wright's VPX6-185

製品カテゴリ CPUボード フォームファクタ OpenVPX Dual processor Xeon D 8-core D-1539 (820 GFLOPS @ 1.6 GHz total) or 12-core D-1559 (1152 GFLOPS @ 1.5 GHz total) Extended operating temperature Intel eTEMP SKUs PCH integrated in Xeon D SoC Four ports of 40G/10G Ethernet or DDR/QDR/FDR10 InfiniBand on OpenVPX data plane Native dual KX 1 GigE or KR 10 GigE ports on OpenVPX control plane 16 to 32 GB DDR4 @ 2133 megatransfers per second per Xeon D socket (68 GB/s aggregate) XMC PCIe up to Gen 3, designed for up to 25W thermal dissipation Dual x16 PCIe Gen 3 on OpenVPX expansion plane with switch Core Function FPGA with IPMI Conduction and air-cooled, contact Curtiss-Wright for Air-Flow Through (AFT) options TrustedCOTS Up to 4 ports USB 2.0/USB 3.0 SSD – SATA Gen2, NAND Flash, 16 or 32 GB, one per processor node Up to 6 SATA ports 4 x temperature sensors OS support: CentOS Linux®, Red Hat® Enterprise Linux®, Wind River® VxWorks® 7 (SR0600). Contact Curtiss-Wright for more information. OpenHPEC Accelerator Suite VISPL and Vector Match/DSP libraries Communications support via MPI/OFED

製品カテゴリ CPUボード フォームファクタ OpenVPX Powerful general-purpose SBC with NXP QorIQ Octal Core P4080 @ 1.2 GHz Memory Up to 8 GB DDR3 SDRAM controlled by single or dual 64-bit controllers, with ECC 256 MB NOR flash 8 GB NAND flash (expandable) 512 KB FRAM I/O (2) 10/100/1000 Ethernet ports (1000-X capable) (1) XMC site, x4 PCIe Gen2 (2) RS-232 and up to (2) RS-422 asynchronous serial channels, sync capable, SLDC (1) SATA channel and (4) DIO, (2) USB (with 5020 or 3041) Fabric Interconnect Ports Fabric Ports configurable as: Dual 4-lane PCI Express Gen2 fabric ports, or Eight 1-lane PCI Express Gen2 ports Software Green Hills INTEGRITY LynxOS VxWorks 6.9 BSP Curtiss-Wright U-Boot providing a comprehensive suite of system debug, exerciser, and update functions, BIT, and non-volatile memory sanitization function Additional Features Designed for rugged, rugged embedded and military/aerospace applications, both air- and conduction-cooled VPX/OpenVPX format with support for 8-slot profiles Support for Curtiss-Wright TrustedCOTS Support for NXP's Trusted Boot
