The Elma BKP6-CEN10-11.2.6-3 6U OpenVPX backplane comes in a
Dual Star centralized routing topology with two switch slots and four
Fat Pipes to each slot. The control plane is also a Dual Star topoloy
with two Ultra Thin pipes to each slot. The expansion plane connects
adjacent slots with double Fat Pipes in a daisy chain topology. The
data plane has Fat Pipes available and the control plane has Thin
Pipes that can be assessed from an RTM or via cables.
The backplane offers 3.125 to 6.250 Gbauds/ performance in one
PCB. This design provides maximum performance while saving you
money.
Features
ELMA
• Compliant to ANSI/VITA 65-2012 and ANSI/VITA 46.0-2013
Backplanes
• 1.0” slot pitch
• Dual Star routing topology
• High-speed Velox connectors
• Rugged Eurocard form factor in 6U height
• Provides built in ESD ground protection in every slo

Features

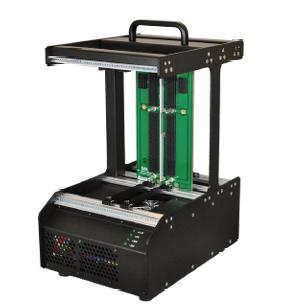

• 2-slot test & development platform for 3U and 6U VPX and OpenVPX™ boards
• Each slot can be configured independently for power requirements
• 1.6” slot pitch accommodates wider modules compatible with VITA 48.5 (air
  flow-through), and provides easy access to components on either side of boards
• More than two modules may be interconnected with additional 2-slot backlanes
• Enables use of standard VPX RTM modules and access to J1 high speed signals
• Chassis power input: 90-264 VAC autoranging, total power 700 watts
• High performance cooling fans
• Aluminum construction with scratch-resistant black painted finish
• Built-in Voltage Monitor with green LEDs for bus voltages compliance
• Top handle for ease of portability, desktop feet on bottom

Description
Designed to meet VITA 65, the 6-slot OpenVPX features a data plane
with 1 Fat Pipe on each slot routed to the switch slot in slot 6. The conrol
plane features an Ultra Thin Pipe on each slot routed to the switch slot.
This backplane does not have an expansion plane.
Features
• Compliant to the VITA 65 Standard.
• Uses the rugged 3U-160 Eurocard form factor
• High-speed EPT Velox connector
• Provides built in ESD ground protection in every slot

DESCRIPTION
The Elma CMFF Chassis is an off-the-shelf 3U SOSA and CMOS
alligned configurable and deployable chassis solution designed for
ground vehicles and ground combat environments. It is intended
for Integrated Command, Control, Computers, Cyber, Intelligence,
Surveillance, and Reconnaissance (C5ISR) and designed for ground
vehicle applications. The chassis meets the size, weight, power,
and connector, and electrical interface requirements outlined by the
Standard A-Kit Vehicle Envelope (SAVE)
The Chassis is compliant to CMOSS and aligned with SOSA
Technical Standard. This mission-ready chassis comes standard with a
7 slot backplane ready to accept SOSA aligned plug-in cards (PICs)
and VITA 62 power supply and is an ideal way to rapidly integrate a
deployable platform. The chassis ships with the backplane, a
chassis manager, a hold-up module, and a VITA 62 plug-in power
supply. All are SOSA aligned. A key feature is the USB-based mainte
nance port aggregator for simplified servicing.
The all-aluminum chassis incorporates military-grade components like
MIL- STD-38999 connectors, line filter, on/off and reset switches,
LEDs, circuit breakers, etc. It is EMC shielded to MIL-STD-461E. The
cooling fan is a military-grade, high-altitude fan that can operate under
extremely harsh temperature conditions. Custom options such as
different backplanes, dual power supplies, and different cabling are
available from the factory upon request.
Features
■ CMOSS / SOSA Aligned and SAVE compliant Chassis
■ Meets SAVE dimensional requirements of 9.3”(H) 15.9” (W)
x 16.1” (D) with 2”x4” notch / keep out space
■ Chassis dimensions allow space for cables and shock tray
within the envelope
■ Elma’s 7-slot OpenVPX backplane aligned with SOSA
profiles and CMOSS (1SVX306ARP-9K31)
■ Meets ARINC 404A and ANSI/VITA 48.2
■ Aluminum dip-brazed design to meet rugged environments
■ Power supply and line filter combination optimized to meet
MIL-STD-461
■ Tested to meet MIL-STD-810 and 641 and MIL-1275
■ Includes SOSA aligned chassis manager, a hold-up module
(50ms), and VITA 62 plug-in power supply
■ Front panel USB-based maintenance port aggregator

DESCRIPTION
The modular design of this Mini ATR platform allows for various con
figurations. The chassis can easily be scaled up or down while using
the same side walls. DC and AC power variations as well as custom
front I/O configurations are available. Elma also offers a wide selec
tion of backplanes in various architectures and has different milled
card cage sizes off-the-shelf.

■ Small form factor mini ATR-style chassis, natural convection
cooled is low weight, ideal for weight critical applications
(SWaP)
■
■ 3-slot backplane, 1in pitch to meet VITA 65 (OpenVPX) Back
plane Profile BKP3-CEN03-15.2.9-n accepts 3U OpenVPX
boards on a 1in pitch, according to VITA 48.2 (REDI) and
VITA 65 (OpenVPX)
■
■ Other backplanes can be accommodated: 3U CPCI, custom
■
■ Two sizes available; other sizes custom:
■
■ 1)133mm H x 175mm W x 311mm D (5.24in H x 6.89in
W x 12.24in D)
■
■ 2) 133mm H x 175mm W x 235mm D (5.24in H x
6.89in W x 9.25in D)
■
■ Advanced airflow design distributes air across external fins in
sidewalls
■
■ Optional plug-in power supply provides up to 350 W VDC;
AC versions also available
■
■ Option to accommodate 2.5in storage with drive tray
■
■ Custom I/O options including MIL-STD wiring and connectors

特長

• 3Uおよび6U VPXおよびOpenVPX™ボード用の2スロット・テスト＆開発プラットフォーム
• 各スロットは電源要件に合わせて個別に構成可能
• 1.6インチのスロットピッチは、VITA 48.5（エアフロースルー）互換の幅広モジュールに対応し、ボードの両側のコンポーネントに容易にアクセスできます
• 追加の2スロット・バックレーンを使用することで、2つ以上のモジュールを相互接続できます
• 標準VPX RTMモジュールの使用とJ1高速信号へのアクセスが可能
• シャーシ電源入力：90～264VACオートレンジ、合計電力700W
• 高性能冷却ファン
• 傷に強い黒色塗装仕上げのアルミニウム製筐体
• バス電圧コンプライアンス用の緑色LEDを備えた電圧モニターを内蔵
• 持ち運びに便利な上部ハンドル、底面にはデスクトップ脚を装備

Developed in alignment with the SOSA Technical Standard as a 3U Data/Control Plane (6F) Ethernet Switch • Fabric100TM Ecosystem Support for 100G Ethernet in a SOSA-aligned form factor • Independent Data Plane and Control Plane switches for dual domain security separation + Data Plane support for 10G, 25G, 40G, 50G, and 100G Ethernet + Control Plane support for 1G and 10G Ethernet ports • Optional front-panel optical ports for both Data and Control Planes • Multi-layer L2 switching and L3 routing • TSN support on Control Plane

24 ports of IEEE 802.3 1000BASE-T Gigabit Ethernet • Fully managed multi-layer switching with CLI, SNMP and web-based interfaces • Extensive networking feature set for segmentation, filtering, QoS and traffic management • Optional optical interfaces • Supports services XMC for routing, security or network services • Available in standard air-cooled and conduction-cooled rugged form factors Applications • Pin-compatible replacement for VPX6-684 Ethernet Switches • Standards-based connectivity for VPX embedded computing systems • Robust and secure Ethernet for in vehicle networks

Hybrid PCIe and 10G Ethernet Switch + 6F6U and 6F8U profile options for OpenVPX systems and systems aligned with the SOSA™ Technical Standard • PCIe 3.1 data or expansion plane switch with 24 lanes to the VPX backplane • Flexible PCIe configuration supporting x8, x4, and x2 links + Up to six separate root partitions for multi-host applications + Non-transparent bridging (NTB) available for any ports supporting host-to-host communications • 10G Ethernet control plane switch + Up to 8 ports of 10GBASE-KR + Up to 2 ports 1000BASE-T + 2 ports SFP+ on front panel of air-cooled modules • XMC site for hosting PCIe-connected mezzanine + Ideal for expansion using storage, GPU, or FPGA co-processors without I/O requirements + Can also support an Ethernet routing, network services, or security mezzanine

Developed in alignment with the SOSA Technical Standard with variants meeting both the 3U I/O Intensive and Payload profiles Fabric100™ Ecosystem Support for 100G Ethernet in a SOSA aligned form factor Intel 13th Gen “Raptor Lake” 14-core processor Hybrid mix of P-cores and E-cores for maximum processing efficiency Up to 64 GB DDR5 with ECC Up to 480 GB NVMe onboard SSD storage High Speed Connectivity 100G Ethernet Data Plane PCIe Gen4 Expansion Plane 10G Ethernet Control & Data Plane with TSN Supports one XMC mezzanine I/O Intensive SBC adds Base-T Ethernet, USB, SATA, UARTs, DIO DisplayPort graphics interface XMC I/O to VPX backplane
