Provides a high-assurance accurate navigation and timing solutions in GPS denied environment • Acts as system wide timing master by providing reliable clock signals • Provides Atomic clock backed NTP/PTP timing for distributed network use • Aligns with the SOSA Technical Standard to meet the 3U Radial Clock (timing) profile • Supports standard M-Code and SAASM GPS modules • Outputs: 11 Radial clock pairs of 10-125 MHZ 1PPS aligned • Supports external PNT sources over Ethernet • Ability to sync multiple VPX3-673As • A-PNT Software US Only Version • pntOS • Alternative RF Navigation • VICTORY Applications • Assured PNT • Radial Clock Distribution

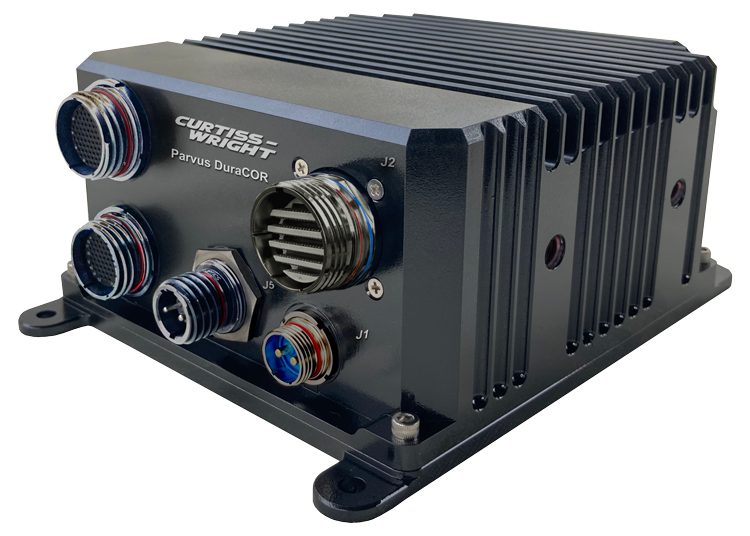

NVIDIA Jetson AGX Xavier Industrial SoM + 8-core ARMv8.2 CPU + 512-core CUDA-capable Volta GPU + 64 Tensor Cores, 2x DL Accelerators • SWaP-optimized form factor: + Small size: <150 in³ + Lightweight: <6 lb (2.72 kg) + Power: <50W (est) • Rugged IP67 fanless chassis with MIL performance circular connectors • Modular I/O architecture: M.2, PCIe104, and Mini-PCIe card slots (for storage, avionics, and vetronics I/O scalability) • Wide input MIL-1275/704/DO-160 power supply for aircraft and ground vehicles; optional 50ms power hold-up • Qual testing for extreme MIL-STD-810G/ DO-160 thermal, shock, vibration, altitude, humidity; also MIL-STD-461F/DO-160G EMI/EMC Applications • In-vehicle and airborne rugged mission computing and sensor integration • High-performance embedded computing (HPEC), general-purpose graphics processing (GPGU), and artificial

Intel Xeon W workstation-class processor with up to 128 GB ECC DDR4 memory 8-core (16-thread) W-11865MRE at 2.8 GHz with turbo up to 4.5 GHz Intel Iris® Xe GPU and AVX512 VNNI Low-SWaP IP67 rugged chassis with Mini PCIe and PCIe/104 I/O card expansion 2x 1GBASE-T ports with Time Sensitive Networking (TSN) Ethernet support; Optional 10GBASE-SR / BASE-T NIC Rugged removable 2.5” SATA or NVMe SSDs 28 VDC MIL-1275/704 and DO-160 power supply MIL-STD-810, DO-160, MIL-STD-461 qualification (EMI, thermal, shock, vibration, altitude, humidity, etc.) Applications Civil and military in-vehicle and airborne mission computing Fixed and rotary wing manned/unmanned aircraft Tactical ground vehicles Outdoor and underground platforms C4ISR technology refresh and LRU upgrades

• 6th gen Intel Xeon E3 v5 processor with 32 GB ECC DDR4 memory • Quad-core (8-thread) E3-1515M v5 at 2.8 GHz with turbo up to 3.7 GHz • Intel Iris Pro Graphics P580 GPU (GT4e) • Low-SWaP IP67 rugged chassis with Mini PCIe and PCIe104 I/O card expansion • Rugged removable 2.5” SATA SSD option (rated for 100K insertion cycles) • 28 VDC MIL-1275/704 and DO-160 power supply with transient protections and 50/200 ms hold-up, redundancy options • MIL-STD-810, DO-160, MIL-STD-461 qualification (EMI, thermal, shock, vibration, altitude, humidity, etc.) • Modular mechanical design with MIL DTL-38999 circular connectors Applications • Civil and military in-vehicle and airborne mission computing • Multi-core fanless x86 embedded processor for SWaP-sensitive platform • Fixed and rotary wing (un)manned aircraft • Tactical ground vehicles • Outdoor and underground platfor

Intel® Core™ i7 or Xeon® Processor • 28VDC Power input per MIL-STD-704 • FPGA-based ADCs and DACs • Data rates to 4 Gsps • Phase coherency across all channels • Auxiliary I/O options (1553, ARINC etc.) • Qualified to MIL-STD-810 and MIL STD-461 Products included in the system: • VPX3-1257, VPX3-1258 or VPX3-1259 SBC • VPX3-530 FPGA-based ADC/DAC • XCLK1 Clock Synch • PSU3-THOR Power Supply • RMC SSD

Flexible OpenVPX profiles for both legacy compatibility and new designs Variants available aligned with the SOSA Technical Standard as a 3U Data/Control Plane Ethernet Switch Fabric100™ Ecosystem Support for 100G Ethernet Low Power Ethernet switch offers non blocking line-rate performance– Flexible support for 1G, 10G, 25G, 40G, 50G, and 100G Ethernet Multi-layer L2 switching and L3 routing

Developed in alignment with the SOSA Technical Standard as a 3U Data/Control Plane (6F) Ethernet Switch • Fabric100TM Ecosystem Support for 100G Ethernet in a SOSA-aligned form factor • Independent Data Plane and Control Plane switches for dual domain security separation + Data Plane support for 10G, 25G, 40G, 50G, and 100G Ethernet + Control Plane support for 1G and 10G Ethernet ports • Optional front-panel optical ports for both Data and Control Planes • Multi-layer L2 switching and L3 routing • TSN support on Control Plane

Ethernet connectivity for OpenVPX and CMOSS/SOSA-Aligned systems • Fully-managed multi-layer L2 switching and L3 routing services, including multicast, QoS, IPv4 and IPv6, and security features • Configurable for multiple OpenVPX switch module profiles, including 2F24U, 8F, 6F8U, 4F16U and a SOSA-aligned 6F1U7U variant • Low-latency, high-throughput line-rate forwarding up to 320 Gbps • Support for Gigabit, 10 Gbps and 40 Gbps backplane Ethernet standards + Up to 32x 10 GbE or 8x 40GbE interfaces in a single VPX 3U slot • IEEE-1588 PTP transparent clock for high-precision system-level time synchronization

24 ports of IEEE 802.3 1000BASE-T Gigabit Ethernet • Fully managed multi-layer switching with CLI, SNMP and web-based interfaces • Extensive networking feature set for segmentation, filtering, QoS and traffic management • Optional optical interfaces • Supports services XMC for routing, security or network services • Available in standard air-cooled and conduction-cooled rugged form factors Applications • Pin-compatible replacement for VPX6-684 Ethernet Switches • Standards-based connectivity for VPX embedded computing systems • Robust and secure Ethernet for in vehicle networks

Hybrid PCIe and 10G Ethernet Switch + 6F6U and 6F8U profile options for OpenVPX systems and systems aligned with the SOSA™ Technical Standard • PCIe 3.1 data or expansion plane switch with 24 lanes to the VPX backplane • Flexible PCIe configuration supporting x8, x4, and x2 links + Up to six separate root partitions for multi-host applications + Non-transparent bridging (NTB) available for any ports supporting host-to-host communications • 10G Ethernet control plane switch + Up to 8 ports of 10GBASE-KR + Up to 2 ports 1000BASE-T + 2 ports SFP+ on front panel of air-cooled modules • XMC site for hosting PCIe-connected mezzanine + Ideal for expansion using storage, GPU, or FPGA co-processors without I/O requirements + Can also support an Ethernet routing, network services, or security mezzanine
